What makes a good convenience store layout?
A convenience store layout has two jobs that pull against each other. Customers on a quick visit want to find milk, a meal deal or a paper and get out fast. The shop wants them to see a bit more on the way. A good layout manages both: obvious routes to the essentials, with the things people did not plan to buy placed along the way.
Most layouts follow the same logic. Daily essentials and chilled drinks go towards the back, so customers walk through the shop to reach them. Food to go and impulse lines sit near the entrance and the till. Gondolas run front to back, so staff at the counter can see down every aisle.
The rules now shape the floor too. Larger stores in England cannot put less healthy food at checkouts, aisle ends or entrances, tobacco has to be kept out of sight, price labels have to meet tighter rules, and from October 2027 many shops will need space for drinks containers coming back.
The rules that shape a shop floor
Layout used to be about sales alone. These are the rules that now decide where some things can and cannot go.
Check your plan against each of these
- Less healthy food kept away from checkouts, queues, aisle ends and entrances, if your business has 50 or more staff and the store is 185 square metres or more (England)
- Tobacco kept out of sight of customers, in a closed unit or behind the counter
- Clear selling and unit prices on every shelf edge, promotions included
- Space for a drinks return point from October 2027, unless you are exempt
- Fire exits and escape routes kept clear, and aisles wide enough for disabled customers to get round
Rules still moving
The government has signalled that it may repeal the food placement rules in England, Wales and Scotland have their own versions, and the Tobacco and Vapes Act 2026 gives ministers powers to restrict how vapes are displayed. Check the current position before you finalise a plan.
Parallel gondola runs from front to back. The standard for convenience stores.
- Makes the most of the floor space
- Easy to find things and easy to restock
- Staff at the till can see down every aisle
- Aisle ends become strong promotional space
A main walkway that takes customers round the shop, with displays on both sides.
- Takes customers past more of the range
- Good for feature displays and seasonal space
- Needs more floor area to work
- Can frustrate customers who only want one thing
How to plan a layout
Work from the building inwards: fixed things first, then the shelving, then the products.
-
Measure and draw
Draw the floor to scale with doors, windows, columns, power points, drains and fire exits marked.
-
Place the fixed things
Chillers need power and room to release heat, and the till needs a view of the door. Place these before any shelving.
-
Lay the gondolas
Run them front to back from the till. Check every aisle against your minimum width and the escape routes.
-
Plan the shelf edge
Decide what goes where, bay by bay, and how prices will be shown and changed.
Layouts by type of shop
The principles are the same. The balance changes with the customer.
Grid layoutConvenience stores
Chillers at the back, food to go by the door, low gondolas so the counter can see everything. Leave room for a drinks return point if you will need one.
Gondola bays
Quick visitsForecourts
Most customers come in to pay for fuel. Put coffee, food to go and impulse lines on the route between the door and the till.
Food to go stations

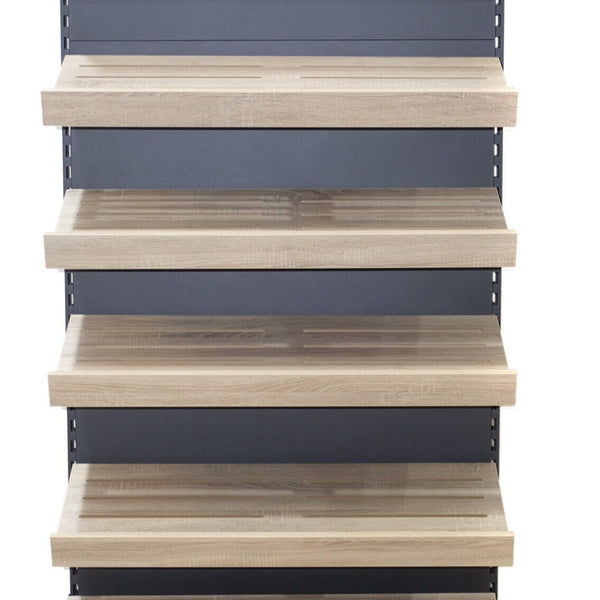

Loop layoutFarm shops and delis
Customers come to browse. A loop past timber shelving, bakery displays, fresh produce and counters works better than straight aisles.
Bakery and fresh displays

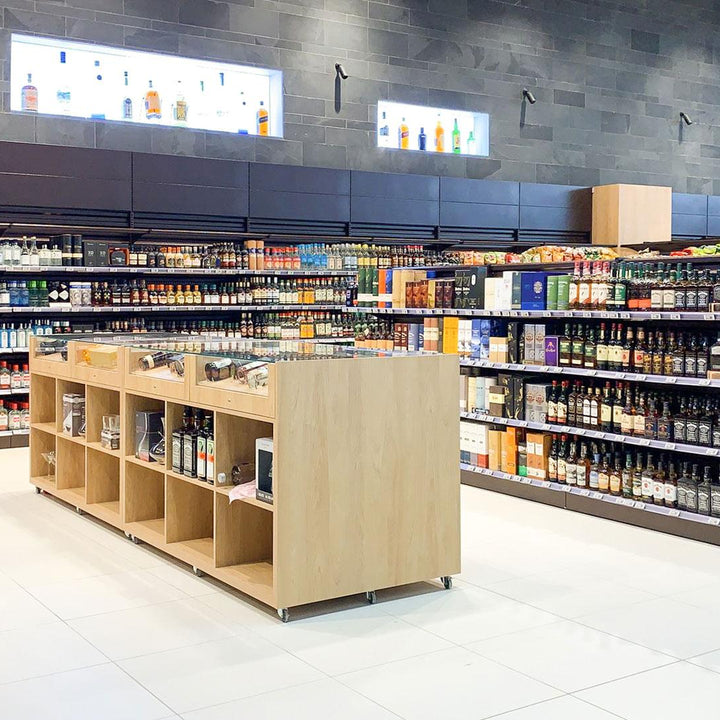

Wall-ledOff licences and specialist shops
Wall shelving carries most of the range, with low gondolas or feature units in the middle and promotions at the front.
Wall shelving
Choosing shelving for the layout
Gondola bays are the building blocks of most shop floors. They come in set widths, so a run is planned in bays and the plan becomes the order. Height decides the feel of the shop: low gondolas keep sight lines open in a small shop, taller ones carry more stock in a larger one.
Wall bays carry the range around the edge, and end bays turn each gondola run into promotional space. Accessories such as dividers, risers, baskets and ticket strips decide how the product actually sits on the shelf.
Then there is the shelf edge. Every bay needs clear selling and unit prices. In a shop where prices change often, electronic shelf labels keep the shelf and the till in step without re-ticketing.
-
Main aislesGondola bays
Free-standing double-sided bays, the building blocks of the shop floor.
See the range -
PerimeterWall shelving
Single-sided bays that carry the range around the edge of the shop.
See the range -
Till pointCheckouts and counters
Counters and checkouts for the front of the shop.
See the range -
Food to goFood to go stations
Units for hot drinks, snacks and grab-and-go near the entrance.
See the range -

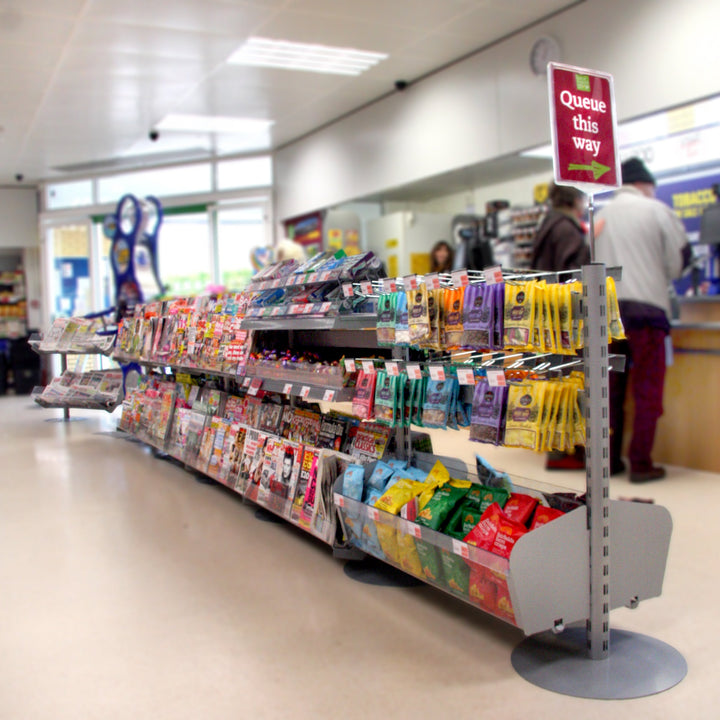

QueueQueue merchandising
Queue units that turn waiting time into selling space.
See the range -
Shelf edgeElectronic shelf labels
Prices that change from the back office, in step with the till.
See the range
We supply, we do not install. We will plan the bays and price everything you need. Fitting is carried out by your own shopfitter or staff.
Popular shelving
A few of the bays most convenience stores start from.
Common questions
What is the best layout for a convenience store?
For most convenience stores, a grid: gondola runs from front to back, chillers along the back wall, food to go and impulse lines near the entrance and the till. It uses the space well, it is easy to shop and staff at the counter can see down the aisles.
How wide should shop aisles be?
There is no single legal width for shop aisles. A common rule of thumb is at least 1.2 metres in the main aisles, and more where trolleys pass or queues form. Disabled customers must be able to get round, and fire escape routes must stay clear.
Can I put sweets and crisps by the till?
It depends on the size of the business and the shop. In England, businesses with 50 or more employees cannot place less healthy food within two metres of a checkout or queue, at aisle ends or near the entrance, in stores of 185 square metres or more. Smaller businesses and smaller stores are not covered. Wales and Scotland have their own rules.
Where should the chillers go?
Usually along the back or side wall. Milk and cold drinks are among the most common reasons for a visit, so putting them at the back takes customers past the rest of the shop. Chillers also need power and room to release heat, so check both before you plan around them.
How tall should gondola shelving be?
In a small shop, lower gondolas keep sight lines open so staff can see the whole floor from the counter. Larger shops often use taller bays to carry more stock. Wall bays are usually the tallest units in the shop.
Will you plan and fit my shop layout?
We plan and supply. Send us a floor plan and we will suggest a layout and a bay list and price it. Fitting is done by your own shopfitter or staff.
This guide is general advice, not legal advice. For the rules mentioned, see: ACS guidance on the HFSS regulations, Price Marking Order: government guidance on GOV.UK. Last reviewed October 2026
