MBT Warehouse protection Box Rail | Protection Rail

MBT Warehouse Impact Box Rail | Protection Rail

MBT Warehouse protection Box Rail is our most commonly used floor protection rail for back of house applications warehouses, cold rooms & trucking route corridors.

MBT Warehouse Impact Rail provides robust edge protection for loading bays, racking systems, and high-traffic warehouse areas. Engineered to absorb impact from forklifts, trolleys, and vehicles, this durable rail minimises damage to walls, columns, and fixtures whilst extending asset lifespan. Ideal for distribution centres, manufacturing facilities, and logistics hubs where equipment movement is frequent. Easy to install and maintain, it delivers cost-effective protection against costly structural repairs and downtime.

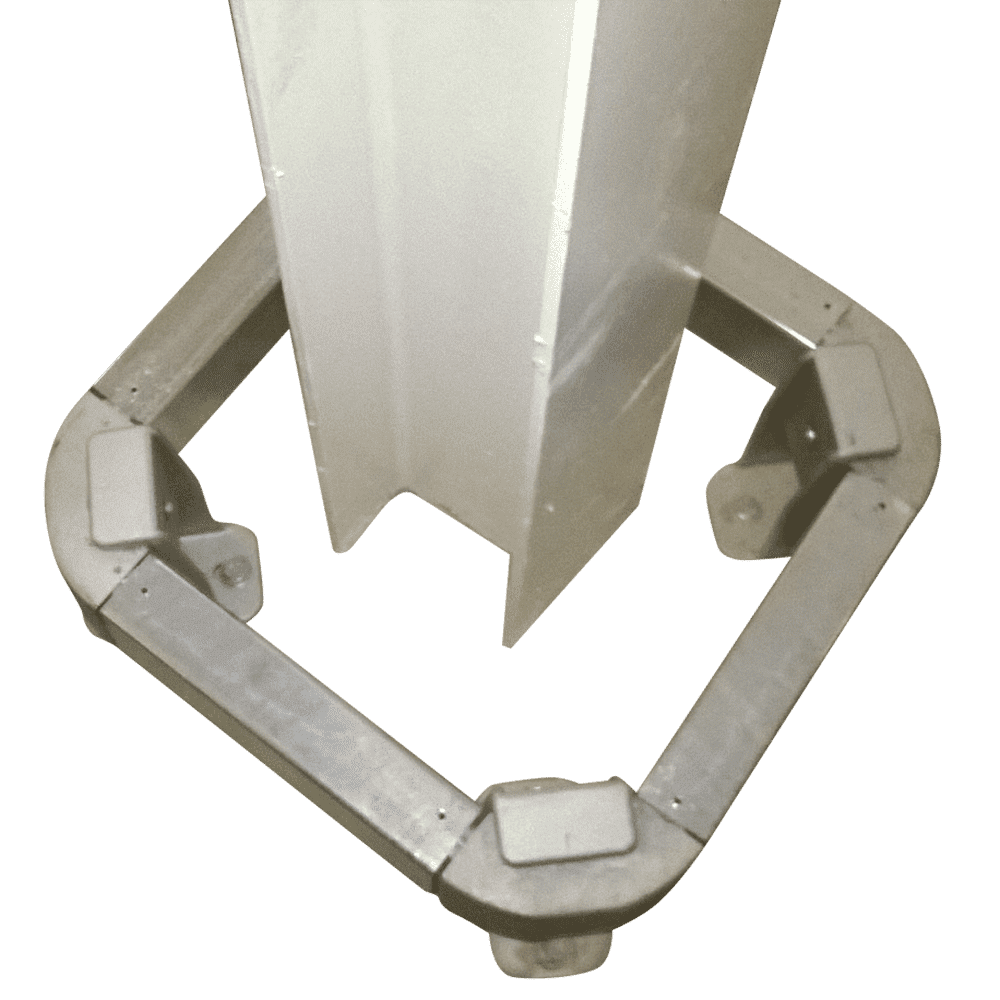

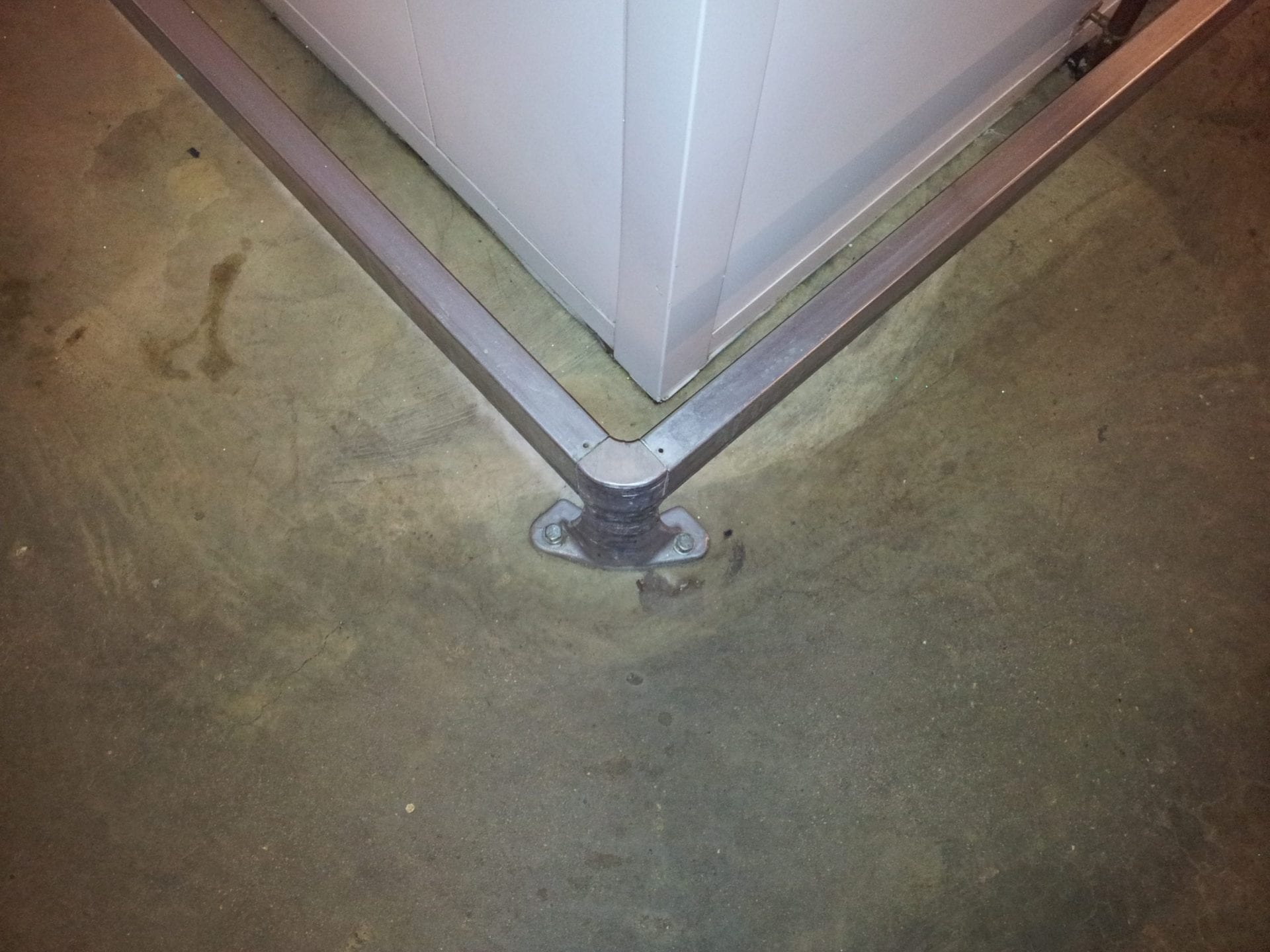

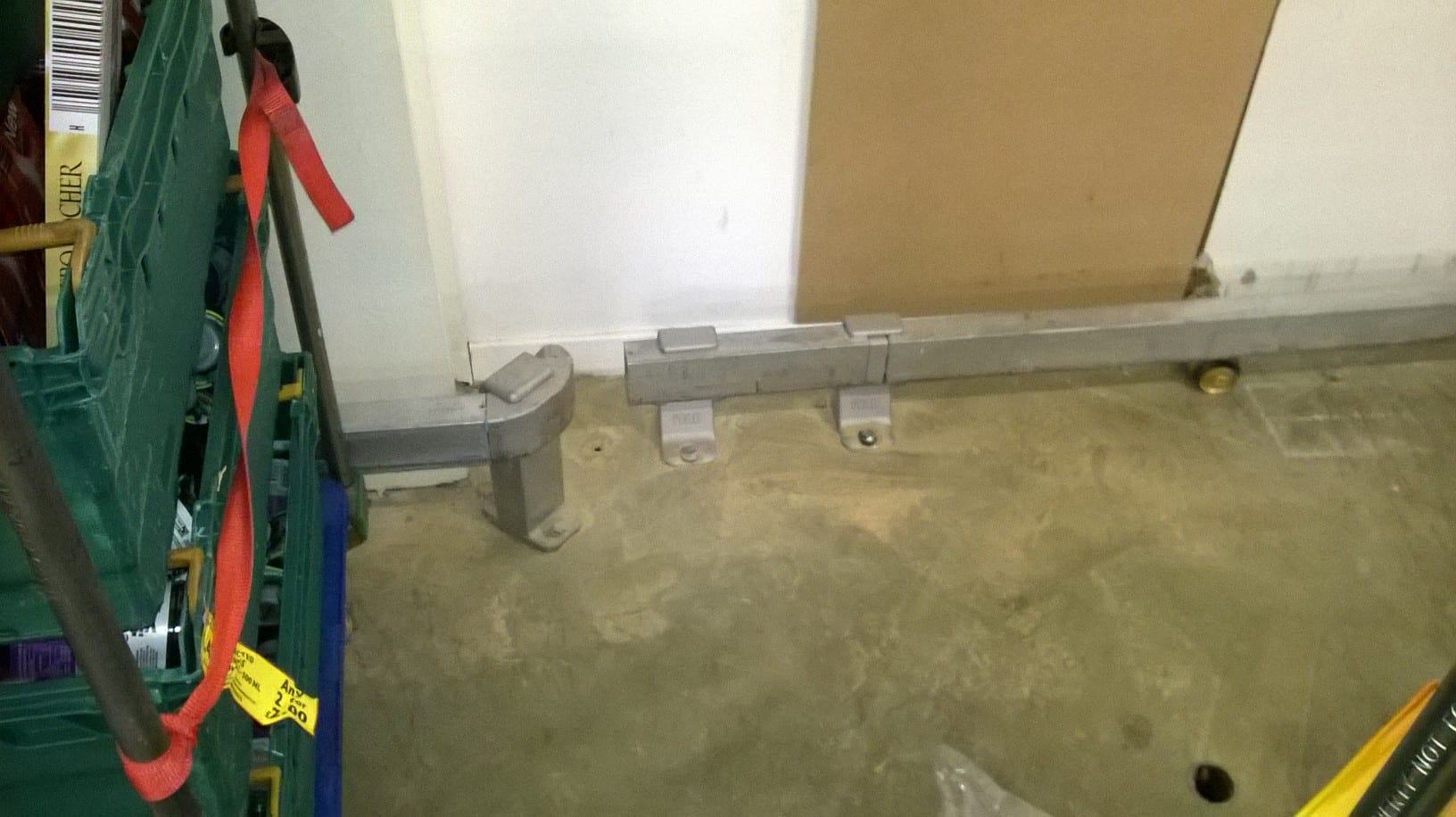

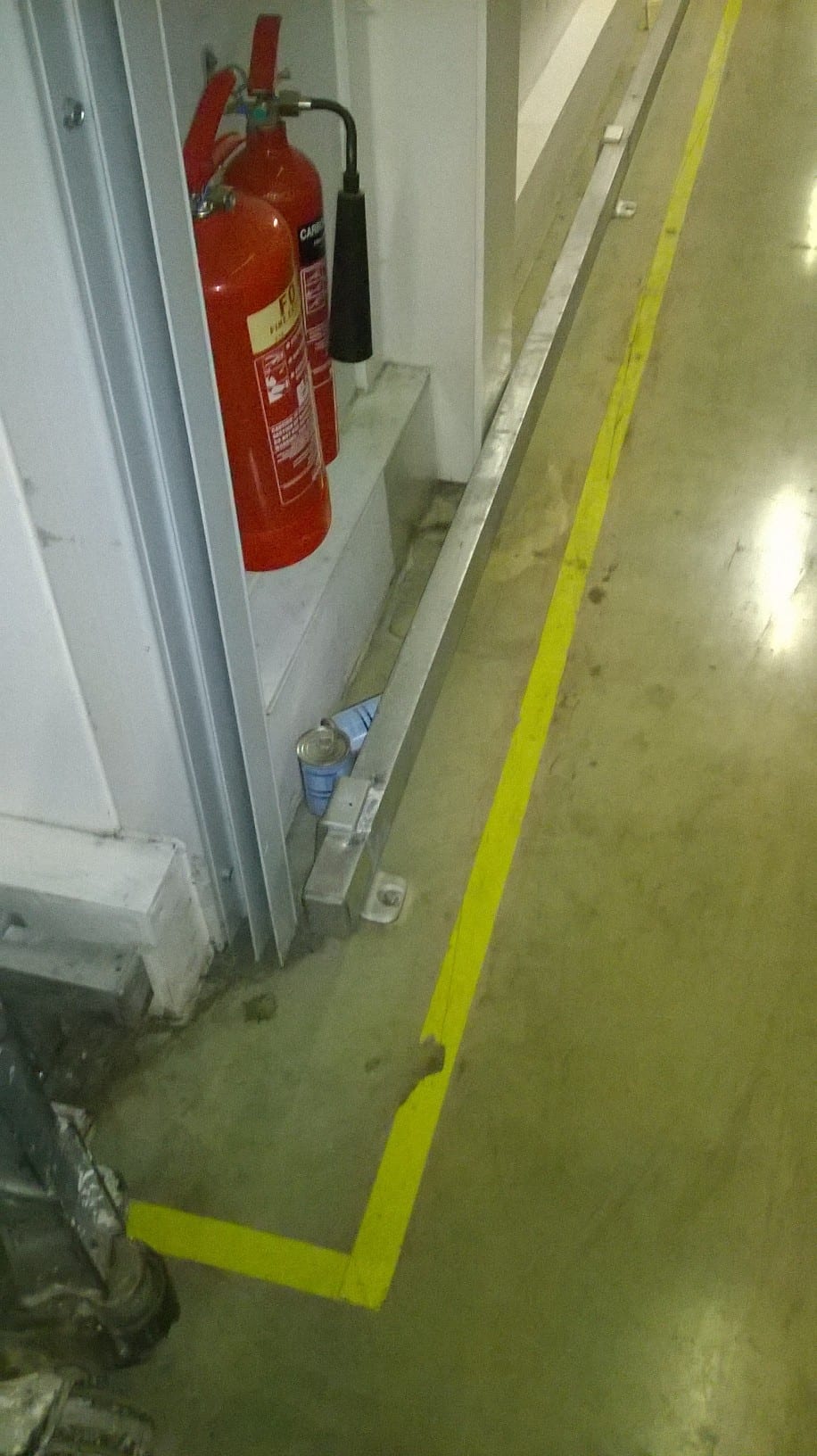

Our MBT Protection Rail (Modular type) has many applications for protecting property, equipment, walls and columns from low speed impacts from typical environmental hazards that are experienced in the back of house/warehouse of stores. MBT is designed to protect your property and reduce the risk of accidental damage. Vehicles and roll cages of all types and sizes reversing and manoeuvring around sites can cause damage to walls, loading decks and security fencing.

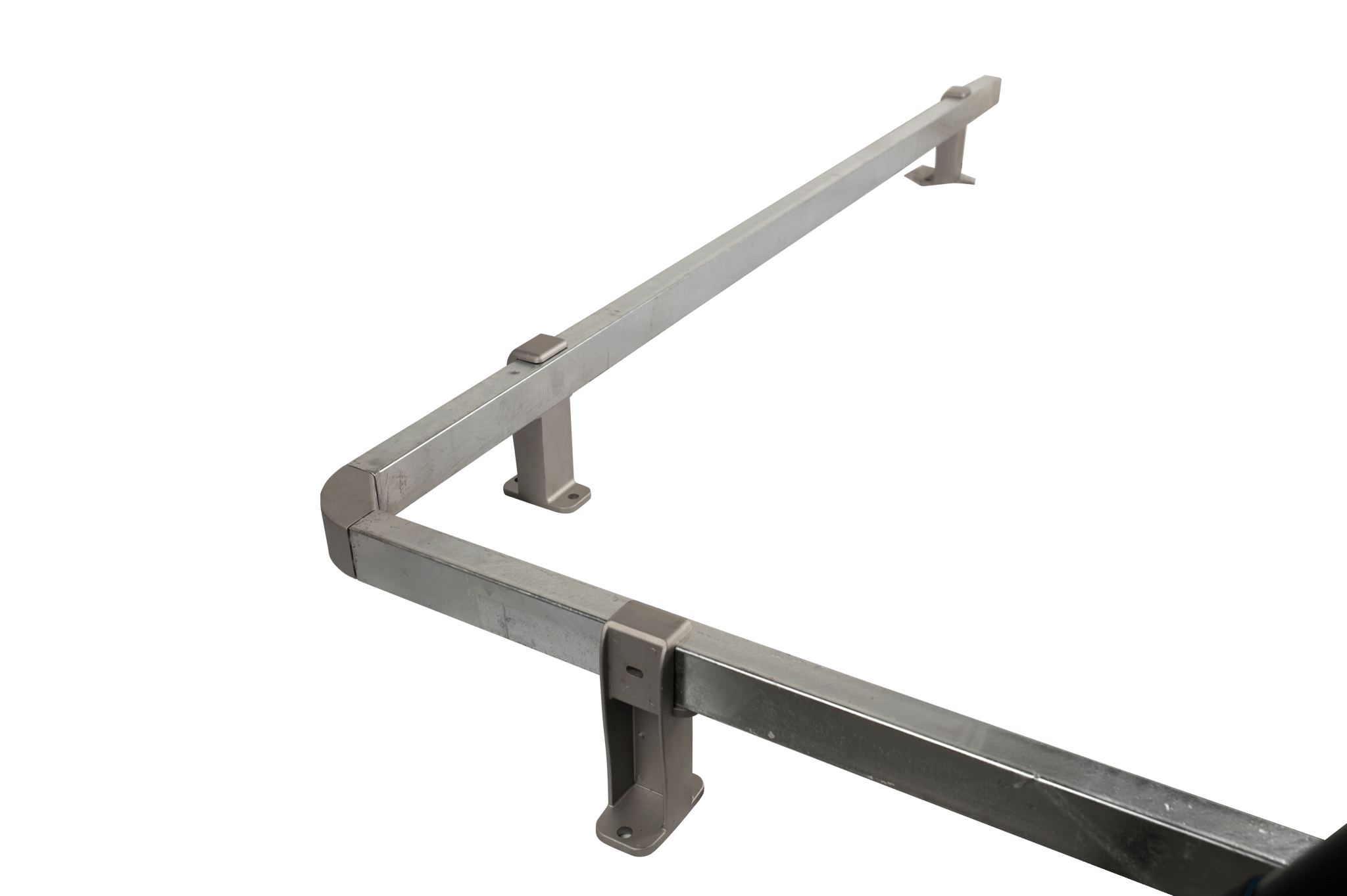

Galvanised, hot dipped finish for a tough service life with aluminium feet, ends and corners, this adaptable steel barrier system can be assembled to any length and in unbroken lines; can be terminated for access points and of course go around internal or external corners to suit your site.
Our MBT is one of our most robust and versatile products. Suitable for both internal and external use, this modular galvanised steel rail provides practicality with durability.
The modular nature of the product allows for easy planning and installation and can be adapted to the most challenging briefs.

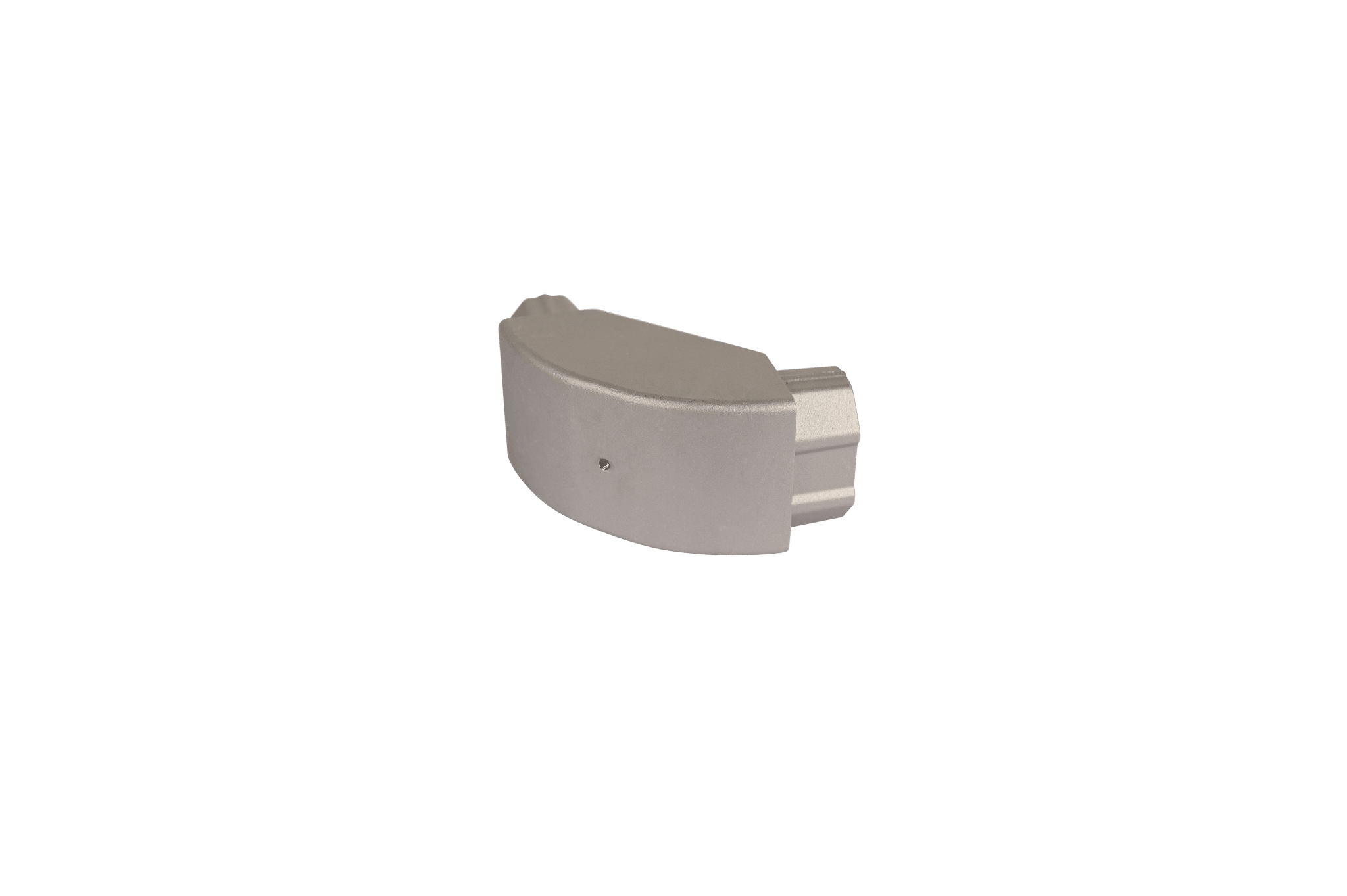

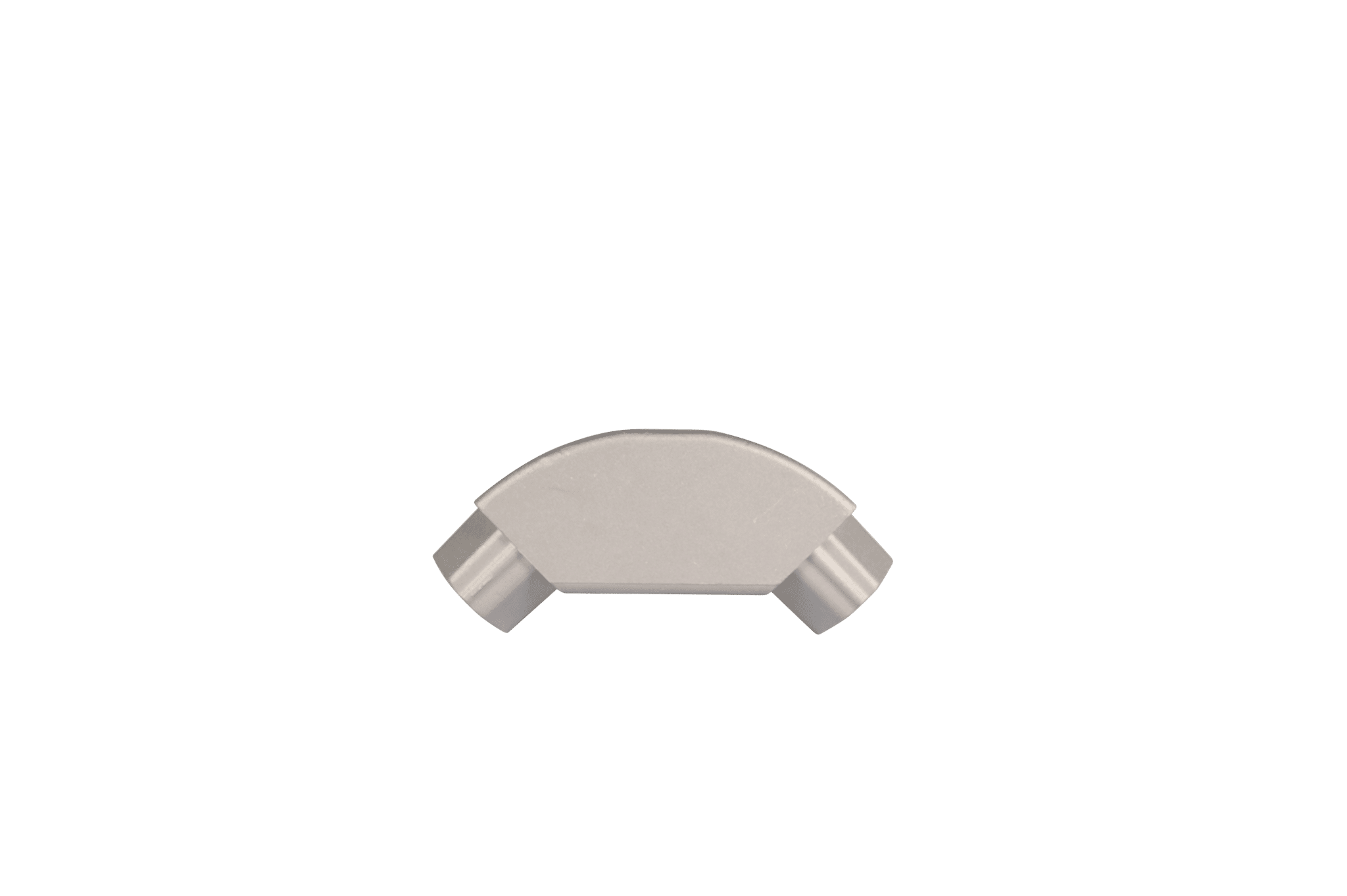

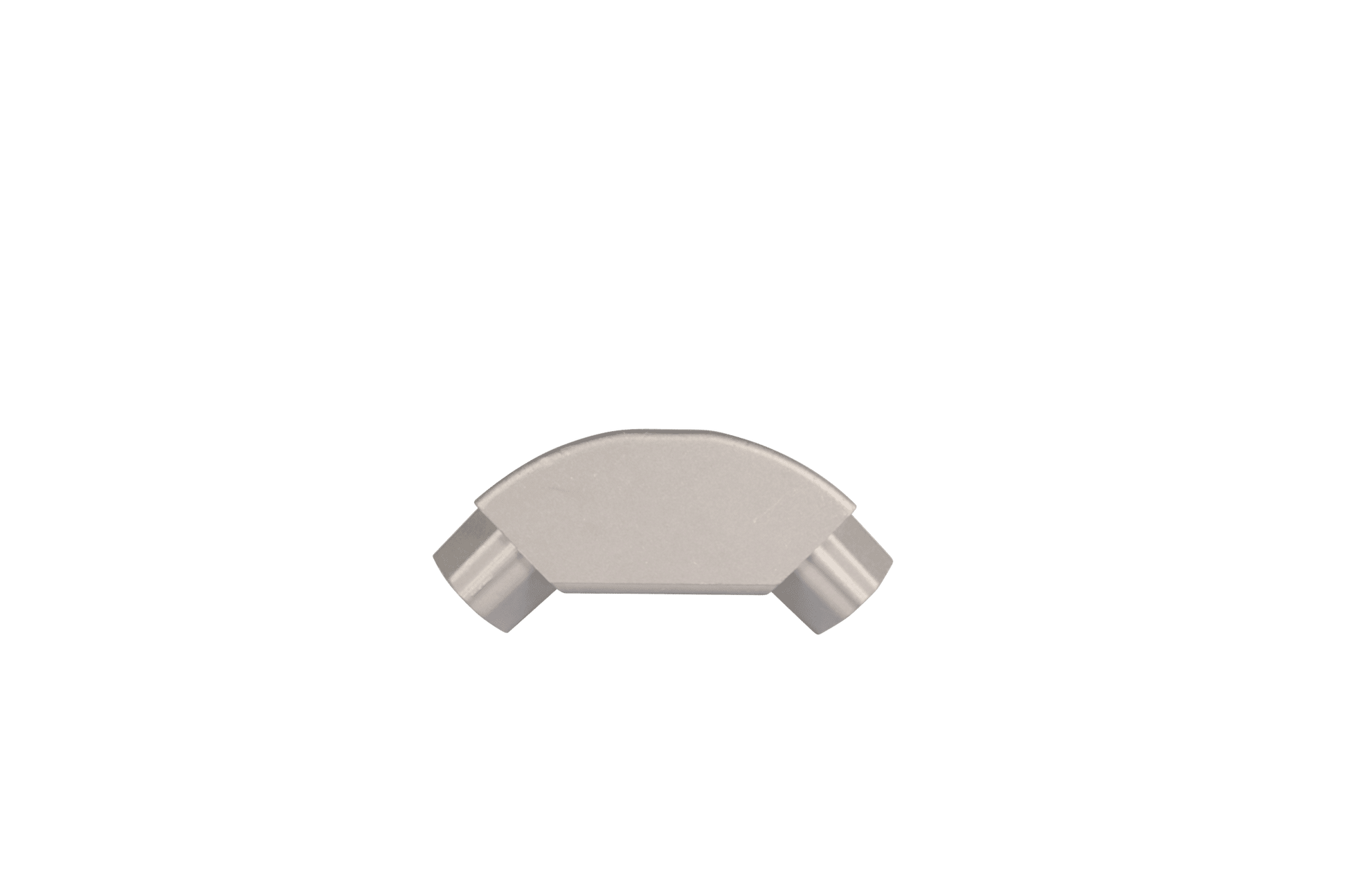

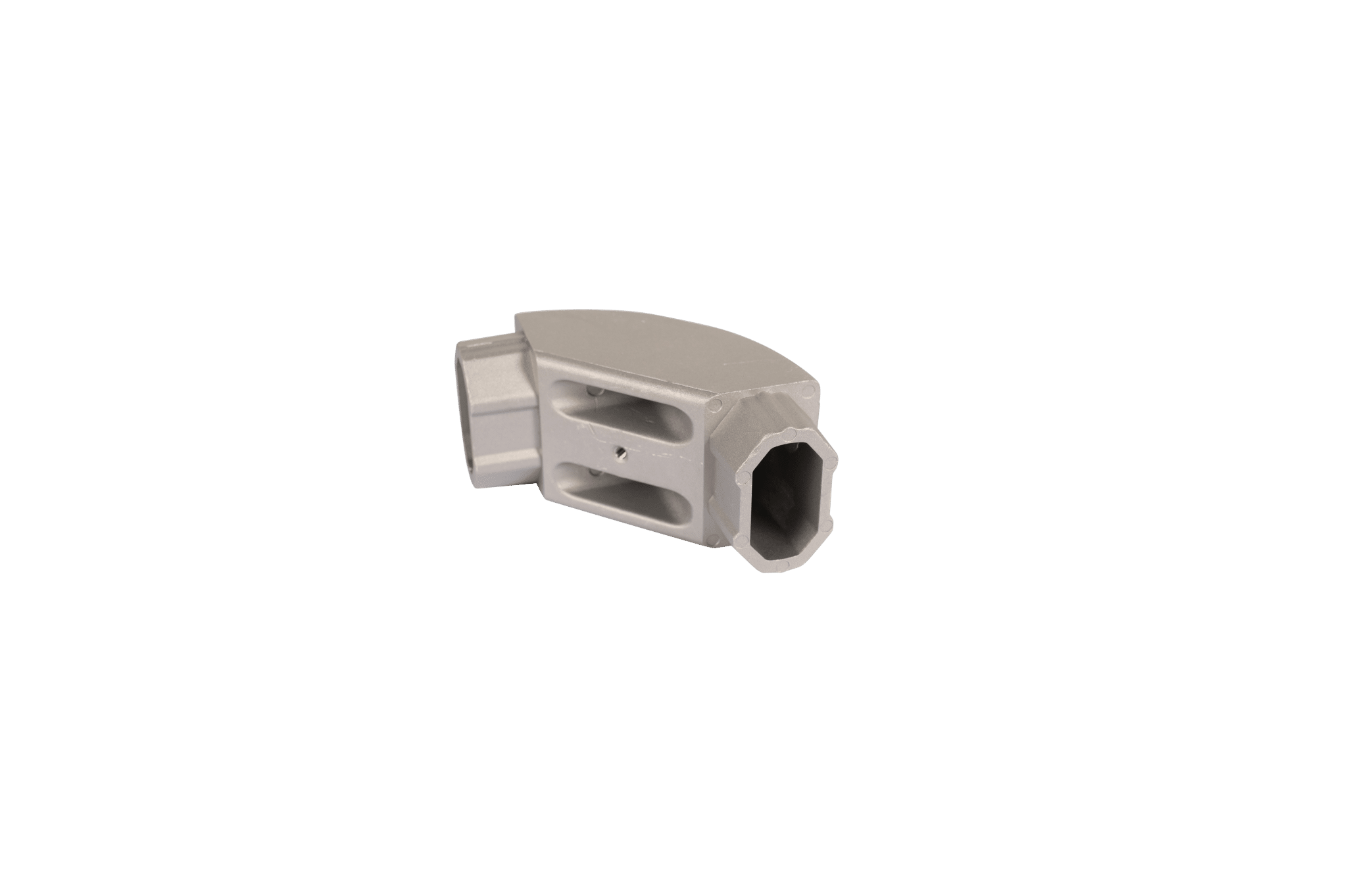

Our galvanised steel box section coupled with cast aluminium legs give unsurpassed strength to the daily activities that take place in your back of house. We have a range of fittings to allow our MBT rail to fit the most challenging of configurations and with our adjustable corner, our rail can be installed at any angle for optimum deflection.

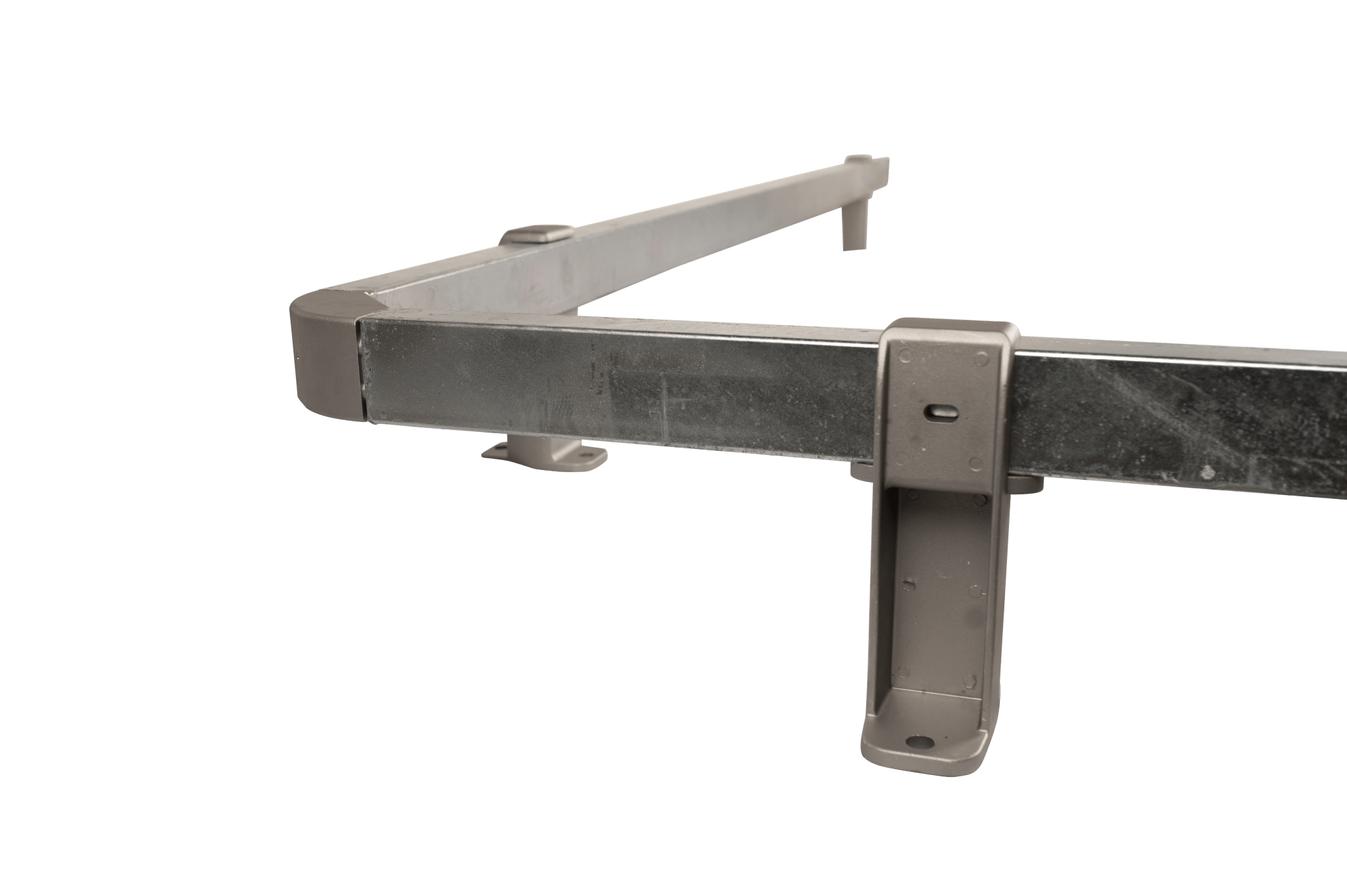

MBT Warehouse Impact Rail is manufactured from 76x51mm galvanised steel box section supplied in 2500mm lengths and is complemented with a range of cast aluminium fittings.

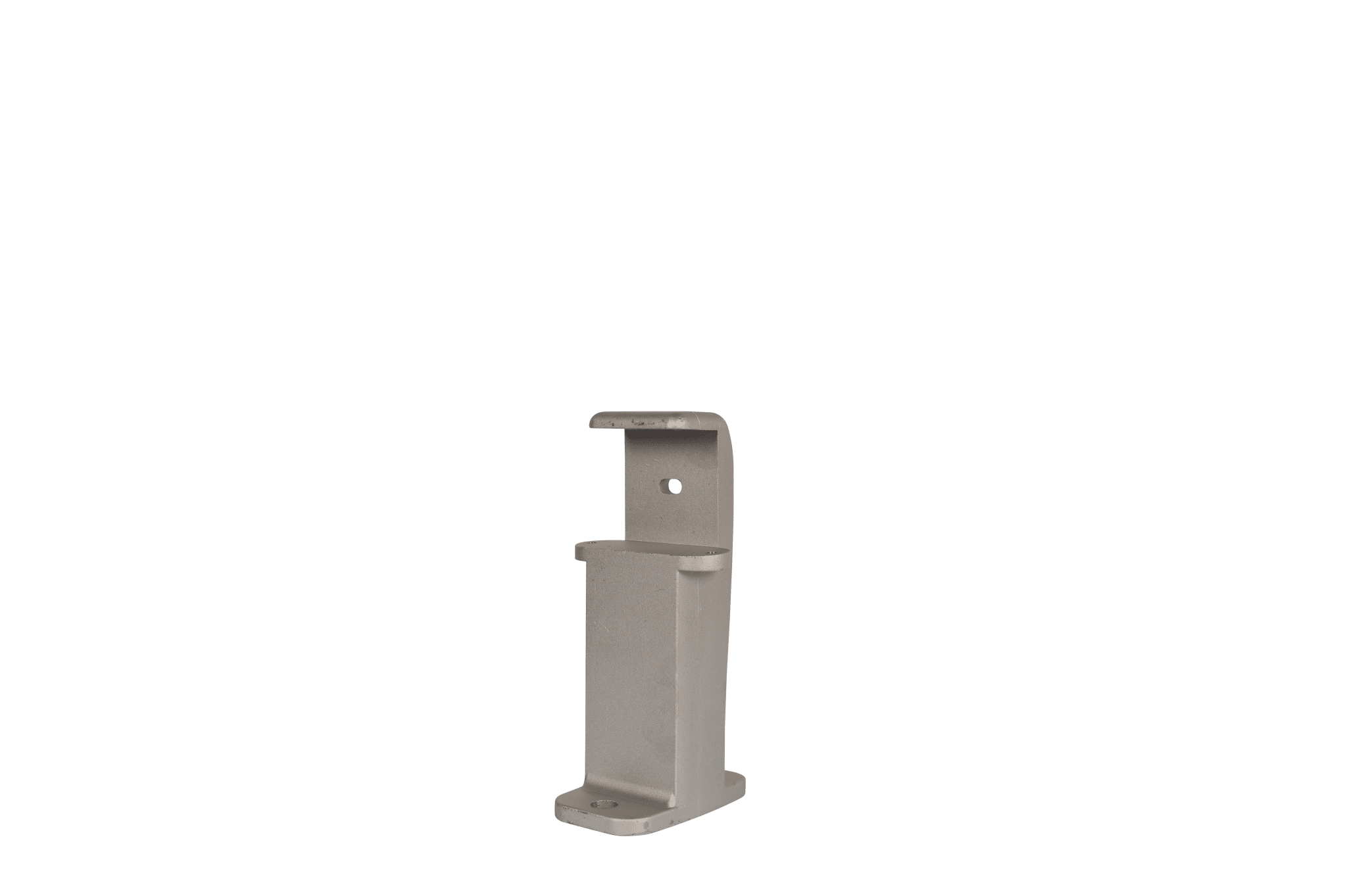

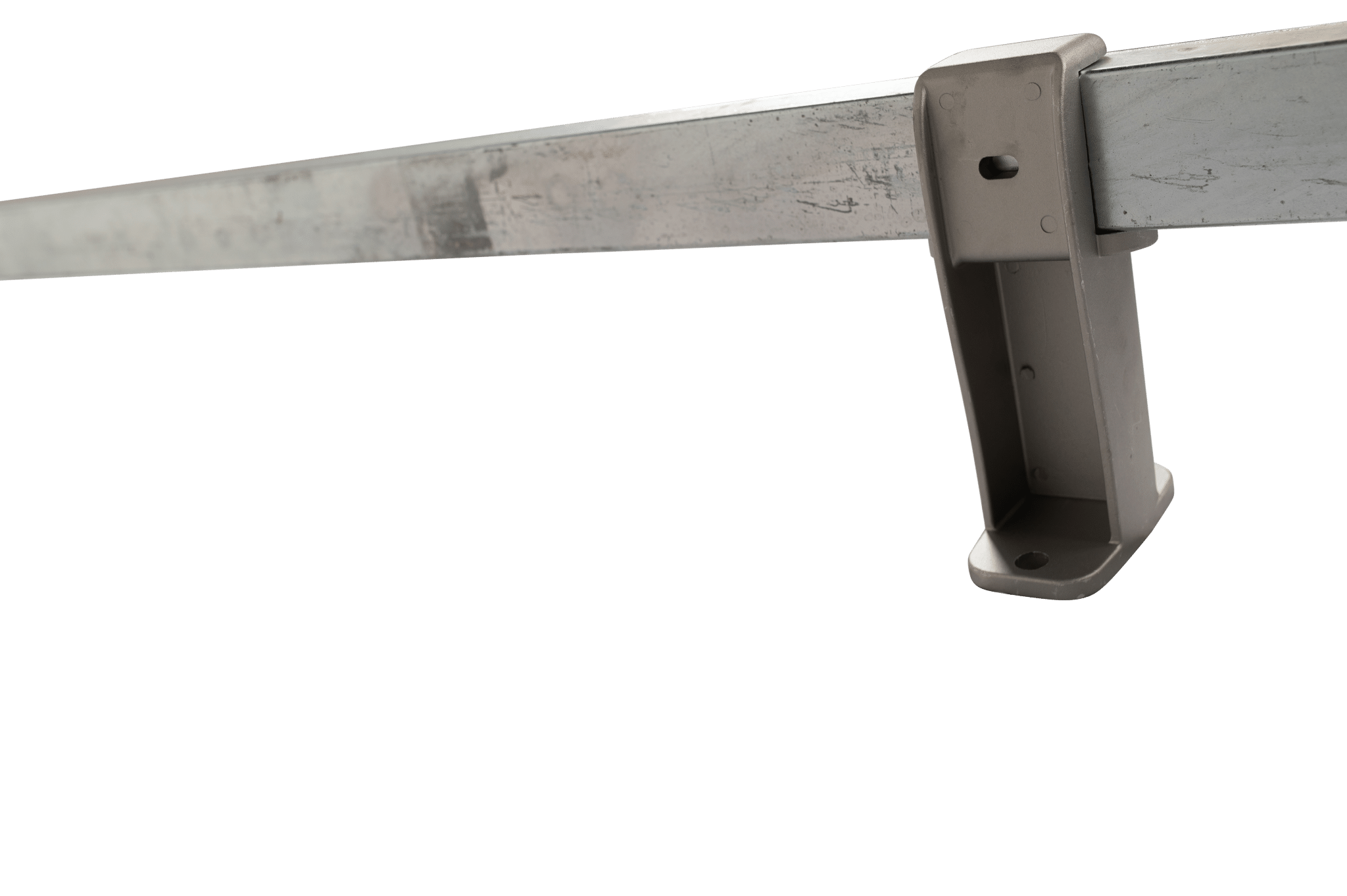

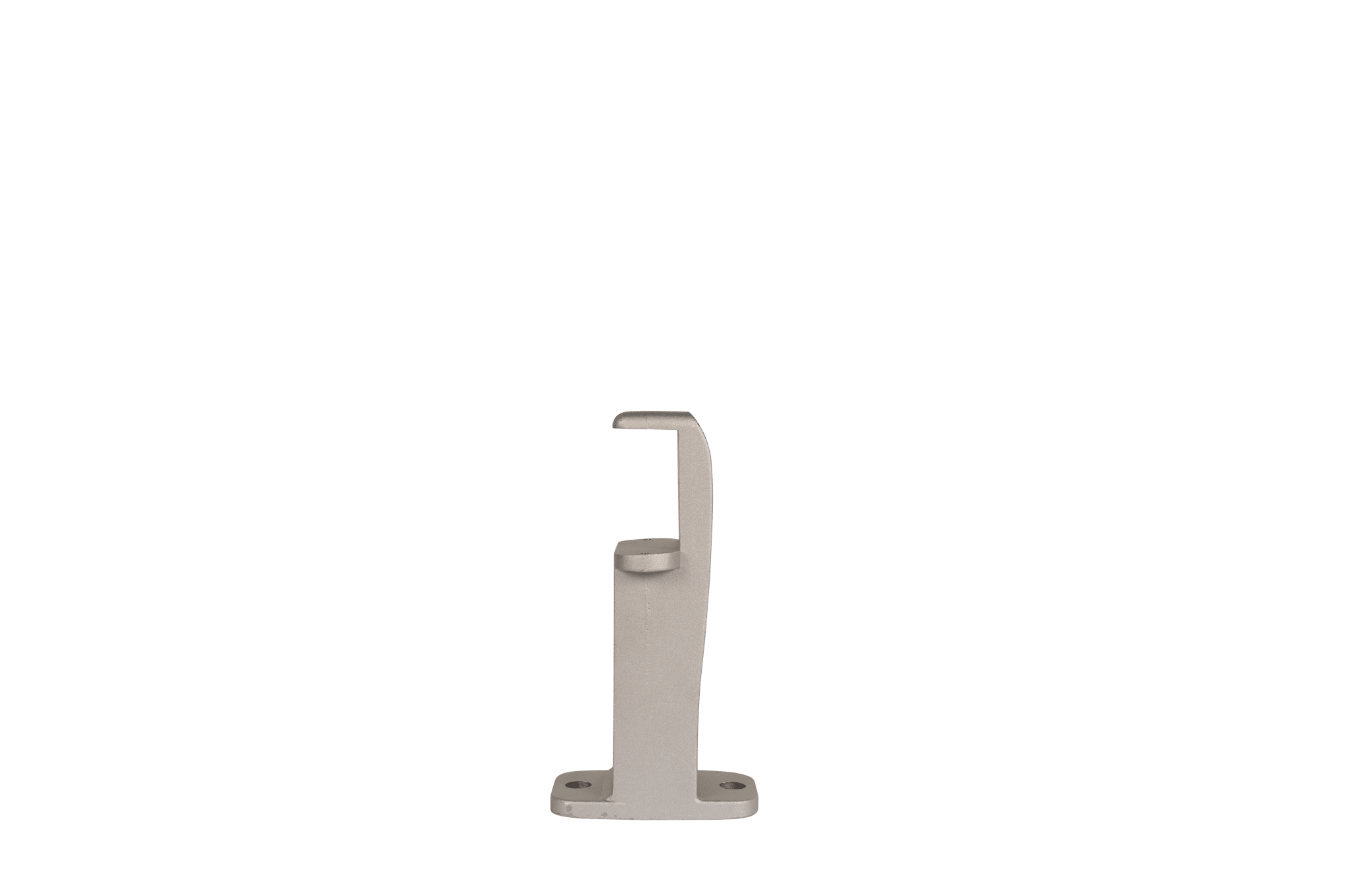

The MBT support foot, with front and back fixing positions, is designed to absorb impact energy and dissipate it throughout the continuous rail. Each foot can withstand a load of 2 tons.

Features:

• 76x51mm Galvanised Steel Box Section with aluminium feet, ends and corners
• Max distance between feet 2000mm
• Max distance of foot from end or corner 150mm
• Finished height 262mm above floor level
• Finished Depth - 136mm
• Recommended Fixings 2 x M10x80 raw bolts per foot subject to site conditions

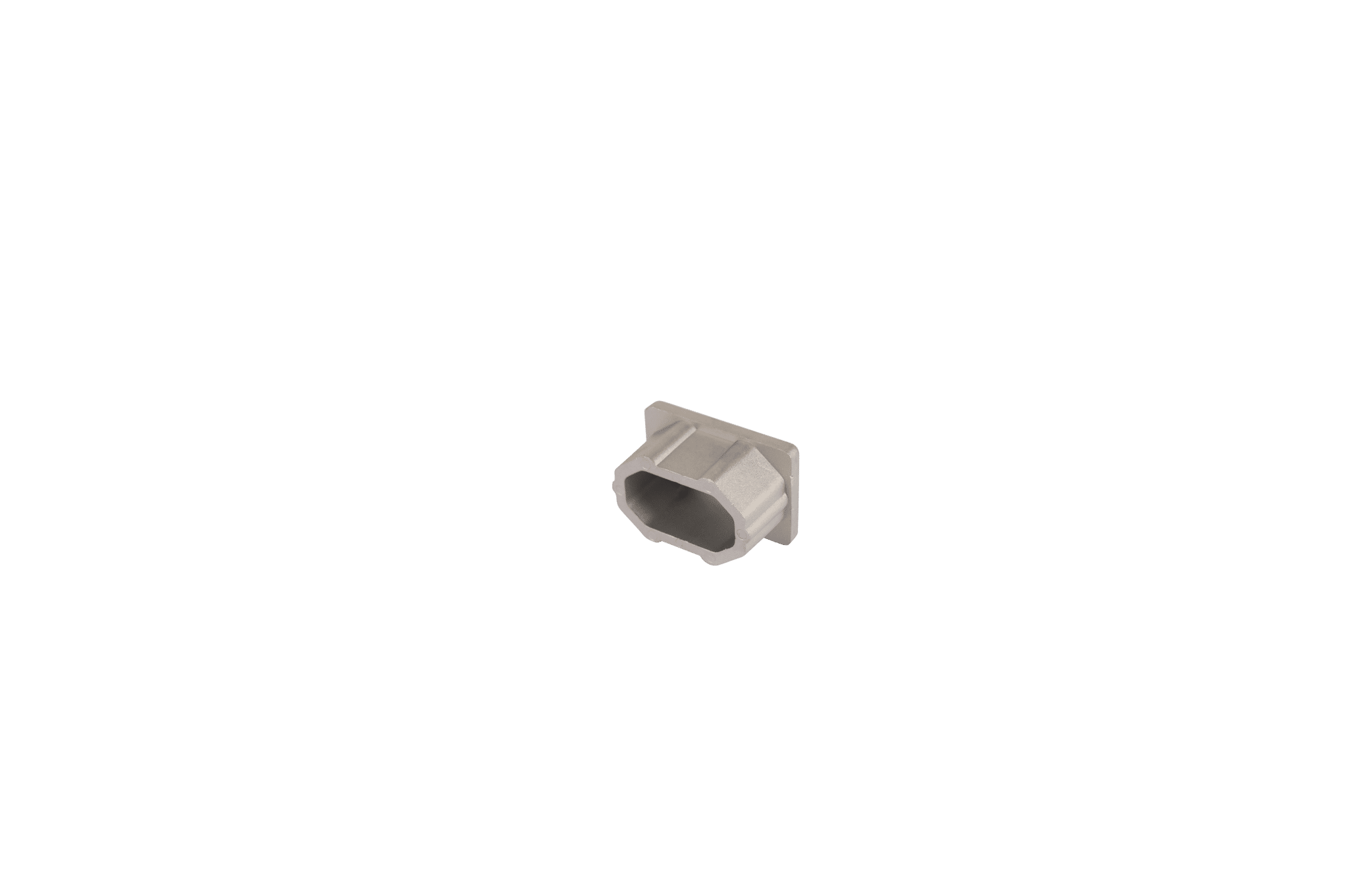

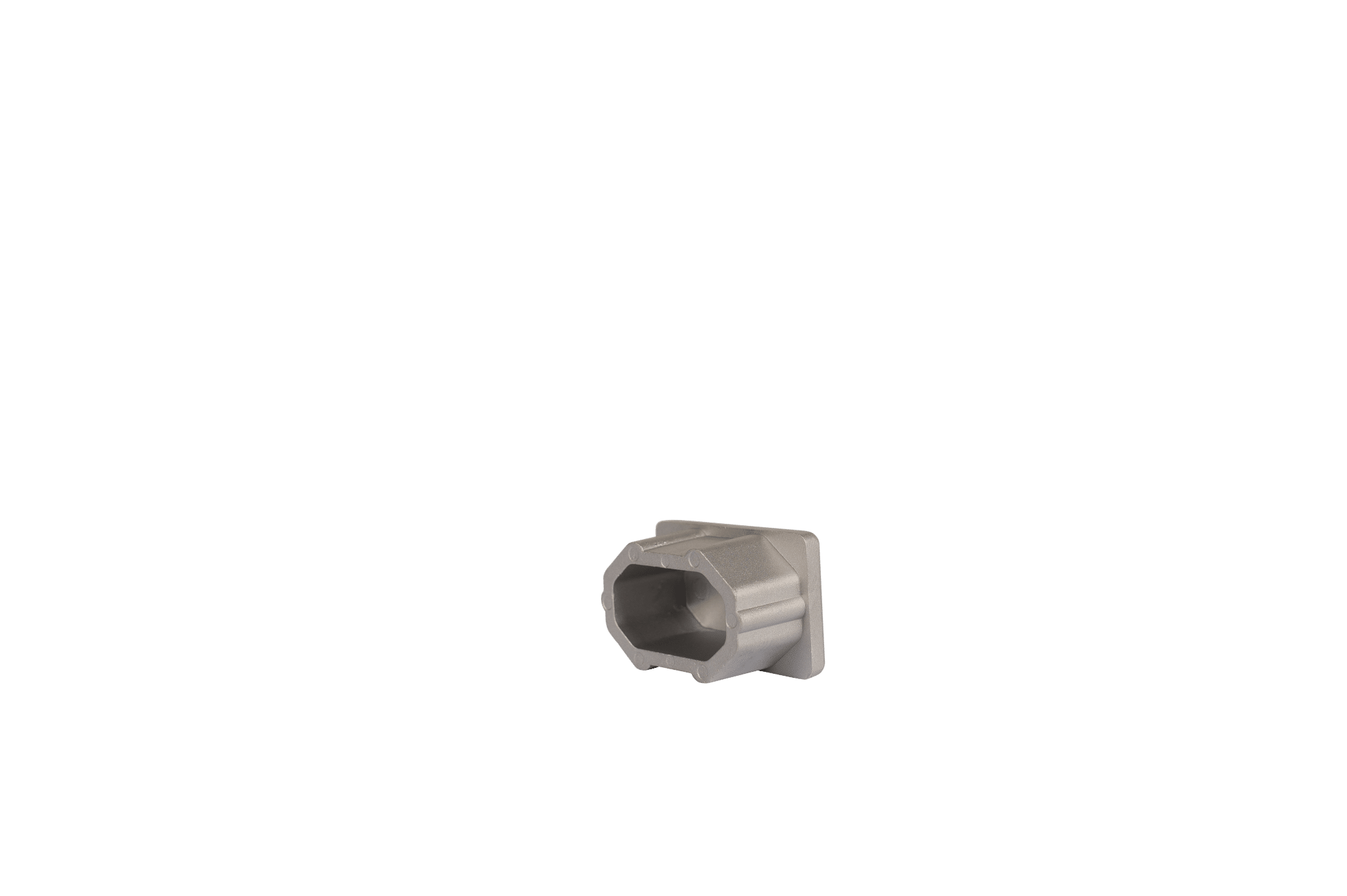

• Cast aluminium fittings
