Semi-Vertical Cycle Racks — Maximum Bikes, Minimum Footprint

When floor space is at a premium, semi-vertical cycle racks deliver the highest bike-per-metre ratio of any ground-level parking solution. By angling each bicycle into a semi-upright position, these racks reduce the per-cycle footprint by up to 40% compared to traditional horizontal stands — without sacrificing ease of use or security.

Built for the demands of UK public sector and commercial environments, our Semi-Vert racks are hot-dip galvanised to BS EN ISO 1461:2011, fully BREEAM compliant, and engineered for high-turnover locations where reliability is non-negotiable. Whether you're specifying cycle parking for a transport interchange, a multi-storey car park, or a corporate campus, Semi-Verts scale to meet your exact capacity requirements.

---

Key Features

• Triple-point locking system — 3 locking points plus a dedicated locking loop for maximum security
• 305mm centre spacing — optimised for comfortable access between adjacent bikes
• Modular, scalable design — extend linearly from 4 to 20+ bikes without structural alteration
• Hot-dip galvanised finish to BS EN ISO 1461:2011 — corrosion-resistant for exposed UK locations
• Internal or external installation — surface-fixed for sheltered or open-air deployment
• BREEAM compliant — supports sustainable building certification requirements
• Not suitable for e-bikes — designed for standard pedal cycles only

---

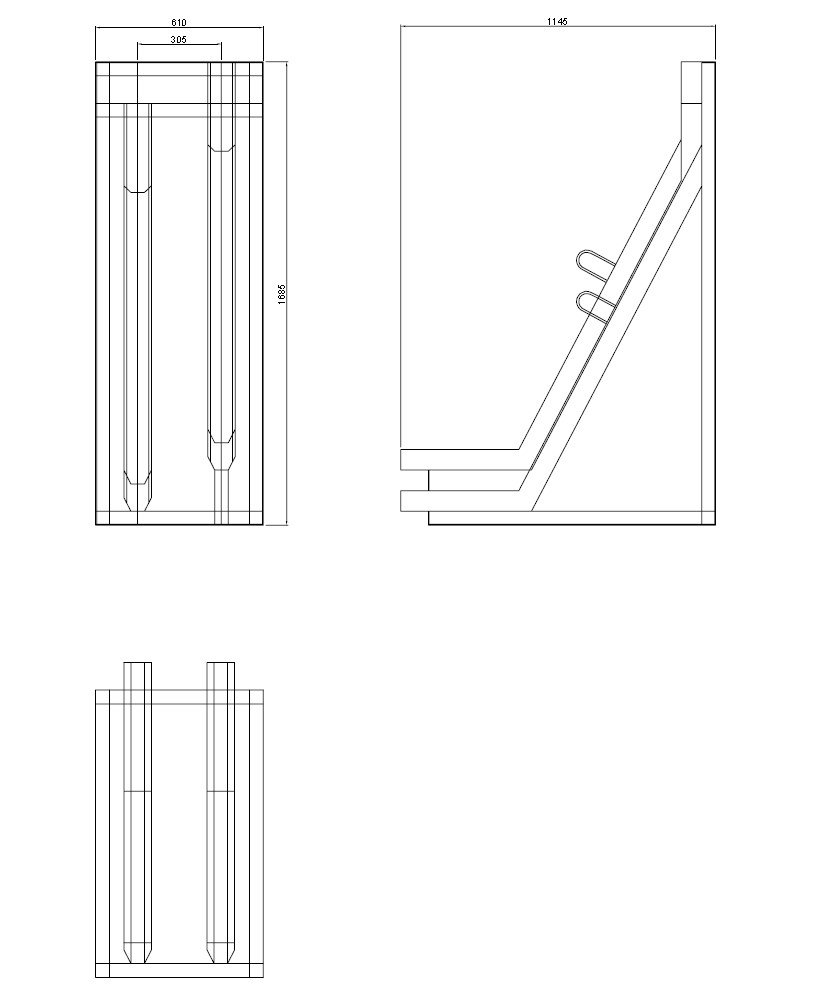

Technical Specifications

• Height: 1,685mm
• Depth: 1,145mm
• Tyre channel width: 60mm (internal) / 80mm (external)
• Centre spacing: 305mm
• Finish: Hot-dip galvanised to BS EN ISO 1461:2011
• Fixing: Surface-fixed (fixings included)
• Minimum order: 4-cycle rack unit

---

Width by Capacity

• 4 bikes — 1,220mm
• 5 bikes — 1,525mm
• 6 bikes — 1,830mm
• 7 bikes — 2,135mm
• 8 bikes — 2,440mm
• 9 bikes — 2,745mm
• 10 bikes — 3,050mm
• 12 bikes — 3,660mm
• 14 bikes — 4,270mm
• 16 bikes — 4,880mm
• 18 bikes — 5,490mm
• 20 bikes — 6,100mm

---

Ideal Applications

Semi-Vert racks are the preferred choice for facilities managers and procurement teams specifying cycle parking at:

• Railway stations and bus interchanges
• Office buildings and business parks
• Universities, schools, and colleges
• NHS sites and public sector buildings
• Retail parks and shopping centres
• Multi-storey and surface-level car parks

---

Professional Installation Available

We offer a full installation service across the UK. Contact our team to discuss site surveys, groundworks, and project timelines — ideal for large-scale or phased deployments.

Need a quote for a specific quantity or site? Call us or use the enquiry form — we respond to all specification requests within one working day.
