Understanding warehouse racking load capacity
Warehouse racking load capacity is the maximum weight a racking system can safely support without structural failure. Get it wrong and you risk damaged inventory, injured staff, and business disruption. Get it right and your investment delivers years of reliable service.
At Store Fittings Direct, we've worked with many warehouses and consistently see the same mistake: confusion between different types of load measurements. Teams conflate terms, misread manufacturer data, or apply calculations to the wrong scenario. The difference between safe operation and failure often comes down to knowing exactly what your racking can hold and respecting that limit.
UDL vs point load: what's the difference
Uniform Distributed Load (UDL) is the total weight spread evenly across the entire shelf or beam. A shelf rated at 1,000 kg UDL means 1,000 kg distributed uniformly across its full length performs safely.
Point load is the maximum weight concentrated at a single location, typically at the centre. A shelf might have a 1,000 kg UDL but only a 500 kg point load capacity. A single heavy pallet dropped in the middle applies force very differently than the same weight spread across multiple pallets.
Using only the UDL rating and then placing concentrated weight beyond the point load limit is how shelves fail. Always reference both figures. If the spec sheet doesn't list point load capacity, contact the manufacturer before loading.
How load capacity affects racking safety
Exceeding load capacity produces sudden failure, not gradual decline. Metal fatigues, welds crack, and structural integrity collapses without warning.
Overloaded racking often looks fine from the ground. Slight deflection or internal stress fractures aren't visible during quick inspections. The failure happens suddenly, often when forklifts are nearby or staff are working beneath shelves.
Overloading also accelerates wear on every component. Joints loosen faster. Bolts work themselves free. Connections that should last 10 years deteriorate in 2. Load capacity exists to keep people safe and protect your investment.
SEMA racking safety standards and compliance
The Storage Equipment Manufacturers Association (SEMA) publishes BS EN 15629, which governs the design, testing, and safe use of industrial racking systems across the UK and Europe (bsigroup.com). SEMA standards require manufacturers to test racking to specific load levels and establish inspection and maintenance protocols that warehouse operators must follow.
Compliance is legally required. If an incident occurs, insurance companies often refuse claims when racking has not been inspected and maintained according to SEMA standards.
The standards also define how racking must be protected from impact damage. Products like the Pallet Racking Protection from Black Bull are essential. These barriers absorb impact from forklift trucks, preventing structural damage that can compromise load capacity over time.
Store Fittings Direct supplies racking protection systems that meet SEMA requirements, including the Black Bull Pallet Racking Protection available in right-angle and U-profile configurations.
Calculating safe working loads for your racking
Calculating safe working loads requires understanding your specific racking configuration and the loads you intend to place on it.

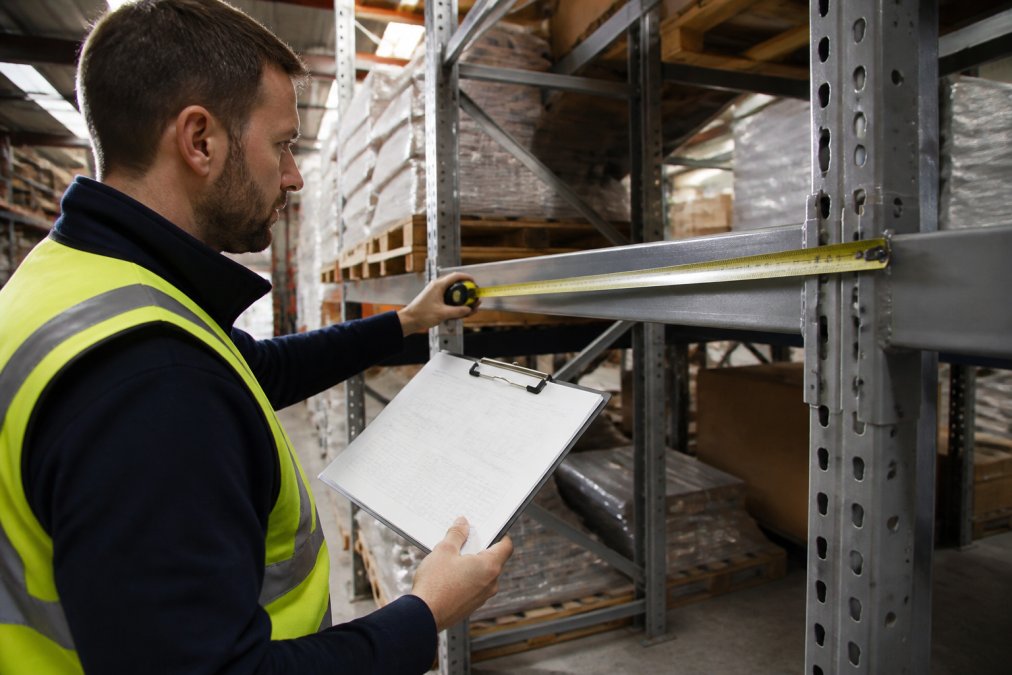

Step-by-step calculation method
Start with the manufacturer's specification sheet, which lists the UDL capacity per shelf, point load capacity, and any load limits based on shelf depth or beam span. If you don't have it, contact the manufacturer with your racking model and serial number.
Measure your actual load by weighing individual pallets on a calibrated scale, not estimates. Calculate load distribution across your shelf. If you're placing three pallets on a shelf rated for 1,500 kg UDL, divide the total weight by three. Then check whether any single pallet exceeds the point load limit.
Account for dynamic loads. A pallet dropped from a forklift applies impact force that multiplies effective weight. Most manufacturers recommend applying a 20 to 30 percent safety margin (peer-reviewed research). If your calculated load is 900 kg and you apply a 25 percent margin, treat the shelf as supporting 1,125 kg.
Document your calculations and keep them accessible. When new staff join or inventory changes, these calculations prevent accidental overloading.
Common mistakes in load calculations
The first mistake is using only the UDL rating and ignoring point load capacity. A 900 kg pallet concentrated in one spot might exceed the point load limit even though it's well below the UDL.
The second mistake is failing to account for the weight of the racking itself, though the manufacturer's capacity already accounts for this.
The third mistake is assuming all racking of the same model has identical capacity. Specifications change over time; always verify against the actual specification for your installation.
The fourth mistake is applying static load calculations to dynamic situations. A shelf might safely hold 1,200 kg of boxes stacked gently, but dynamic loading from constant additions and removals requires lower capacity margins.
The fifth mistake is underestimating environmental factors. Racking in cold storage experiences different stresses than dry warehouses. Rust and corrosion reduce effective capacity. Account for your specific environment when setting load limits.
Warehouse racking inspection checklist
Regular inspection is your early warning system for problems before they become failures.
What to inspect and how often

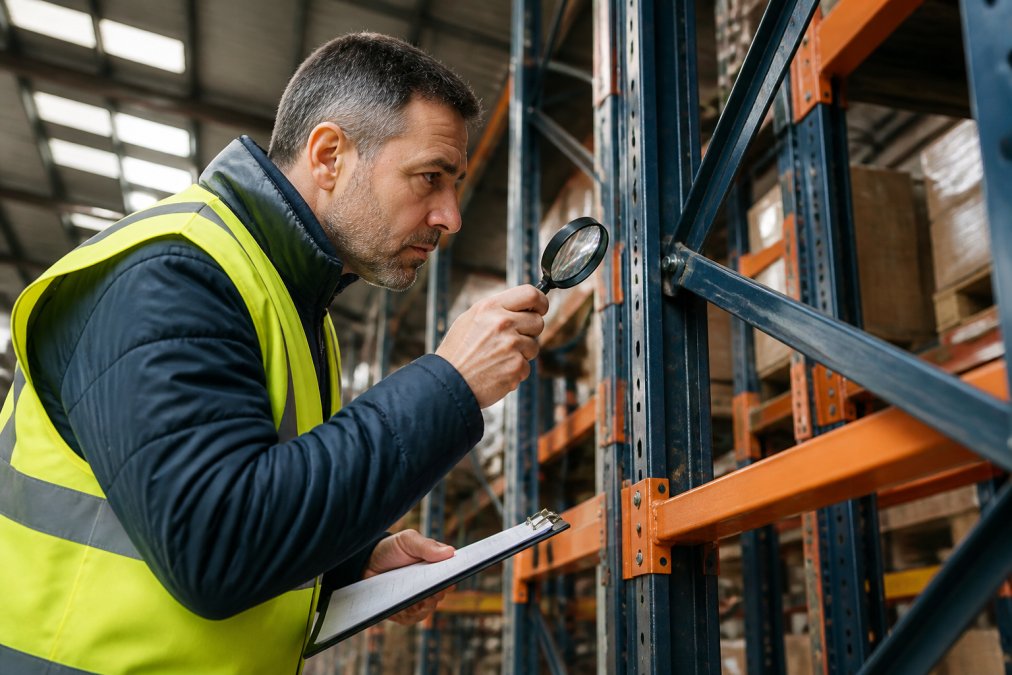

Inspect your racking at least annually, more frequently if you operate in a high-impact environment or if racking is more than 10 years old. After any significant incident, collision, or visible damage, inspect immediately.
Check all uprights for bending, dents, or visible cracks. Look at base plates where uprights connect to the floor. Loose bolts, cracks in concrete, or separation from the floor are serious warning signs.
Examine horizontal beams and shelves for sagging, bending, or permanent deformation. Check welds and connections for cracks or separation. Inspect all bolts, pins, and fasteners, tightening any that have worked loose. Check for rust or corrosion, especially in damp environments.
Look at the floor beneath and around the racking. Cracks in concrete, water damage, or settlement indicate foundation problems that affect racking safety.
PUWER inspection requirements
The Provision and Use of Work Equipment Regulations 1998 (PUWER) requires that all work equipment, including racking systems, be inspected regularly and maintained in a safe condition. For racking, this means documented inspections at least annually, with more frequent checks in high-risk environments.
PUWER requires that racking be inspected by a competent person with sufficient training and experience to identify hazards and assess risks. This can be an internal team member with appropriate training. However, the inspection must be documented and records must be retained.
Following inspection, you must create a written report detailing any defects found and actions taken to remedy them. This documentation is your evidence of compliance if an incident occurs.
Store Fittings Direct supplies protective equipment that helps you meet PUWER requirements. The Column Impact Protector Guard and other barrier systems reduce the risk of impact damage that could render racking unsafe.
Racking load notice requirements
Every racking system must display a clearly visible load notice specifying the maximum load capacity for each shelf or beam. The notice must be in English and positioned so anyone loading the racking can see it before placing items.
The load notice should state the UDL capacity, point load capacity, and the date of the last inspection. It should also specify any limitations, for example, "Do not place items exceeding 500 kg in any single location."
If your racking has been modified, repaired, or reconfigured since original installation, the load notice must reflect current capacity. After any repair or modification, have a competent person recalculate safe working loads and issue an updated notice.
Load notices prevent accidental overloading and demonstrate to enforcement officers that you've communicated safety requirements to staff.
Protecting your racking investment
Impact damage from forklift trucks is the primary threat to racking integrity. Even minor collisions can crack welds, bend uprights, or loosen connections.
The Pallet Racking Protection absorbs impact energy and transfers it to the ground rather than to the racking structure. The bright yellow powder-coated finish with black striping makes them highly visible, which prevents many collisions.
For column protection, the Warehouse Column Protector Guard provides adjustable protection for columns ranging from 200 x 200 mm to 300 x 300 mm. The Corner Column Protector Guard, manufactured in the UK and available with galvanised or powder-coated finishes, protects vulnerable corner areas.
Beyond physical protection, maintain your racking by keeping it clean and dry. Remove accumulated dust and debris that trap moisture. Address rust and corrosion immediately. Inspect bolts and tighten them regularly.
Consequences of overloading and how to prevent them
Overloading warehouse racking produces failure without warning. Shelves collapse, beams bend, uprights crack. The racking must be taken out of service immediately, and repair or replacement incurs unexpected costs.
Collapsed racking damages inventory. Fragile items break. Electronics are damaged beyond repair. Perishables spoil. Food products may become unsafe to sell.
If staff are injured when racking fails, your business faces legal action, employers' liability claims, and potential criminal prosecution. The absence of proper load calculations and inspection records makes your liability much worse.
A serious incident damages reputation and loses business. Customers question your operational standards. Insurers may decline to renew coverage.
Prevention is straightforward: know your racking capacity, calculate your actual loads accurately, and respect the limits. Implement a documented inspection routine that catches problems early. Train staff on safe loading practices and make load notices visible and unambiguous.
Warehouse racking load capacity is the foundation of safe, efficient operations. Understanding the distinction between UDL and point load, following SEMA standards, calculating loads accurately, and inspecting regularly are the practices that keep your facility running safely. Store Fittings Direct provides the protective equipment and barriers that help you maintain compliance and protect your racking investment. Explore our range of impact protection products, including pallet racking protection and column guards, and ensure your warehouse meets current safety standards.
Frequently Asked Questions
Q: What are the HSE guidelines for warehouse racking safety?
A: The Health and Safety Executive requires warehouse racking to comply with the Provision and Use of Work Equipment Regulations 1998 (PUWER). Racking must be designed, installed, and maintained to prevent collapse or tipping. Load capacity must be clearly marked, and operators must receive training on safe handling. Regular inspections are mandatory, with defects remedied immediately. Your racking supplier should provide technical specifications confirming compliance with relevant standards.
Q: How do you calculate the safe working load for warehouse racking load capacity?
A: Multiply the beam capacity (per beam, not total) by the number of beams, then divide by the number of pallets per level. Account for the pallet weight itself. For example: if each beam holds 1,000 kg, you have two beams, and use one pallet per level, the safe working load is 1,000 kg per level. Always consult your racking manufacturer's technical data sheet and never exceed stated limits. When in doubt, reduce the load further for safety margin.
Q: How often should warehouse racking be inspected under PUWER?
A: PUWER requires inspections at least annually by a competent person. However, high-traffic warehouses using forklifts should inspect every six months or quarterly. Visual daily checks by staff are also essential to catch damage early. After any accident, impact, or modification, inspect immediately. Document all inspections and keep records for at least five years. Damaged sections must be taken out of service until repaired.
Q: Do I need load notices on my warehouse racking?
A: Yes. PUWER and HSE guidance require load notices on all racking systems clearly stating the safe working load per level or bay. The notice must be legible, durable, and positioned where operators can see it before loading. Include both the UDL (uniformly distributed load) and point load limits. Failure to display load notices is a compliance breach and increases liability if an accident occurs. Update notices if load capacity changes after repairs or modifications.
