LCD Video Wall Display | 46" & 55" Narrow and Ultra Narrow Bezel Commercial Screens
Not sure what you need?
Tell us the space and how the screen will be used, and we can work the size and set-up through with you.
LCD Video Wall Displays: 46" & 55" Narrow and Ultra Narrow Bezel
Commercial screens that tile together into one big, near-seamless picture, with built-in daisy chain tiling so you can run a 4K wall without an external controller.

*55" Ultra Narrow model; 1.8mm on the Narrow models. **Terms and conditions apply.
Three versions to choose from. 46" Narrow and 55" Narrow (1.8mm screen-to-screen gap) for great value walls, or 55" Ultra Narrow (0.88mm gap) for the most seamless picture. Prices are per screen: order one for each position in your wall, for example 4 for a 2 × 2.
Big, Bold Video Walls for Any Space

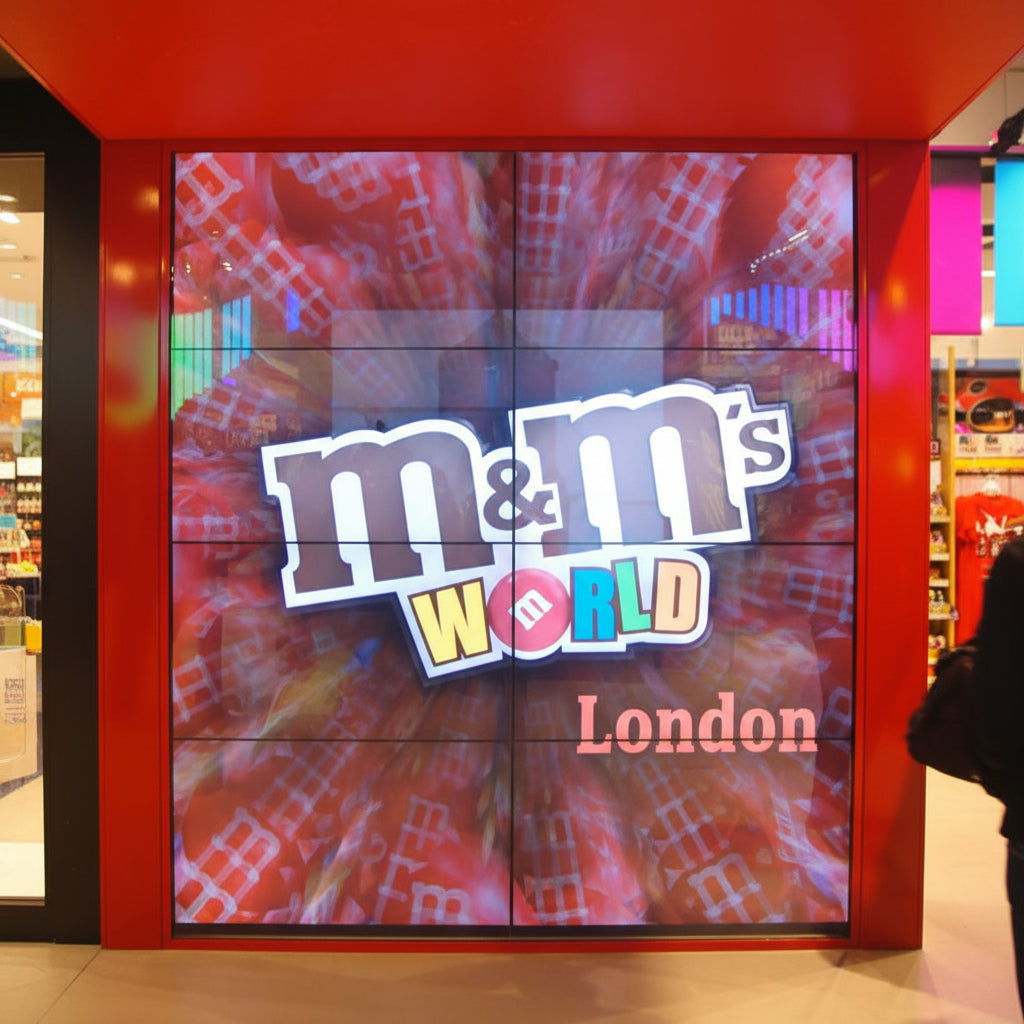

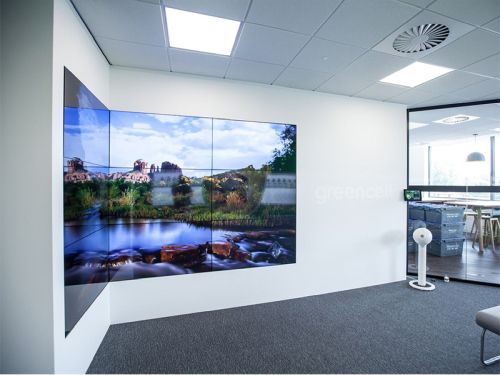

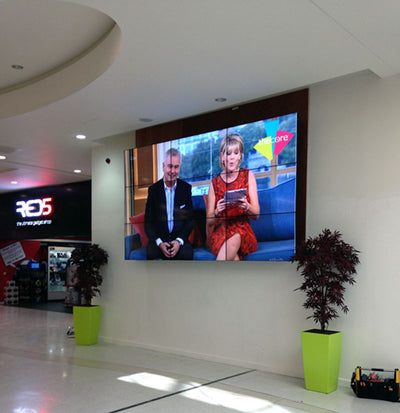

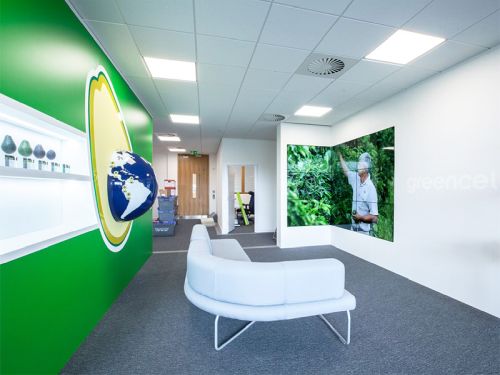

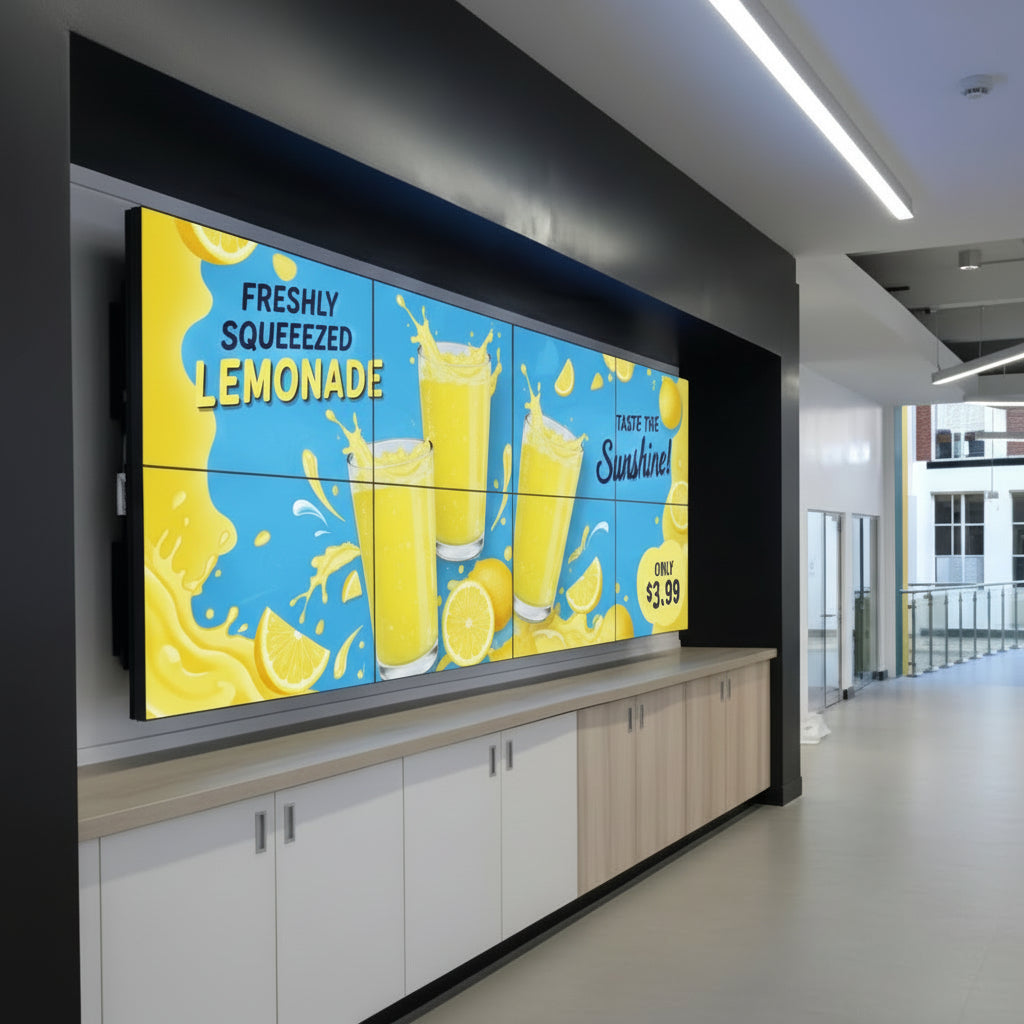

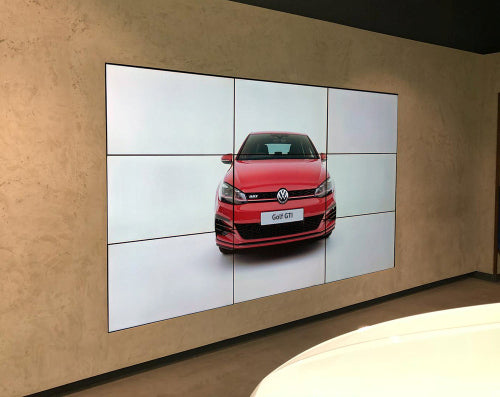

Ideal for flagship stores and shop windows, shopping centres, receptions and boardrooms, control rooms, bars, gyms, venues, showrooms and transport hubs. Show one huge image across the whole wall, or different content on each screen.
Which version? The Narrow models suit most retail and hospitality walls; choose the 55" Ultra Narrow where the joins must be as close to invisible as possible. We can advise on layout, mounts and cabling: call us on 0116 318 4182.
Near-Seamless Bezels
Choose the bezel to suit your project. The 46" and 55" Narrow models have a 1.8mm screen-to-screen gap, and the 55" Ultra Narrow has razor-thin 0.44mm even bezels for just 0.88mm between screens, so the joins all but disappear and the wall reads as one big picture.


4K Daisy Chain Tiling, No Controller Needed
Link the screens together with HDMI and the built-in matrix processor tiles your content automatically. Feed in a 4K source and you get Ultra HD across the whole wall without buying an external video wall controller, cutting hardware, installation and maintenance costs.
500cd/m² Commercial IPS Panels
Commercial grade IPS panels give accurate, consistent colour from wide angles (178°), with colours pre-calibrated to keep every screen in the wall matching. An anti-glare finish diffuses reflections without dimming the picture, ideal for bright shops, receptions and control rooms.


Multiple Inputs & Remote Control
Use the screens on their own, as a self-tiling wall, or run them from an external matrix controller. The 55" models have HDMI in and out, DisplayPort, DVI, VGA, USB and audio out; the 46" has 2 × HDMI and DisplayPort in and out. RS-232 and network control make them easy to add to AV room control systems.
Landscape or Portrait, Any Size Wall

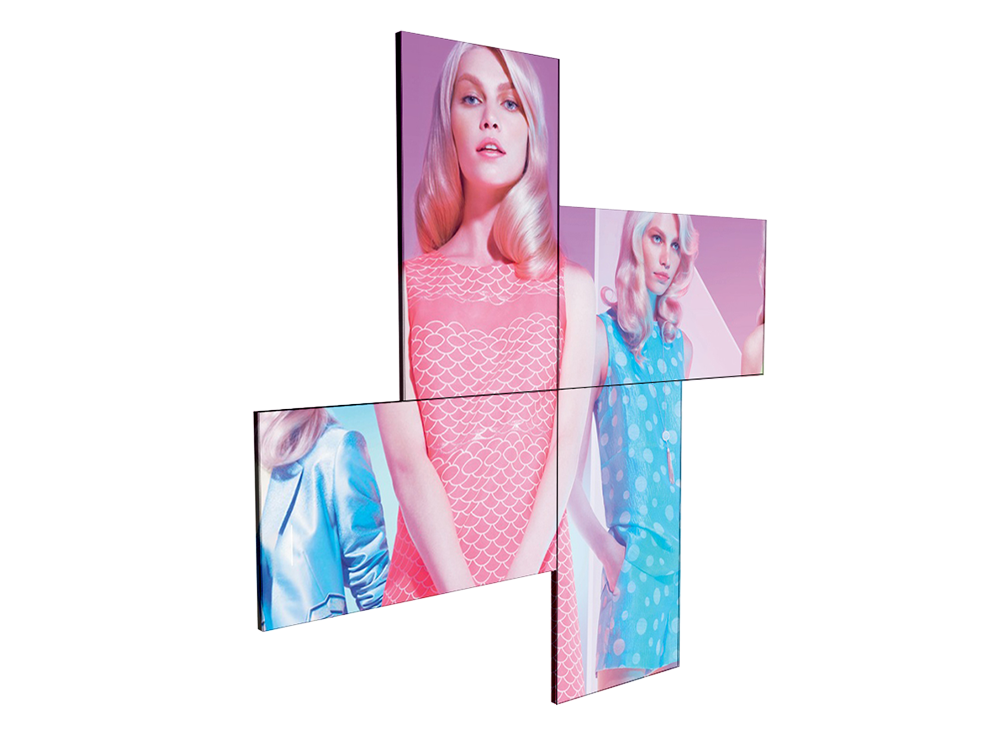

Mount the screens in landscape or portrait and build 2 × 2, 3 × 3 or any custom layout. VESA 600 × 400 fixings fit standard video wall mounts.


24/7 Reliable & Eco-Friendly
Built for continuous 24/7 commercial use, with a fanless smart temperature control system to keep components cool and quiet. LED backlighting cuts power use by around 30%, and an eco power timer switches the screens on and off with your input signal.
Optional Network Media Player & Touch Frame
Add a network media player to update your content remotely over Wi-Fi, LAN or 4G, or a standalone player for simple USB playback. A touch screen frame is also available to make the wall interactive.

Versions & Key Specifications
| Specification | 46" Narrow | 55" Narrow | 55" Ultra Narrow |
|---|---|---|---|
| Model | TL46N1 | TL55N2 | TL55S2 |
| Bezel, screen to screen | 1.8mm | 1.8mm | 0.88mm (0.44mm each side) |
| Resolution per screen | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 |
| Brightness | 500cd/m² | 500cd/m² | 500cd/m² |
| Display area, mm | 1018.1 × 572.7 | 1209.6 × 680.4 | 1209.6 × 680.3 |
| Size, mm (W × H × D) | 1020.7 × 575.3 × 125 | 1212.2 × 683 × 122.6 | 1210.5 × 681.2 × 121.1 |
| Net weight | 19.9kg | 23kg | 23.4kg |
| Power, maximum | 220W | 200W | 250W |
| Video inputs | 2 × HDMI, DisplayPort | HDMI, DisplayPort, DVI, VGA | HDMI, DisplayPort, DVI, VGA |
| Daisy chain out | DisplayPort | HDMI | HDMI |
| VESA, mm | 600 × 400 | 600 × 400 | 600 × 400 |
See the Specifications tab for full technical details and the Downloads tab for the spec sheet, technical drawing and user manual for each version. Network media player, touch screen frame and video wall mounts available: call 0116 318 4182 for advice.
Warranty & Support

Every screen comes with our 3 Year UK On-Site Warranty: repaired or replaced with minimal downtime (terms and conditions apply), plus lifetime technical support. Supplied with a remote control, power cable, video cable and IR sensor.
SKU:25443432
Estimated Delivery Window
We aim to deliver within the delivery window mentioned on the product page, though this may vary slightly depending on the product, stock levels, and order size.
Please Note
Lead times are provided as estimates only. Orders placed today may be subject to change depending on material availability, courier capacity, and staffing levels.
Deliveries requested for a specific date or time may incur an additional fee; however, these cannot be guaranteed. Any re-delivery required due to the customer not being present, site refusal, or similar reasons will also result in an additional delivery charge.
Store Fittings Direct reserves the right to delay delivery, without liability for any loss or financial penalty, due to any direct or indirect factors beyond our control.

Pay By Card
The easiest way to complete your purchase is by paying with a debit or credit card during the checkout process, providing your card is authorised, you order will be processed Immediately. All major debit and credit cards are accepted including American Express
Finance
If you are looking to finance your order, we have teamed up with Iwoca to bring you some of the most flexible finance available today. If approved, you could enjoy up to £30,000 of credit with repayments from 30 days up to 12 months!
Please see our finance section for more information, or simply apply at checkout, you'll be redirected to Iwoca for approval, if approved, your checkout will automatically complete.
BACS / Bank Transfer
This can be the simplest way to make a larger capital purchase without using a third party.
If this is the preferred method of payment, please select Bank Transfer at checkout.
Bank transfers should be made within 24 hours of placing your order, using your order number as a reference in the transfer.
If you require longer than 24 hours, please contact our team and we will be happy to assist.
Downloads
- 📄 46 Inch Narrow Bezel Video Wall Display Spec Sheet TL46N1
- 📄 55 Inch Narrow Bezel Video Wall Display Spec Sheet TL55N2
- 📄 55 Inch Ultra Narrow Bezel Video Wall Display Spec Sheet TL55S2
- 📄 TL46N1 Technical Drawing
- 📄 TL55N2 Technical Drawing
- 📄 TL55S2 Technical Drawing
- 📄 Video Wall Display User Manual TL46N1
- 📄 Narrow Bezel Video Wall Display User Manual TL55N2
