BLACK BULL FLEX Impact Protection System Hybrid

BLACK BULL FLEX Impact Protection System Hybrid

The BLACK BULL FLEX Impact Protection System HYBRID offers the best of both worlds - a practical combination of the advantages of steel and plastic.

• For Indoor and Outdoor use
• Steel and Plastic construction
• Superior heavy-duty design
• Modular construction for customised applications
• Quick and easy installation
• TUV-tested according to DGUV 108-007

Most plastic railing systems require that the posts be anchored with steel plates that have welded studs. To ensure the necessary stability, steel components are installed internally within the posts. Our innovative solution is a hybrid railing system that merges the benefits of steel and plastic, utilizing resilient steel posts alongside equally flexible polypropylene (PP) lateral rails.

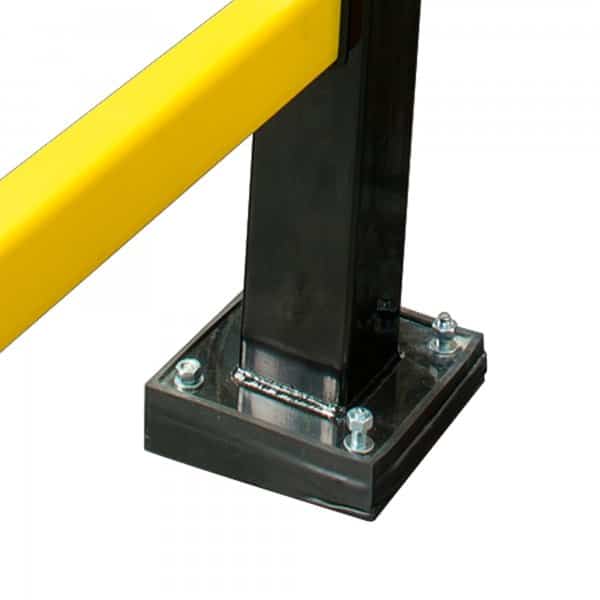

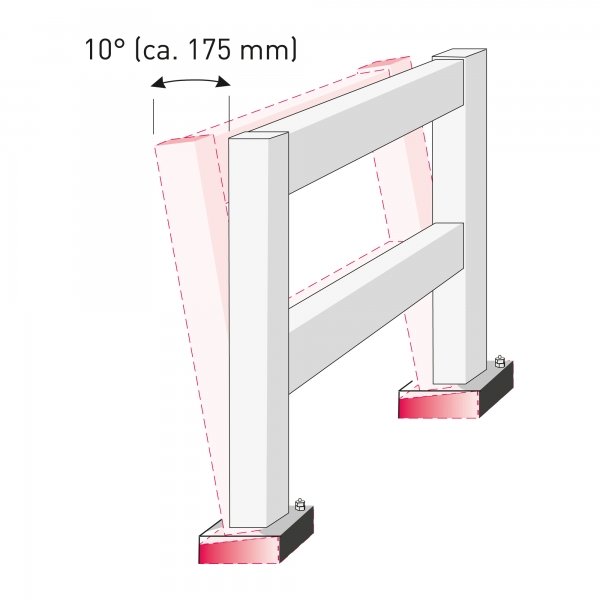

The posts are fitted with our patented polyurethane (PU) pads, which enable them to deflect up to a maximum angle of 10° (approximately 17.5 cm), thereby minimizing the forces transmitted from the post to the floor. The lateral rails are constructed from a high-grade polypropylene (PP) known for its exceptional resistance to impact stresses. This entire assembly serves to safeguard personnel, vehicles, and property while also decreasing the likelihood of floor repair costs.

These features culminate in a striking black and yellow heavy-duty railing system that is suitable for both indoor and outdoor applications.

Surface mounting only.

Applications:

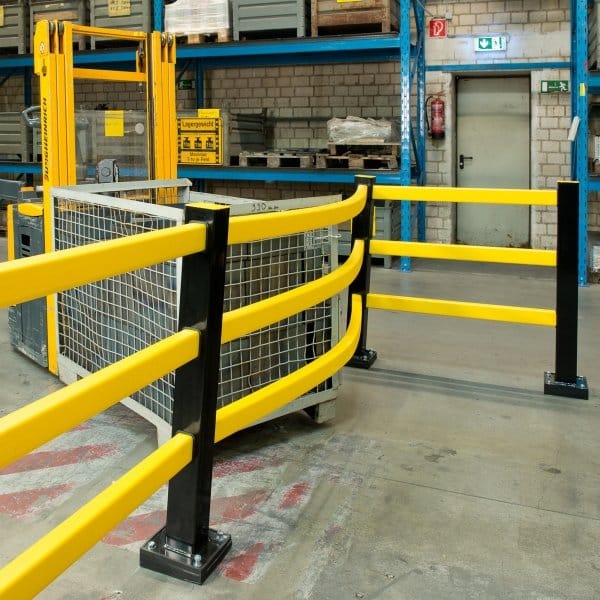

Segregate traffic lanes from pedestrians (forklift lanes/pedestrian paths), ideal for protecting work areas, equipment, machinery and plant.

Specifications:

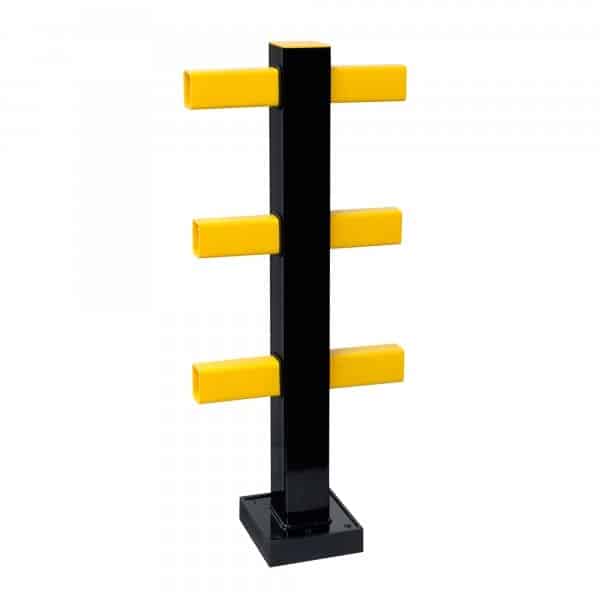

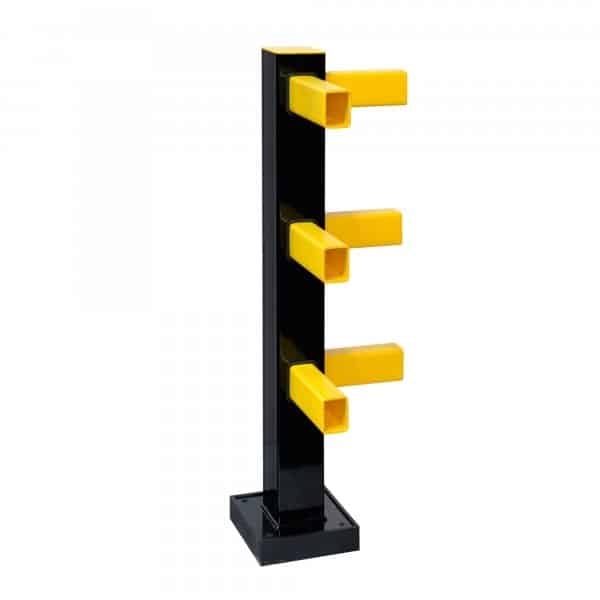

Posts

• Material: Steel
• Dimensions: 1,040 x 100 x 100mm
• Wall thickness: 3mm
• Base plate: 200 x 200 x 10mm
• Finish: Interior: Powder Coated - Exterior: Hot Dip Galv., powder coated.
• Colour: Black

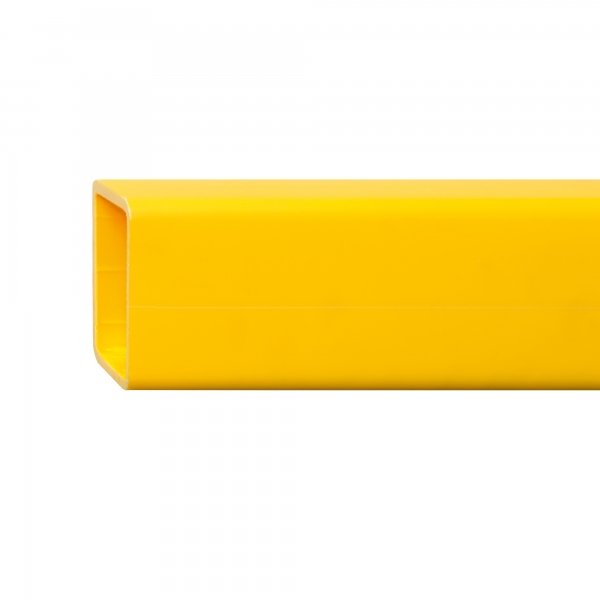

Lateral rails

• Material: Polypropylene (PP)
• Dimensions: 74 x 52 x 5mm
• Lengths: 1,000, 1,500, 2,000 or 2,300mm
• Colour: Yellow

Installed using 4 chemi-anchors per post.

Optional Steel Under-Run Protection Bar

• 76mm Ø x 86mm high
• Base plates 130 x 70 x 40mm
• Colour yellow
