BLACK BULL HD Impact Protection Railing System

Product ID 26042778 4.8 Store rating, 55 reviews
Specify Choose your options
Choose Finish
Impact Protection Railing
Your selection Powder Coated Only / End Post
Our Price£115.71£138.85 £138.85 inc VAT£115.71 ex VAT
In stock
You could have this between Mon 23rd Nov and Mon 30th NovUsually dispatched within 4 days

Happy to take a purchase order. Add to Quote if you need a formal price for a tender pack.

Not sure what the site needs?

Tell us what you are protecting, how it gets hit and what the floor or ground is made of, and we will tell you which option stands up to it.

Galvanised is hot dip zinc and is the hard-wearing choice for yards, loading bays and anywhere left out in the weather. Galvanised and powder coated is zinc first with colour over the top, so you get the protection and the visibility. Yellow and black or red and white banding is there to be seen, which is what you want on a traffic route or a crossing point.
Most of these bolt down to an existing concrete slab, so you need sound concrete and fixings to suit it. Some posts and barrier legs are made to be concreted in instead, which holds better where the ground is soft. The specification tab tells you which, and if the surface is tarmac or block paving give us a call before you order.
BLACK BULL HD Impact Protection Railing System - Store Fittings Direct

BLACK BULL HD Impact Protection Railing System

£115.71 ex VAT
£138.85 inc VAT
Earliest Est. Delivery
Mon 23rd Nov
Over 1.3 Million Products Sold The UK's No1 Fastest Growing Shop Fitting Provider

BLACK BULL HD Impact Protection Railing System

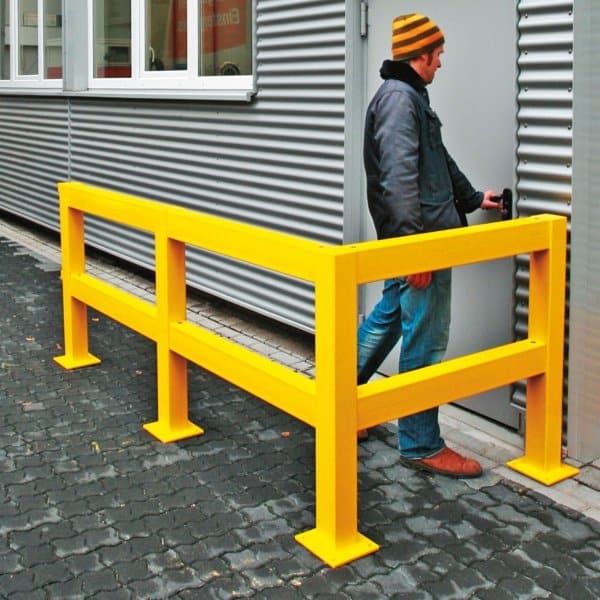

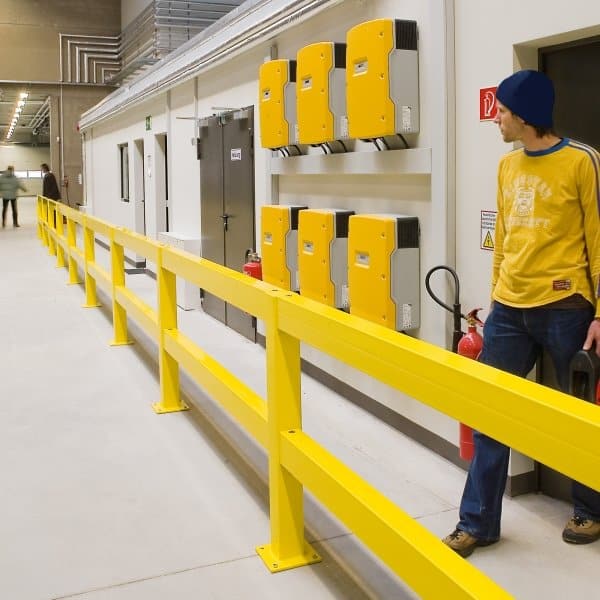

BLACK BULL HD Impact Protection Railing System is engineered for heavy duty protection of pedestrian walkways etc.

  • Ensures the safety of pedestrians against vehicle traffic.
  • Exceptional durability and construction quality.
  • Modular framework allows for swift and straightforward installation.

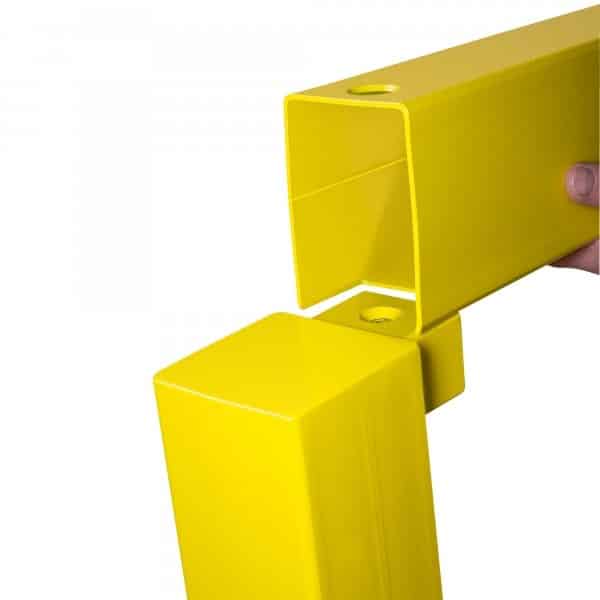

  • Countersunk bolts firmly attach rails to posts.
  • Perfectly suited for tailored applications.
  • Can be conveniently expanded at any point.
  • Damaged parts can be replaced with ease.
  • Secured effortlessly with bolts (not included).
  • TUV-certified in accordance with DGUV 108-007.

Applications:

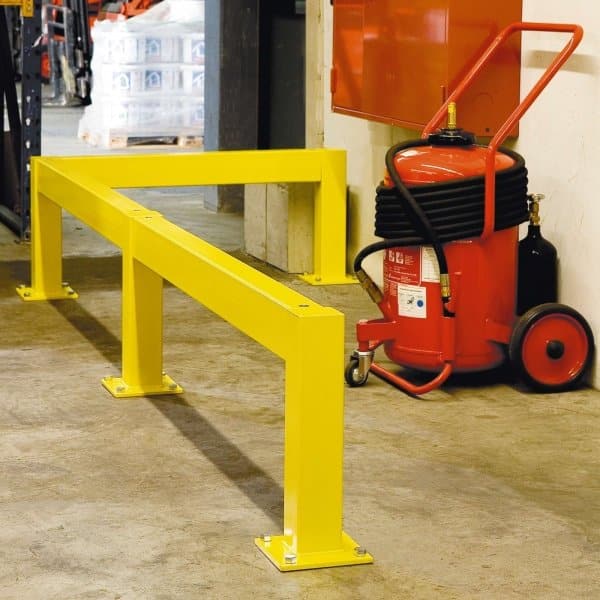

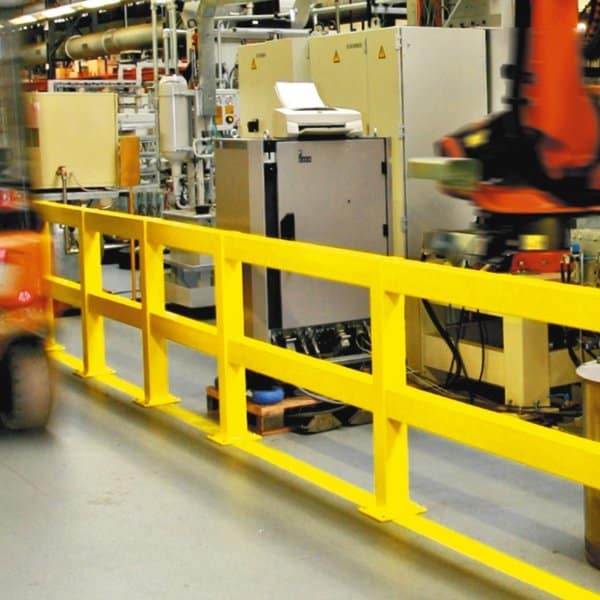

Separate traffic lanes designated for forklifts from pedestrian pathways, which is essential for safeguarding work zones, equipment, machinery, and facilities.

Specifications:

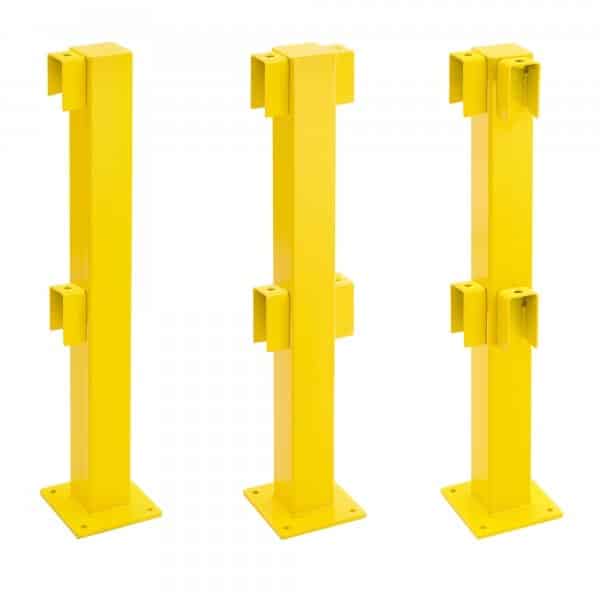

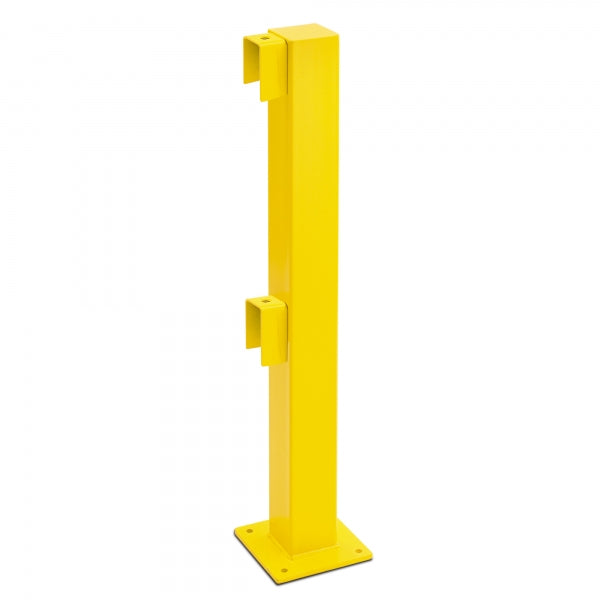

Posts

  • Size: 100 x 100mm square
  • Height: 500mm and 1,000mm
  • Base plate: 200 x 200 x 10mm thick (drilled 4 fixing holes)

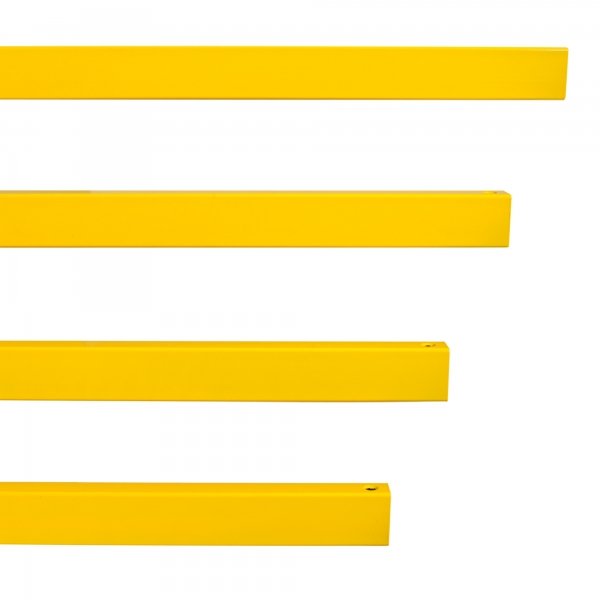

Lateral rails

  • Size: 120mm x 80mm x 4mm wall
  • Lengths: 1,000, 1,200, 1,500, or 2,000mm

Matching bollards

  • Size: 1,000mmH x 100 x 100mm Square
  • Base plate: 200 x 200 x 10mm thick (drilled 4 fixing holes)

Finishes:

  • Interior: Powder coated yellow
  • Exterior: Hot Dip Galv., powder coated yellow

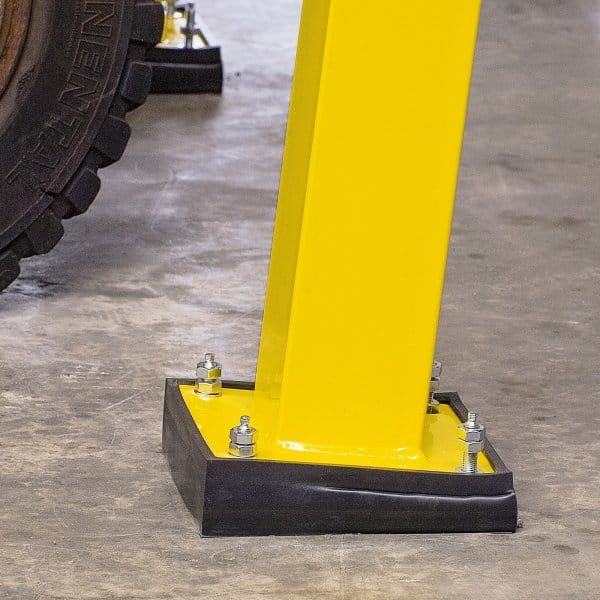

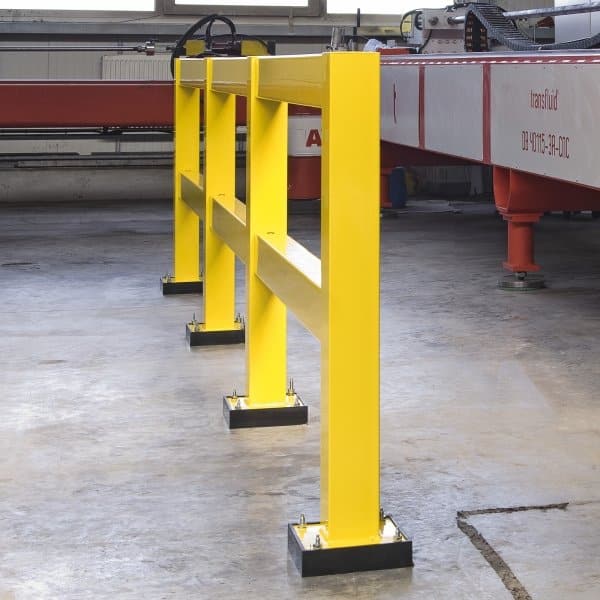

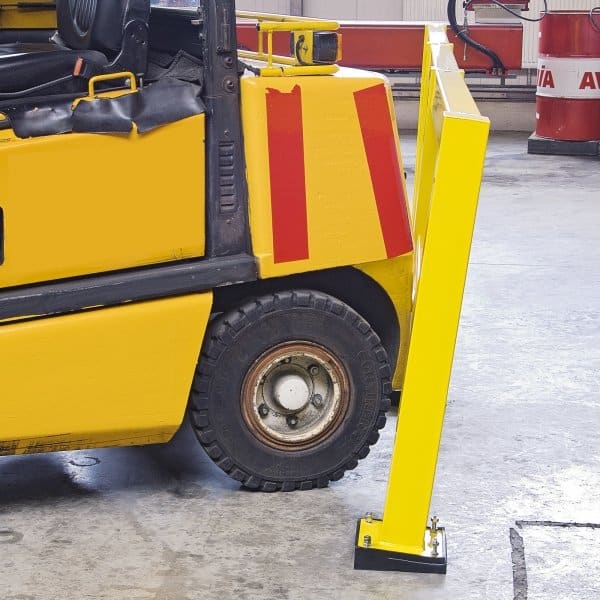

Optional FLEX Mounting.

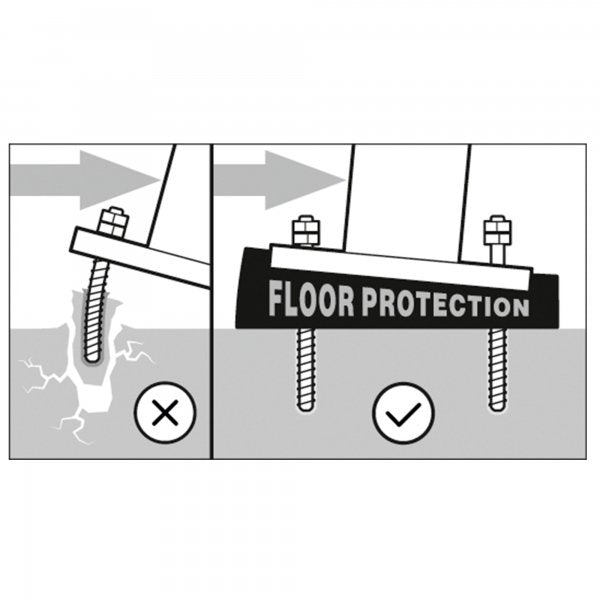

The incorporation of a polyurethane pad, which is resistant to UV rays, weather conditions, and temperature fluctuations, allows the Guard Rails to deflect up to 10 degrees. This feature enhances the railing system's ability to absorb shocks and impacts, thereby significantly minimising potential damage. Additionally, the pad raises the height of the Railing System by 40mm and is secured in place with four chemi-anchors for each post.

PLEASE NOTE GALVANISED AND POWDER COATED ADD 10 DAYS LEAD TIME

https://www.moravia.co.uk/multimedia/video/vi_rammschutz-gelaender-xl-line_bb_multi_mute.mp4

https://www.moravia.co.uk/multimedia/video/vi_rammschutz-gelaender-swing_bb_multi_mute.mp4
