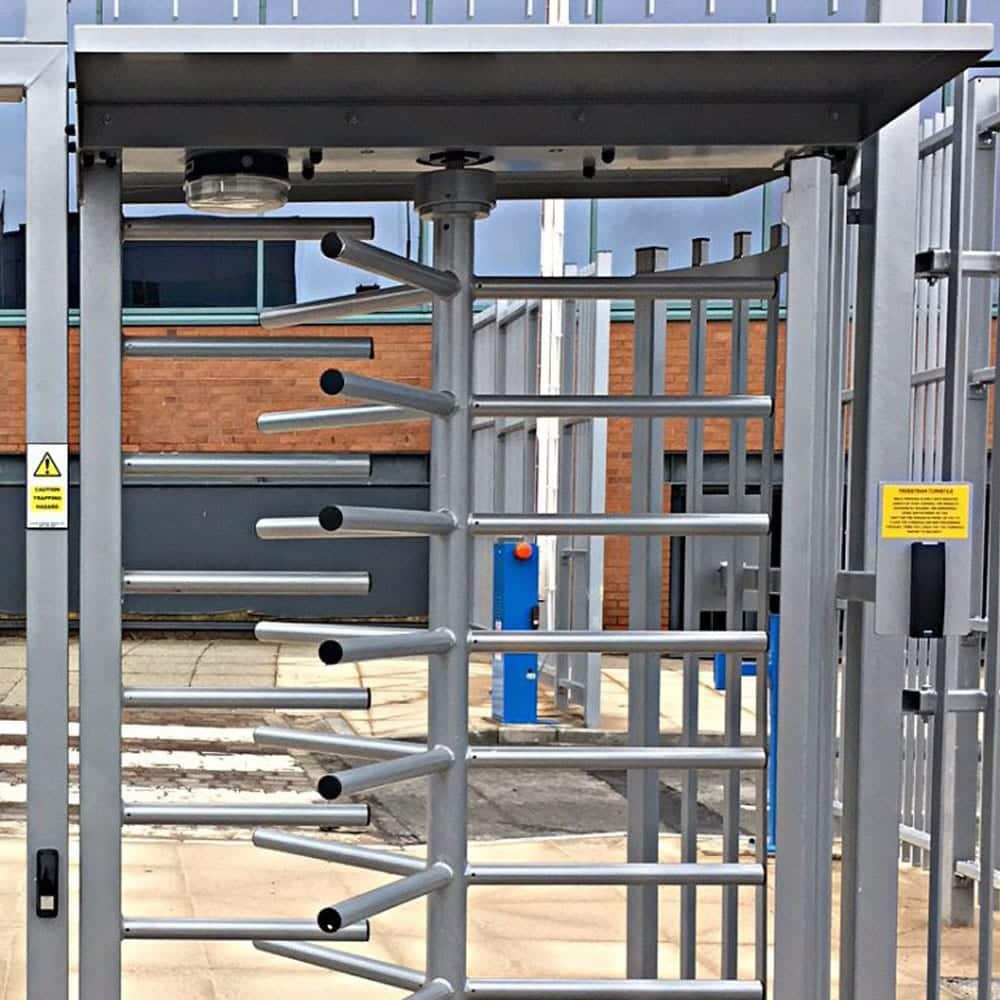

Dalby Full Height Turnstile Pedestrian Gate

Full Height Single Turnstile 120 degree

The SFD 4000 Full Height Turnstile Pedestrian Gate is designed and manufactured to the highest specification using top quality components and materials offering rugged reliability and durability for any solution whether controlling pedestrian traffic, incorporated as part of a perimeter system enhancing security or retrofitted into an existing fence line. The SFD 4000 is also suitable for internal applications where ceiling height is an issue.

The SFD 4000 Full Height Turnstile Pedestrian Gate is designed and manufactured to the highest specification using top quality components and materials offering rugged reliability and durability for any solution whether controlling pedestrian traffic, incorporated as part of a perimeter system enhancing security or retrofitted into an existing fence line. The SFD 4000 is also suitable for internal applications where ceiling height is an issue.

Applications include : Airports, Perimeter Security Fencing, Warehouse, Construction Sites, Lorry Parks, Harbor Authorities, Road, Rail & Freight Depots, Refineries, Industrial Sites, General Industry. This list is not exhaustive.

Available as a single or double turnstile configuration in a choice of three models, SFD 4000P, 4000G and 4000GP it is widely recognised within the industry as the best in class’ and the ideal solution for controlling pedestrian access providing a secure perimeter environment with the ability to monitor staff movement for purposes of time and attendance or health and safety.
The SFD 4000 is smooth and quiet during operation and being 100% Duty Cycle Rated offers continuous operation for heavy foot traffic.

The SFD 4000 Full Height Turnstile Pedestrian Gate is available with a variety of options including a Double Turnstile, Trombone Arms, 90 Degree or 120 Degree Arms and can be supplied flat packed or delivered fully assembled for immediate installation.

Black as standard in stock, RAL 9005.

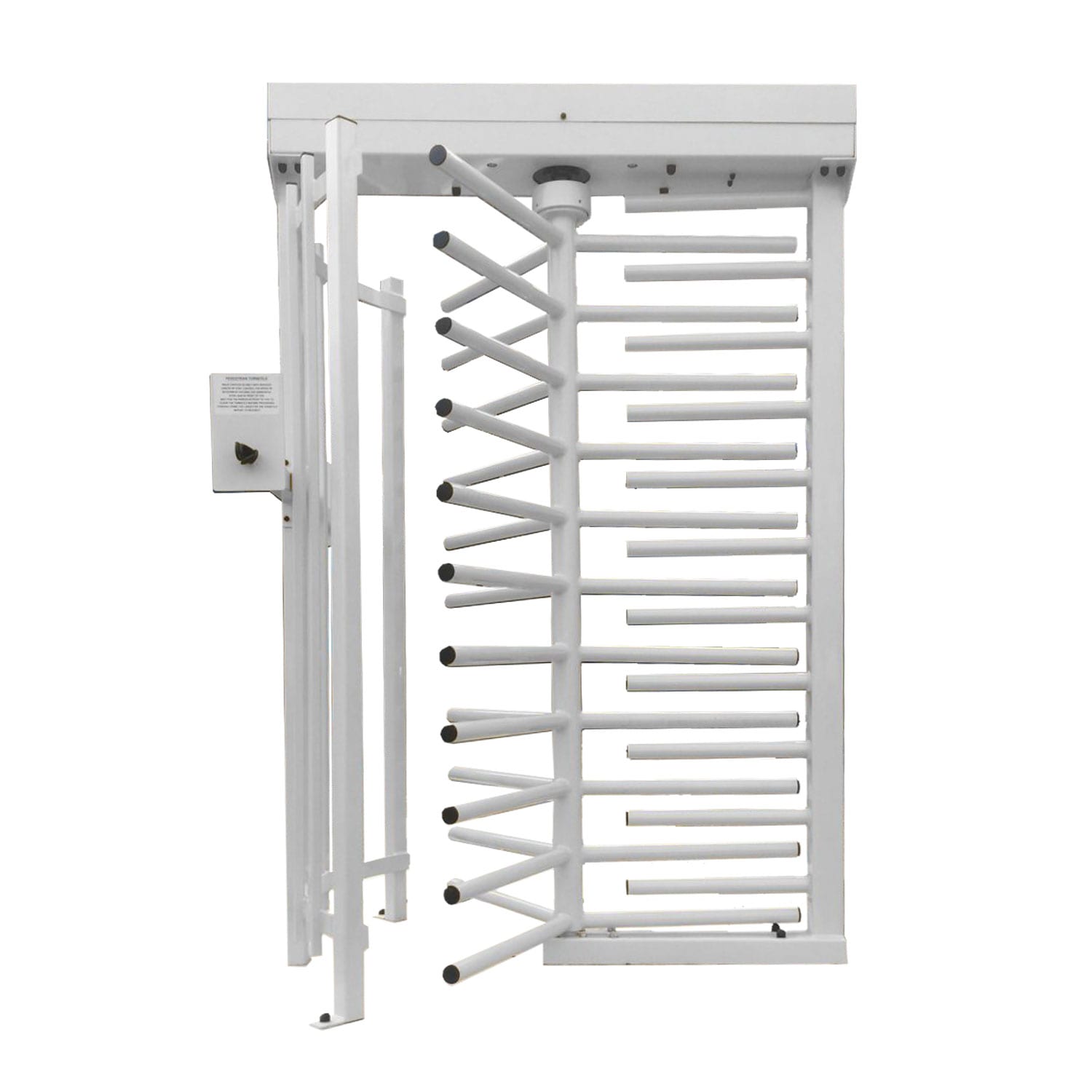

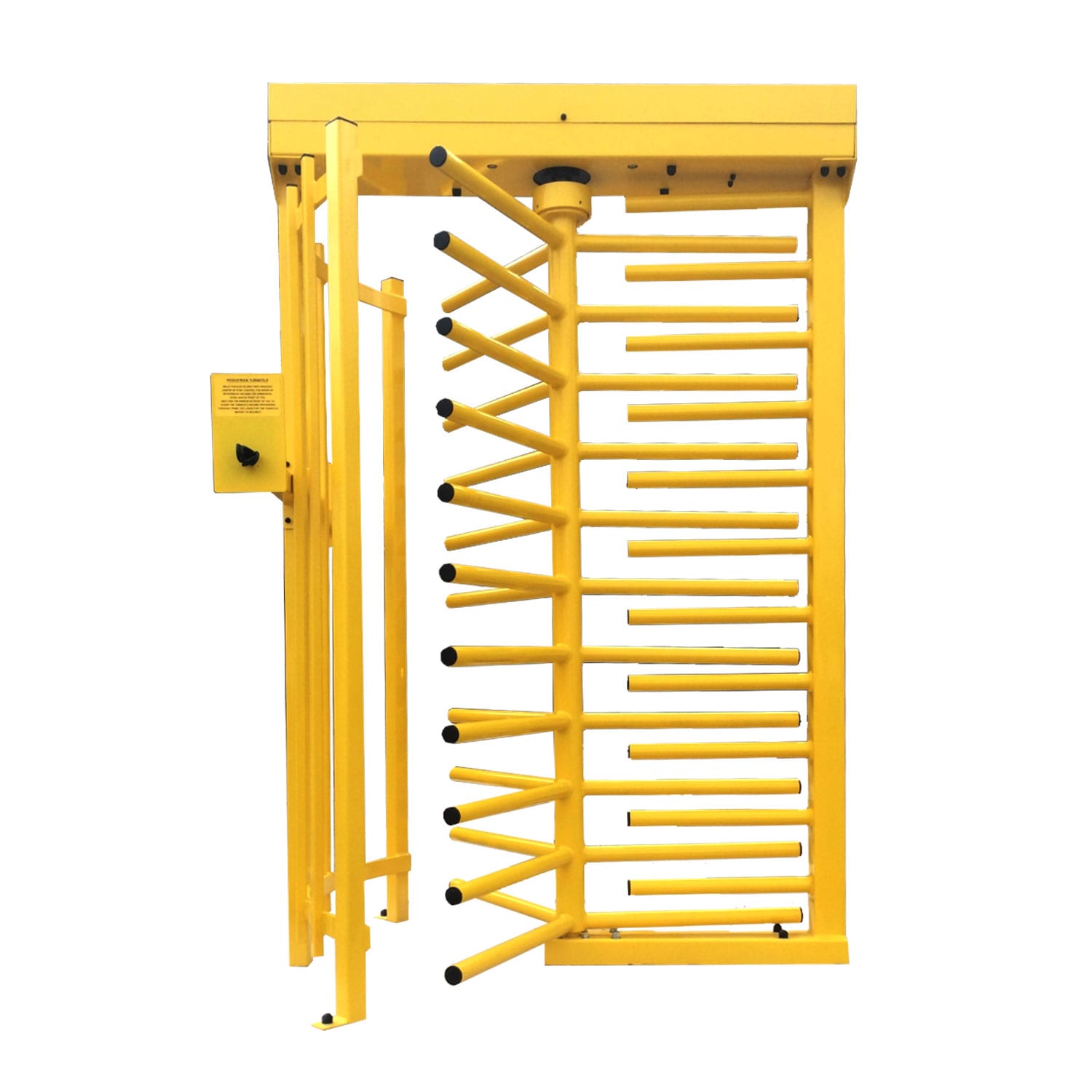

A list of standard colours which are also available are:- RAL Range: RAL 3003 Dark Red, RAL 3020 Red, RAL 1023 Yellow, RAL 2004 Orange, RAL 6005 Dark Green, RAL 6032 Green, RAL 6018 Light Green, RAL 5003 Dark Blue, RAL 5002 Blue, RAL 5017 Blue, RAL 9006 Grey, RAL 7001 Grey, RAL 9010 White, these will incur and additional lead time,

It is ideal for construction sites where the need for security to prevent the loss of equipment is essential. This full height turnstile is suitable for either internal or external locations. It has a compact and robust design combined with a cost effective and reliable operating mechanism.

This makes it the ideal choice for areas where previously security had been desirable but the cost implications had been prohibitive, whether on construction sites, industrial premises, warehouses, transport hubs, airports or stadiums.

Applications	Airports, Perimeter Security Fencing, Warehouse, Construction Sites, Lorry Parks, Harbor Authorities, Road, Rail & Freight Depots, Refineries, Industrial Sites, General Industry,
Construction	Frame - Steel Rotor - Steel

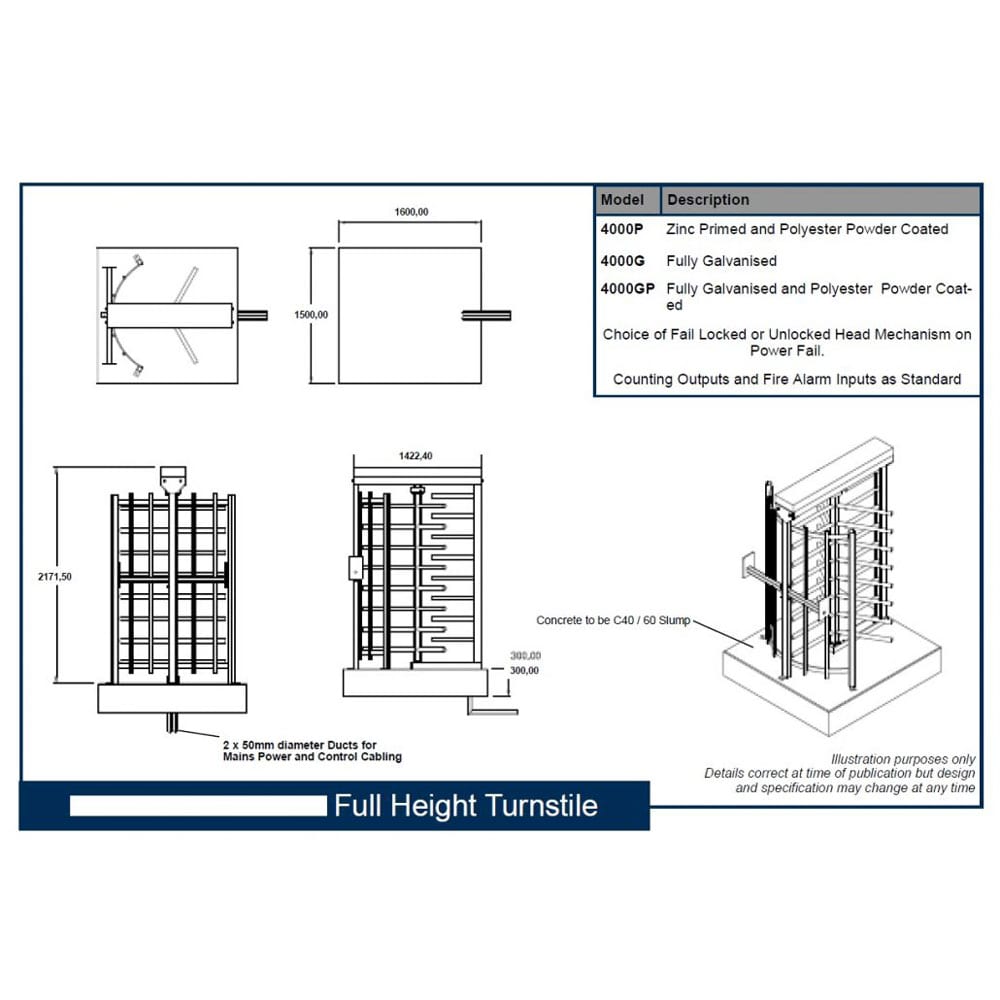

Dimensions	Single Turnstile - 1450mm W x 1200mm D x 2175 H Double Turnstile - 2180mm W x 1200mm D x 2175 H
Rotor Configuration	Straight Arm 120 Degree Standard Straight Arm 90 Degree Model available as an option *Trombone Arms available as an option extra*

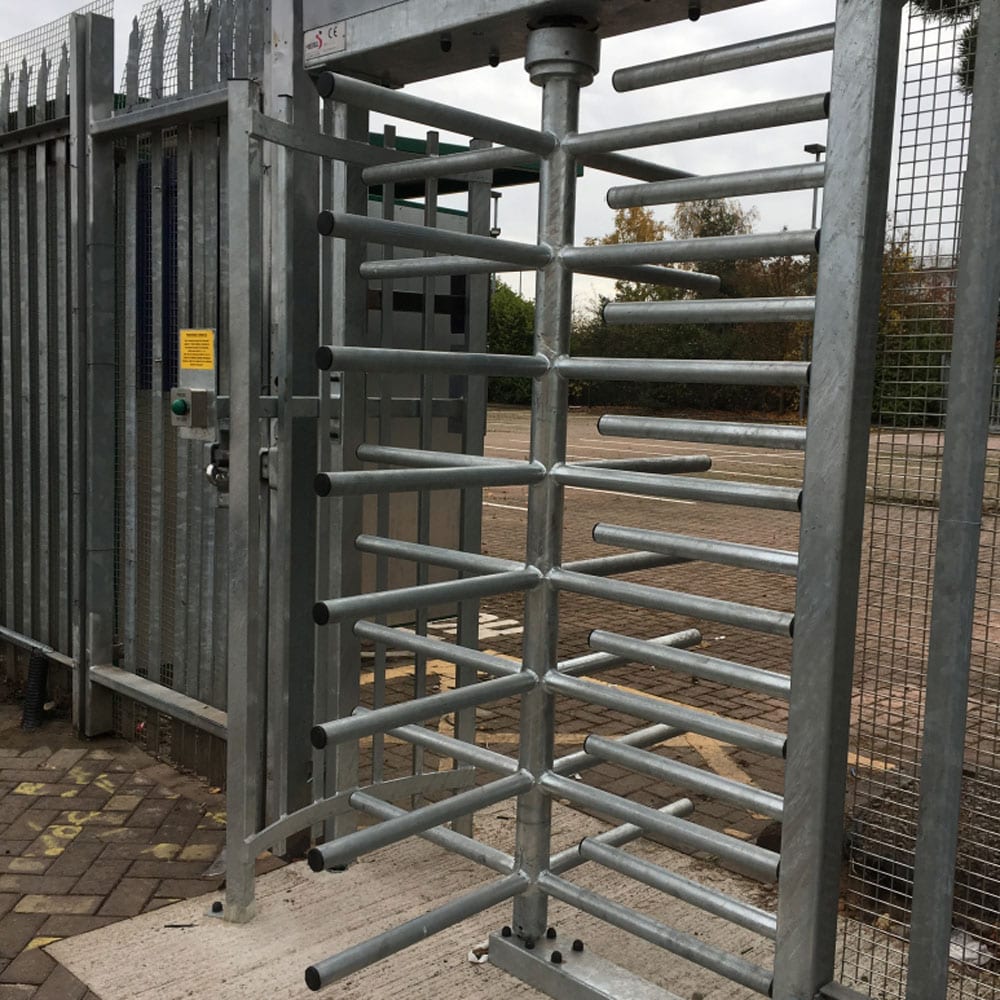

Surface Finish	Model SSTS 4000P - Shot Blast, Zinc Primed & Smooth Powder Coated Model SSTS 4000G - Galvanised Model SSTS 4000GP - Galvanised & Smooth Powder Coated
Supply	230v 1ph 50Hz
Load	3 Amps
Rating	Control Panel Electrical Enclosure Rated at IP56
Emergency Over ride	Manual control included as standard
Control Systems	Card Reader Systems, Digital Keypad, Push Button, Bometric Readers, Intercom System

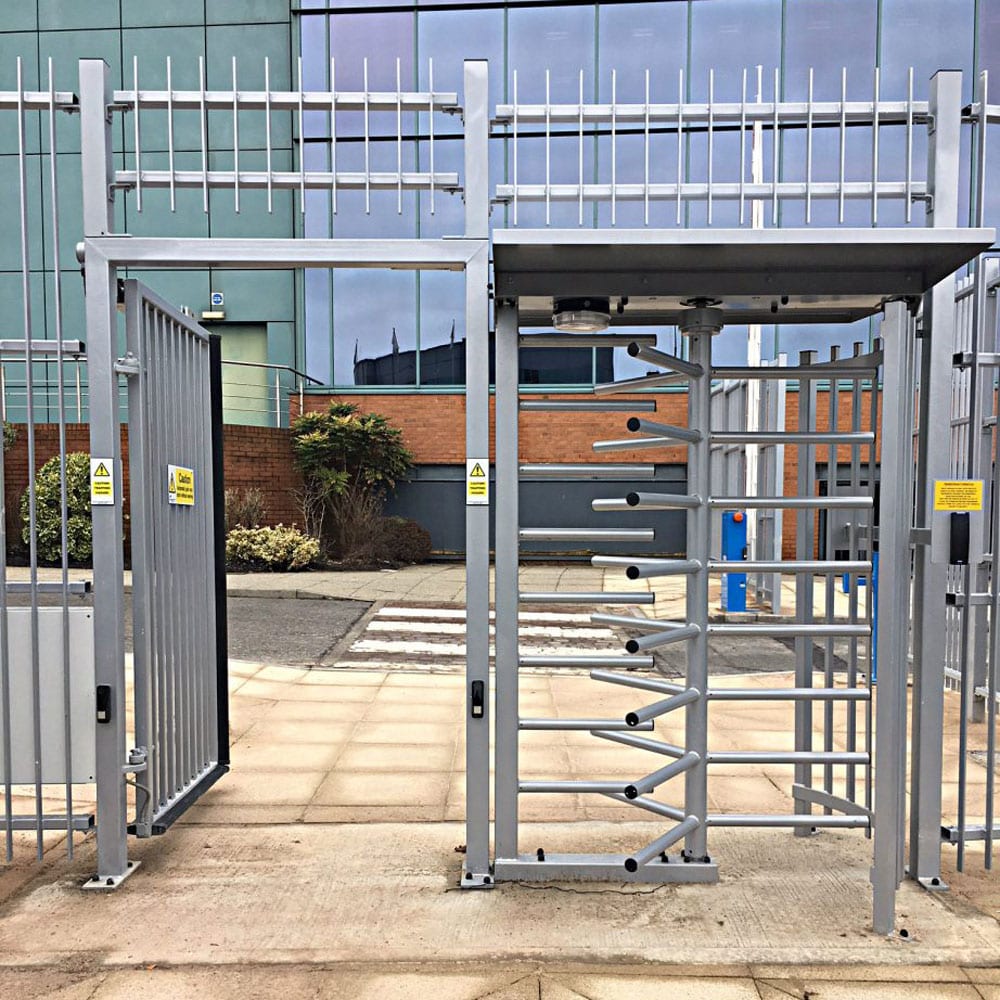

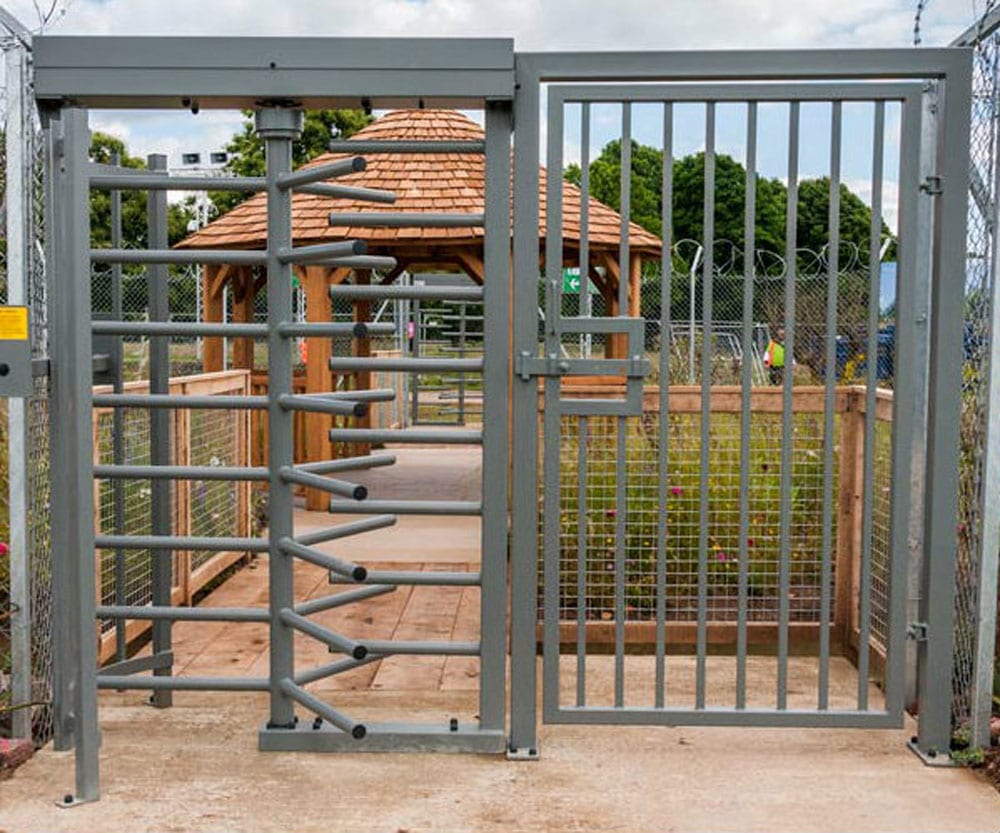

Accessories	Overhead Canopy, Lights, Ped Gate
