Manual Swing Barrier Gate | Single Leaf Access Gate

Manual Swing Barrier Gate: Single Leaf Access Gate, 3m to 6m

A simple, strong steel gate for closing off roads, car parks, farm tracks, yards and site entrances. It swings open by hand, and a self-locking catch holds it shut. Add a padlock and it's secured. It's a low-cost choice for unmanned sites and low-traffic entrances, where an automatic barrier would be more than you need. Each gate is made to order to your exact width.

Key facts

• Widths (between posts): 3m, 3.5m, 4m, 4.5m, 5m, 5.5m or 6m
• Height: 1000mm
• Hinge post: 100mm box section, 3mm or 5mm thick depending on gate size, with heavy duty adjustable eyebolts
• Gate: 50mm x 3mm steel box section
• Catch: heavy duty, galvanised, self-locking, with a padlock facility
• Finish: powder coated, galvanised, or galvanised and powder coated
• Made to order: to your exact width

Which finish should I choose?

Powder coated gives you a choice of 7 colours, including high-visibility yellow and red. Galvanised gives the best protection against rust and suits rural, exposed or coastal sites. Galvanised and powder coated gives you both: the rust protection of galvanising with a coloured finish on top, for the longest life.

Please note: this gate is not suitable for marine environments unless a galvanised finish is selected.

Options

• Colour (powder coated finishes): Yellow RAL 1021, Red RAL 3020, Black RAL 9005, Green RAL 6005, White RAL 9016, Sky Blue RAL 5015 or Anthracite Grey RAL 7016
• Fixing: surface mounted or root fixed
• Lock shroud: covers the padlock to protect it from being cut or tampered with
• Additional latch post: lets you lock the gate back in the open position
• Signs: 450mm Stop sign and 450mm No Entry sign

Can the gate be locked open as well as shut?

Yes. The self-locking catch holds the gate shut, and you can padlock it closed. To lock the gate back in the open position as well, add the additional latch post (100mm x 3mm box section) from the options. It's a recommended extra if the gate will be left open for long periods, so it can't swing shut in the wind or across traffic.

How is it installed?

The posts can be concreted in or surface mounted. Recommended concrete bases are:

• Concreted in: 800mm deep x 500mm x 500mm, with the post set 760mm into the ground
• Surface mounted: 350mm deep x 450mm x 450mm, with a 300mm x 230mm base plate

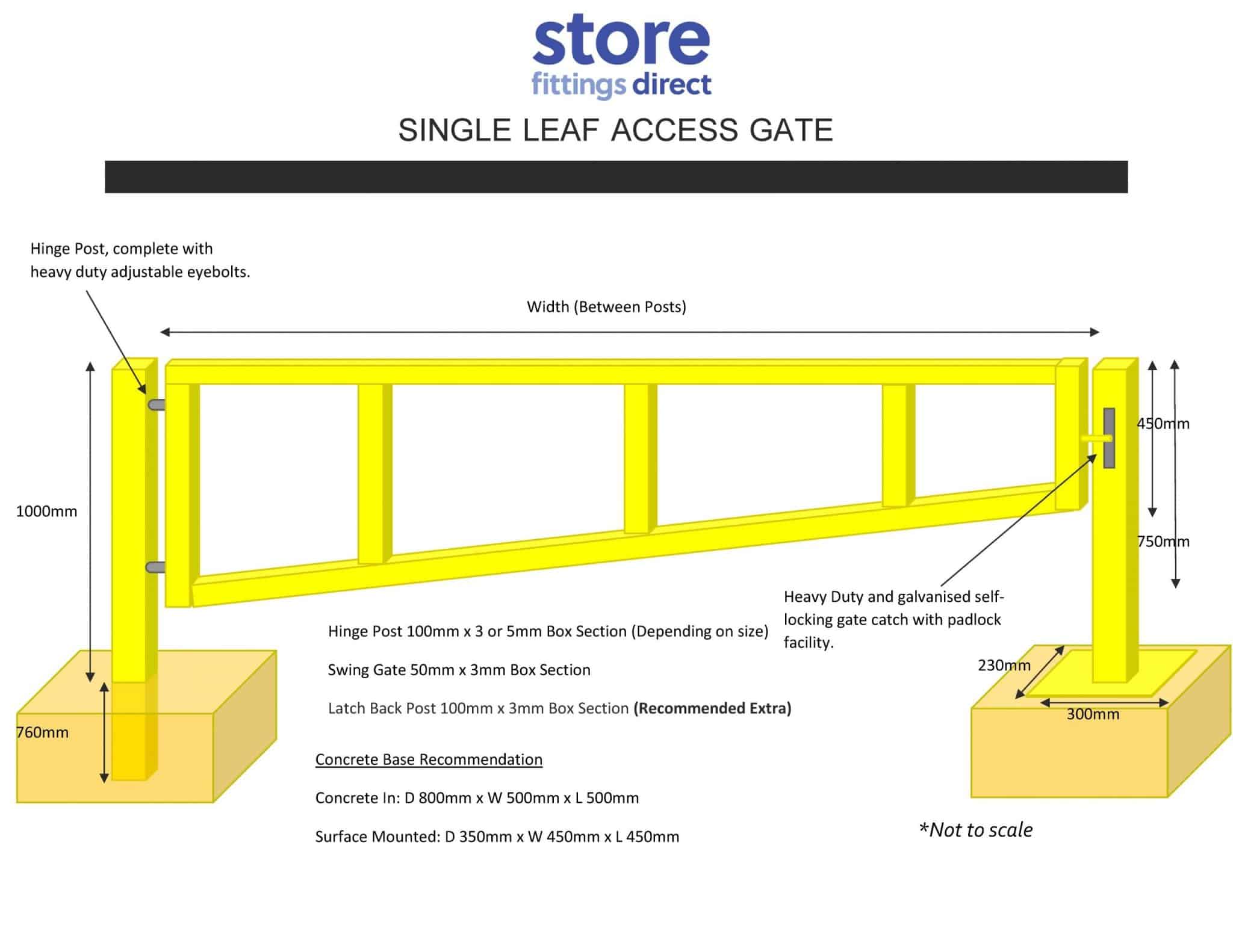

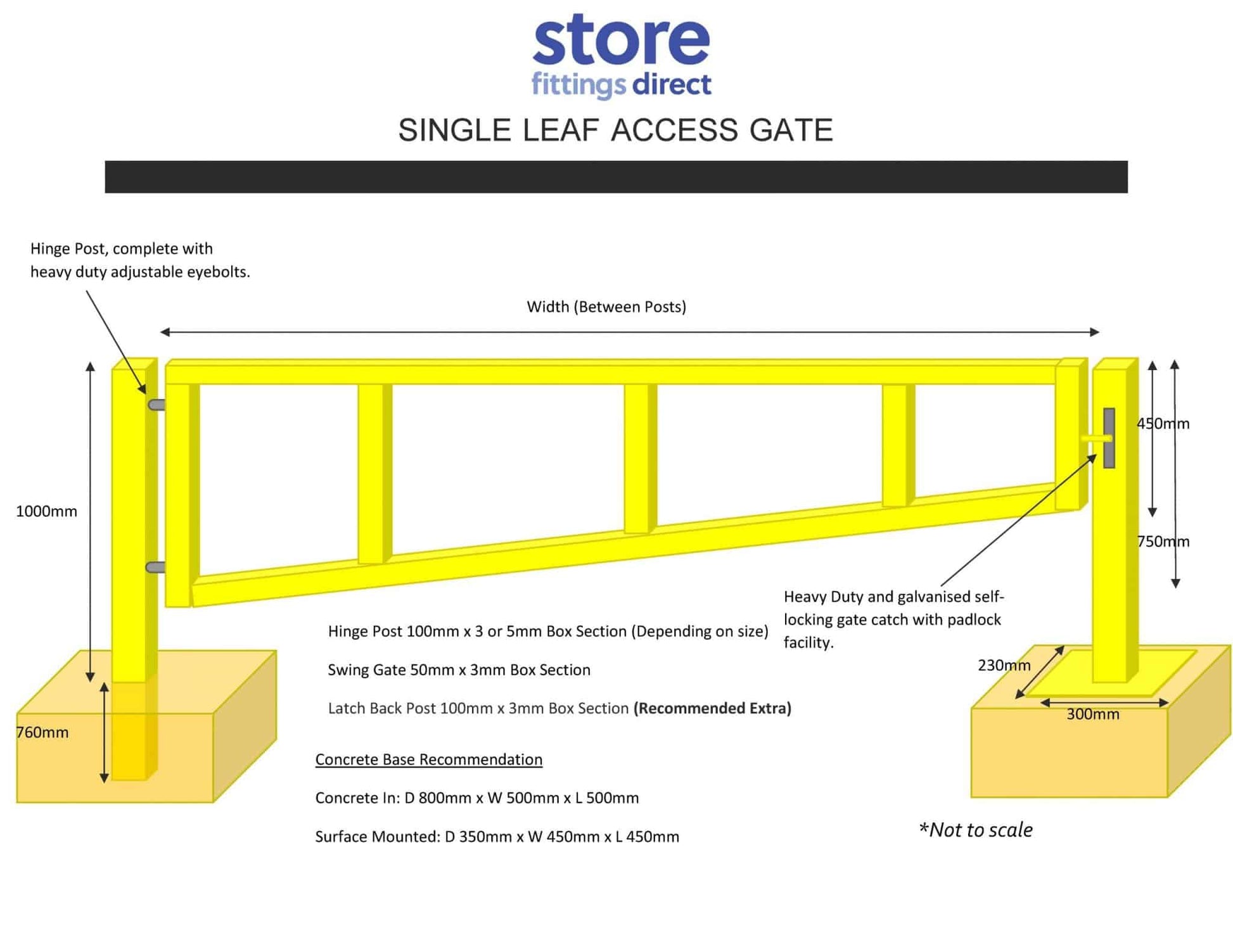

Full dimensions are shown on the drawing in the product images.

How do I order?

• Please put your exact gate size in the special instructions at checkout
• Technical drawings must be completed and returned before we can process your order. Lead times start once the forms are returned.

Why buy from Store Fittings Direct?

• We can install it for you (additional cost). Just ask for a quote
• Trade accounts and help choosing the right gate. Call 0116 318 4182 or contact us
• We're an ISO 14001 certified business

See our full ranges of swing barrier gates and arm barriers.
