Smoking Shelter | Eco | Approx 4-5 Person

Eco Smoking Shelter: Budget Workplace Smoking Shelter

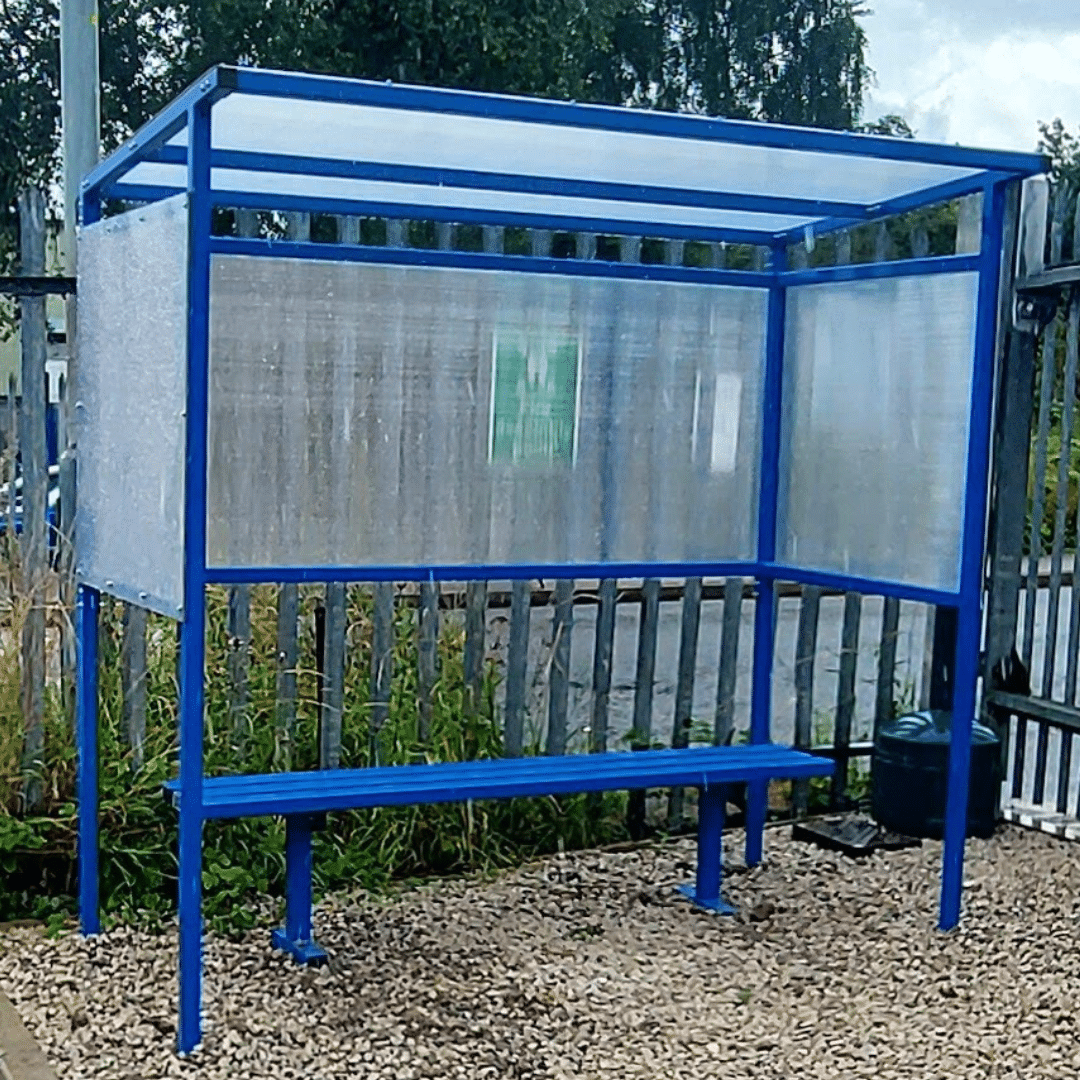

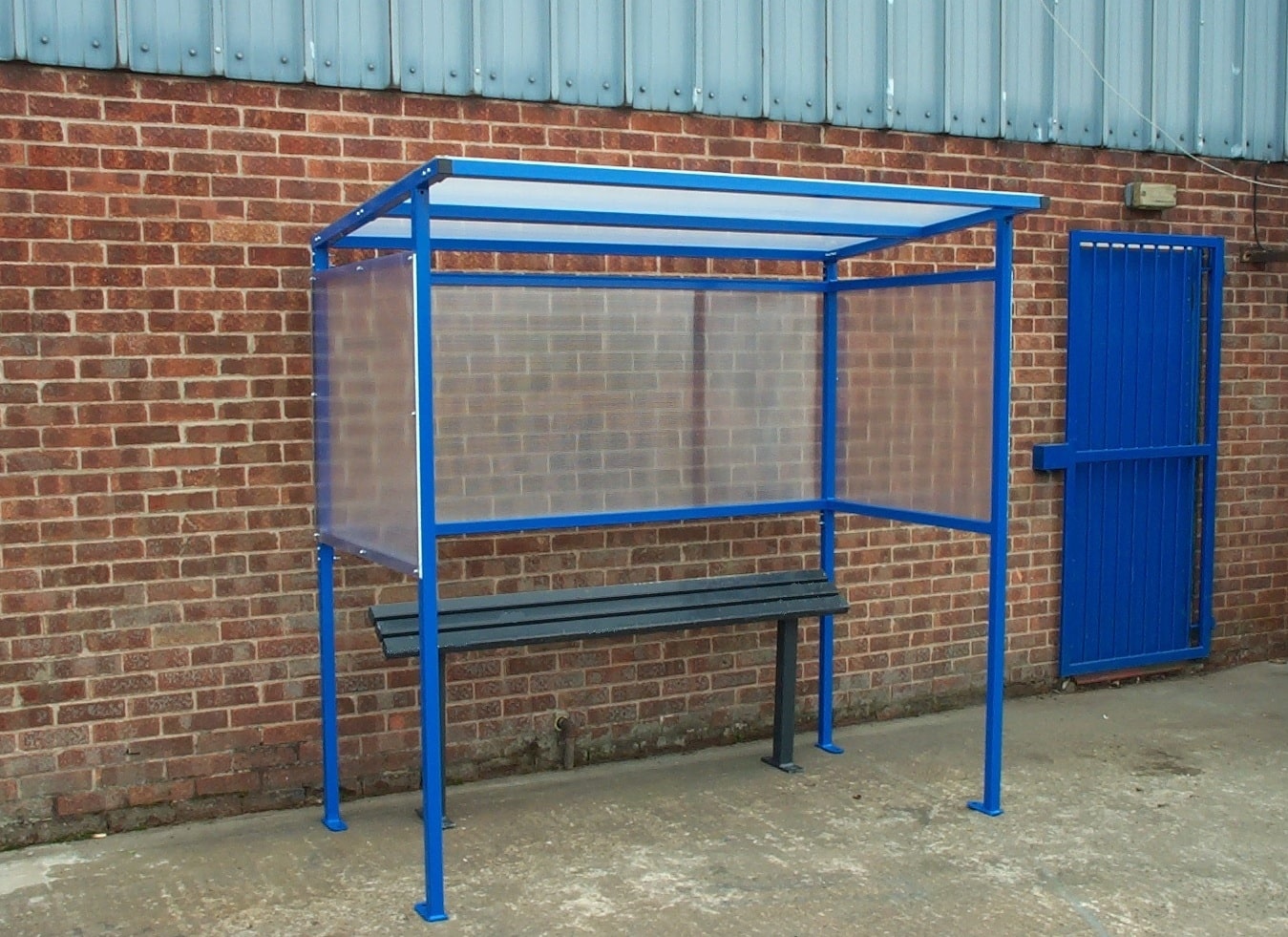

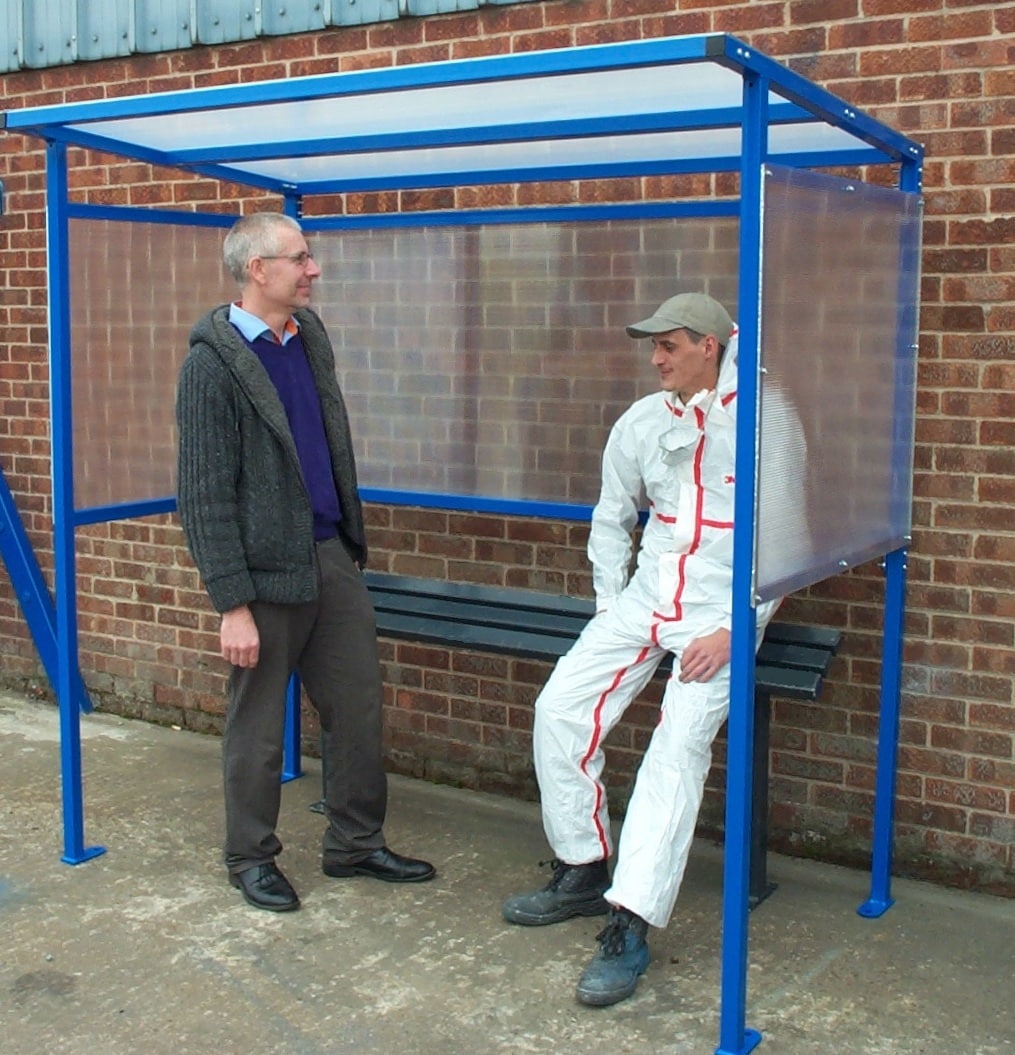

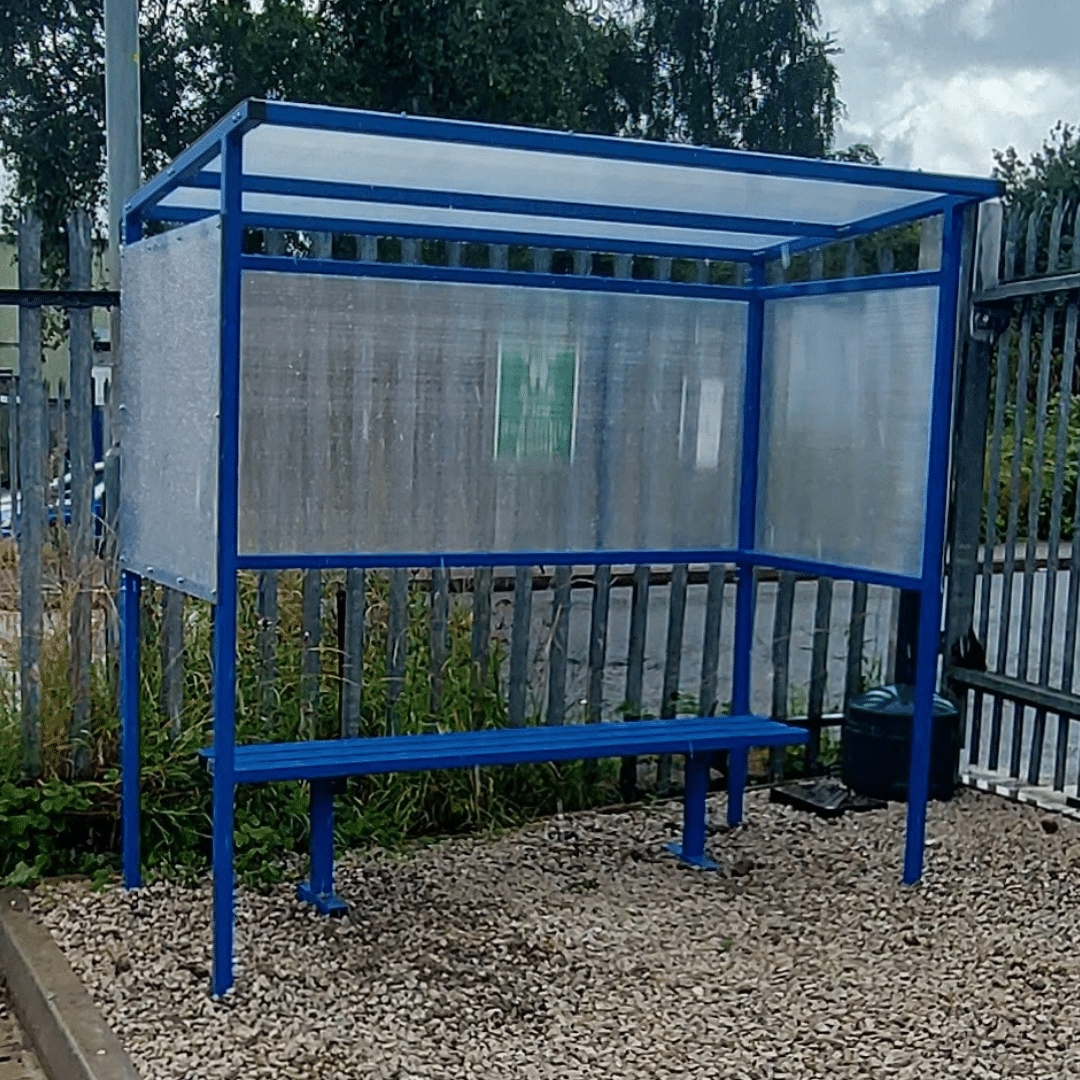

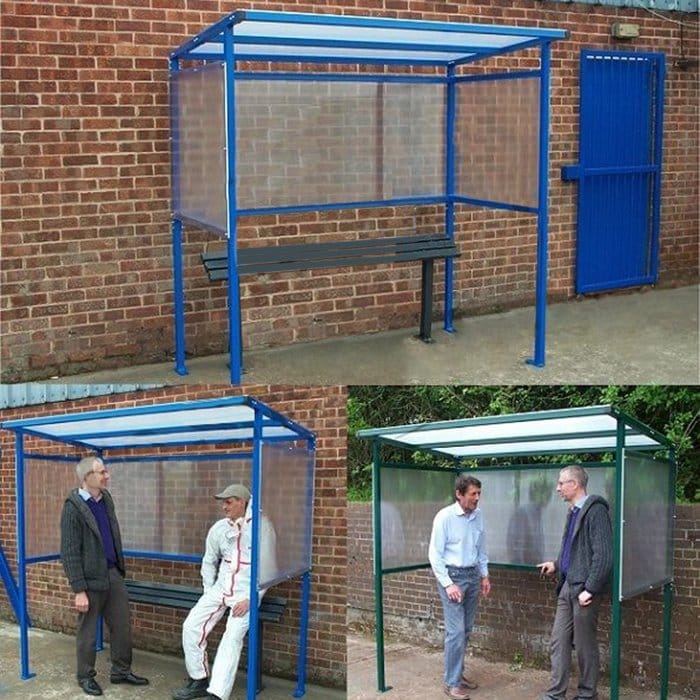

The Eco is our best-selling smoking shelter. It gives staff and visitors a dry, covered place to smoke or vape, away from your entrances. It's a no-nonsense steel shelter at a budget price. We supply it to offices, warehouses, factories, retail sites, pubs and clubs across Great Britain.

Key facts

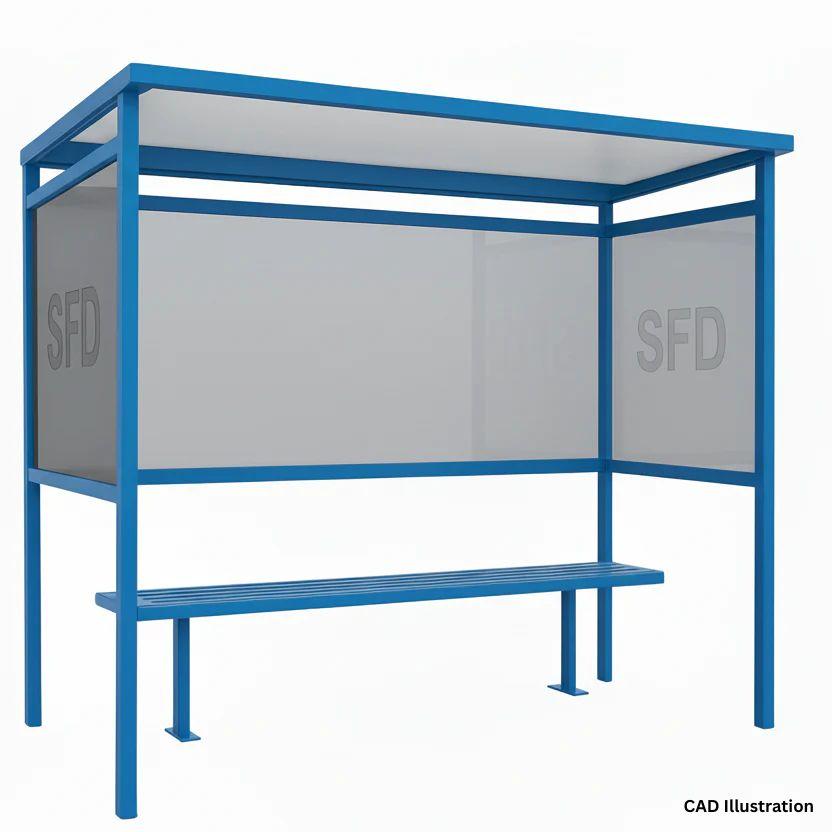

• Covered area: 2050mm wide x 1200mm deep (roof line), 2020mm at the highest point
• Frame: mild steel Strongbox square section to EN 10219
• Panels: twin-wall polycarbonate with a UV-resistant coating. Resists moisture, chipping and cracking
• Finish: CPA Assured galvanised or powder coated, your choice at no extra cost
• Fixing: surface mounted (bolt-down feet, pre-fixed) or root fixed (concreted into the ground)
• Delivery: free to England, Wales and Southern Scotland. Supplied flat-packed for self-assembly
• Guarantee: any manufacturing or material defect put right free of charge

Does the Eco smoking shelter meet UK smoking law?

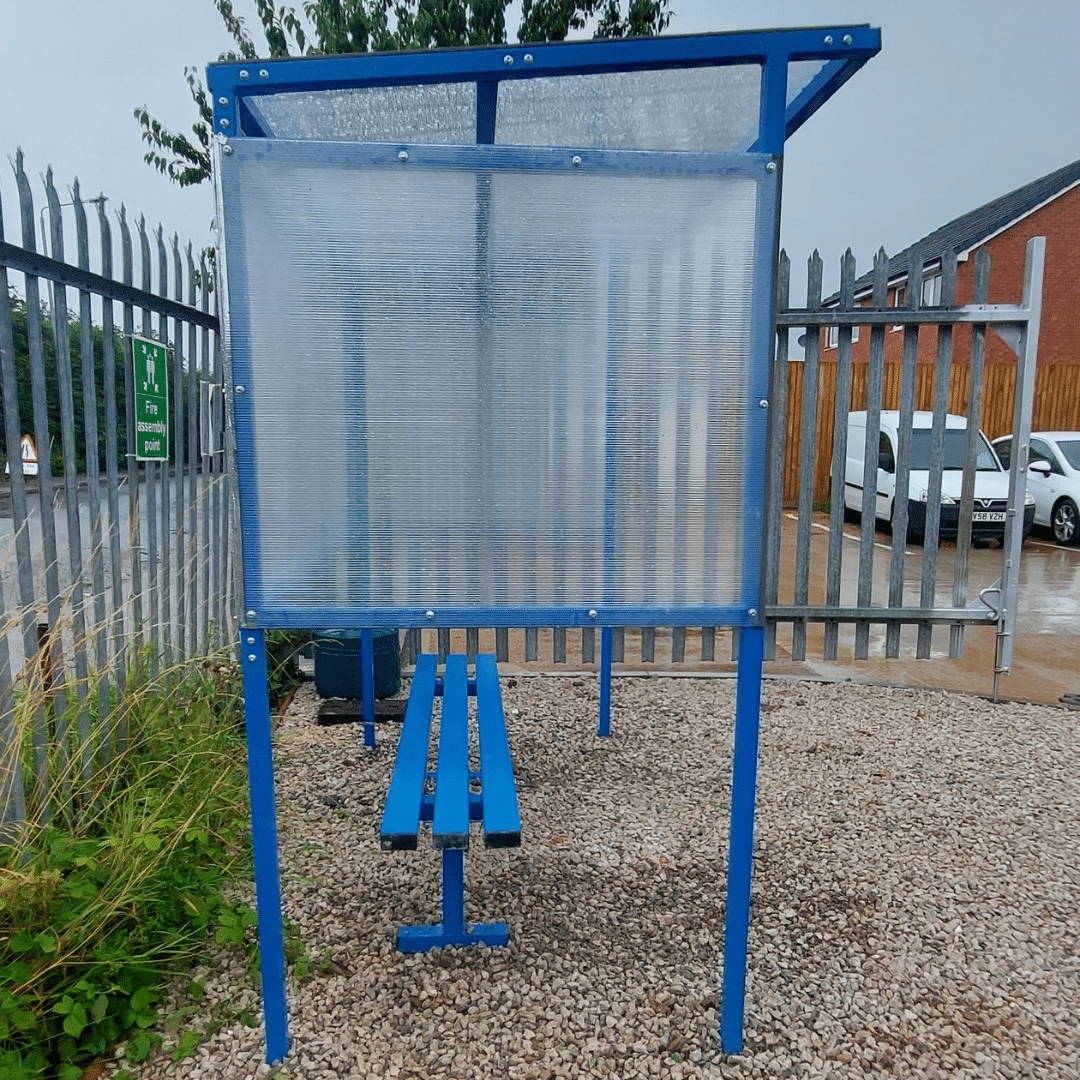

Yes, when it's installed as designed. Under the Smoke-free (Premises and Enforcement) Regulations 2006, a shelter with a roof counts as "substantially enclosed" if less than half of its walls are open. That would make it illegal to smoke in. The Eco is open at the front, and its side and back panels don't run full height, so it stays within the 50% rule. Don't add extra panels or put it tight against a wall or fence, as that can make it non-compliant. As the site owner, you're responsible for making sure the finished installation complies.

Surface mounted or root fixed: which do I need?

Surface mounted bolts straight down onto existing concrete, paving slabs, block paving or tarmac. It's the quickest option and the one most customers choose. Root fixed has longer legs that are concreted into the ground. It suits soft ground, or sites where you want the shelter fixed permanently.

Where should I put a smoking shelter?

Keep it away from doorways, opening windows and air intakes, so smoke doesn't drift back into the building. Council guidance commonly recommends leaving about 1.5m between the shelter and nearby walls or structures, so air can flow through. Some councils say smoking shelters need planning permission, so check with your local council before you install.

What else can it be used for?

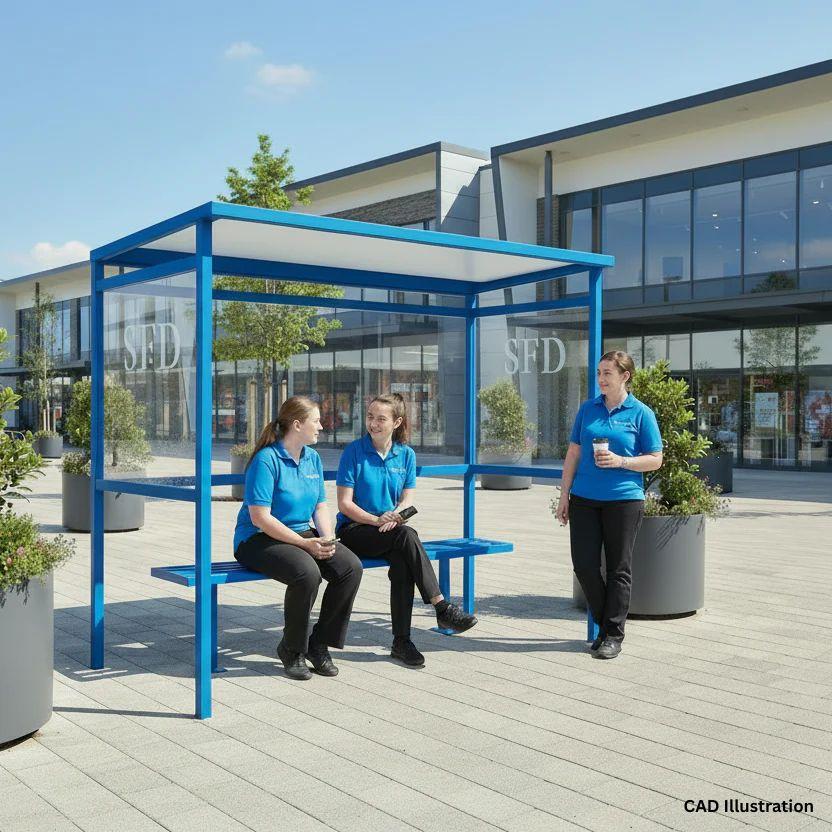

Plenty. The Eco also works well as a staff break area, a parent waiting area at schools and nurseries, or a spectator shelter at sports grounds.

Why buy from Store Fittings Direct?

• We can install it for you (additional cost). Just ask for a quote
• Trade accounts and help choosing the right shelter. Call 0116 318 4182 or contact us
• We're an ISO 14001 certified business

Need something bigger or with seating? See our full range of smoking shelters.
