Priced per barrier

Swing Height Restrictor Barrier

Product ID 82916001 4.8 Store rating, 55 reviews Made to order
Specify Choose your options
Barrier Width
Fixing Type
Your selection 3m Width / Surface Mounted
Our Price£1,322.60£1,587.12 £1,587.12 inc VAT£1,322.60 ex VAT
In stock
You could have this between Mon 23rd Nov and Mon 30th NovUsually dispatched within 4 days

Happy to take a purchase order. Add to Quote if you need a formal price for a tender pack.

Not sure which width you need?

Measure the full width of the road or entrance at the point the barrier will sit, and tell us whether it has to lock. If you are between sizes we will tell you which way to go.

Several of these are made to order and need technical drawings agreed before the order can be processed. We send the drawings over once you order, and the lead time starts from the day you return them approved.
Galvanised is hot dip zinc and is the hard-wearing choice for an entrance open to the weather. Galvanised and powder coated is zinc first with colour over the top, so you get the protection and the visibility. Posts are either bolted down to an existing concrete base or concreted in, and the specification tab says which.
Swing Height Restrictor Barrier Catch Post - Store Fittings Direct

Swing Height Restrictor Barrier

£1,322.60 ex VAT
£1,587.12 inc VAT
Earliest Est. Delivery
Mon 23rd Nov
Over 1.3 Million Products Sold The UK's No1 Fastest Growing Shop Fitting Provider

Swing Height Restrictor Barrier

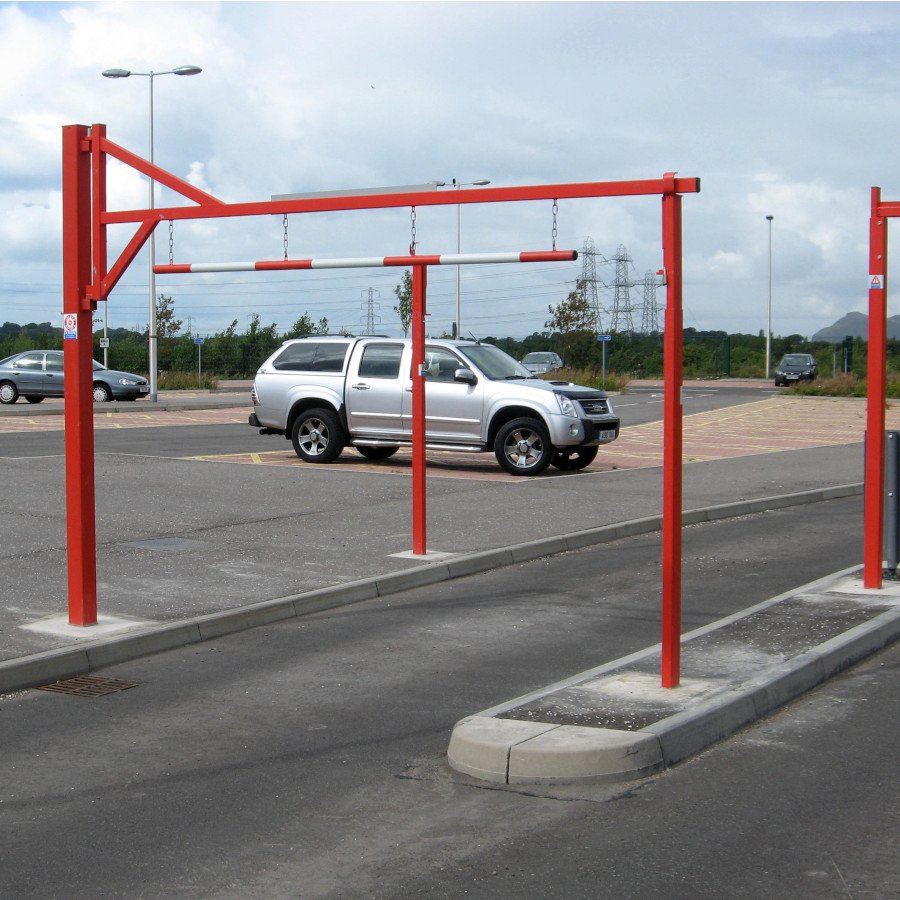

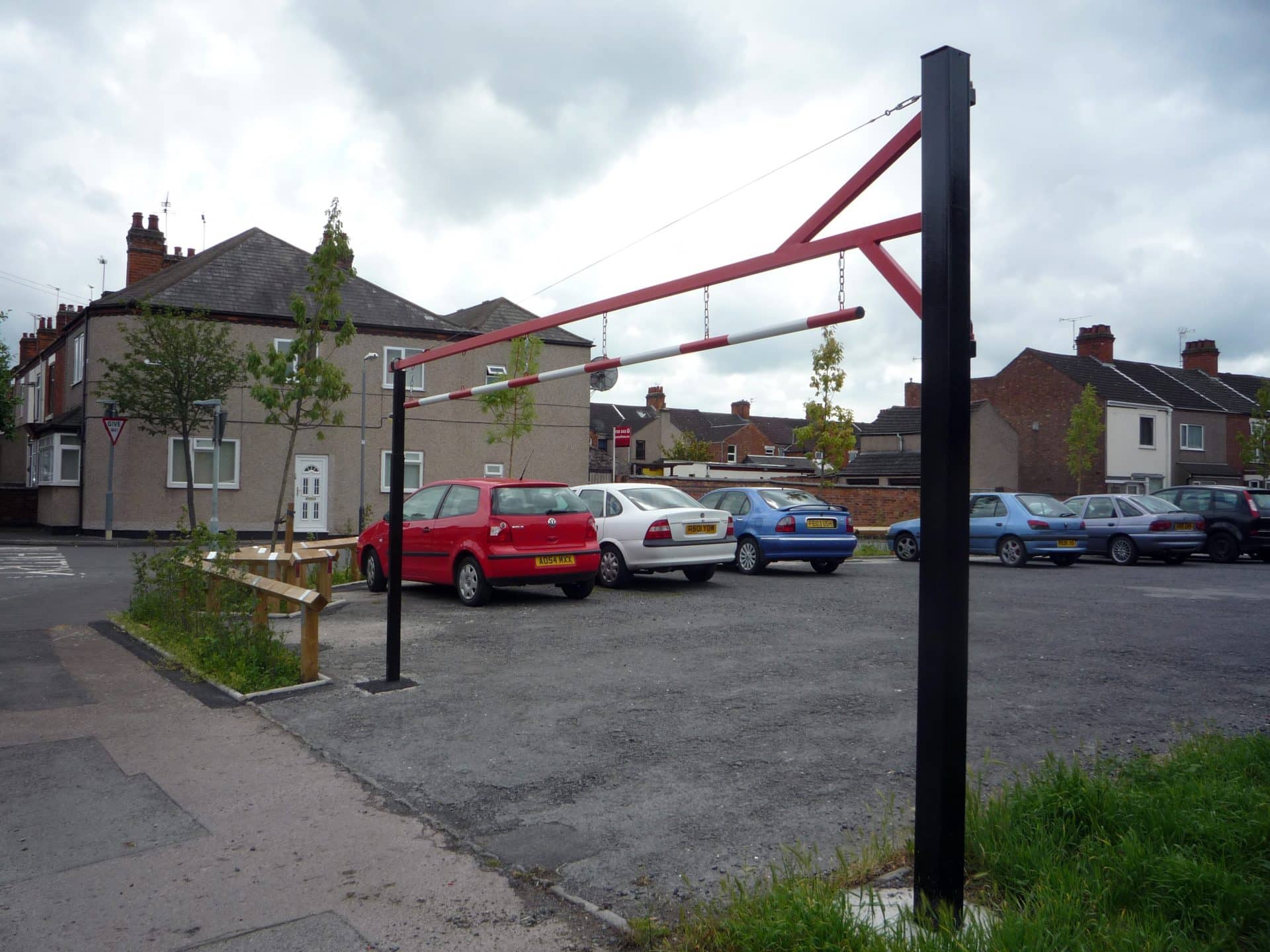

Our Swing Height Restrictor has a standard clearance of 2.05m, limiting access to high sided vehicles and is perfect for use on commercial and industrial sites. The beam can be opened to allow full access when needed and can be locked in the open position if necessary using a second catch post.
Manufactured from galvanised mild steel, the body of the height restrictor is coated red as standard (other colours are available upon request; please state BS/RAL numbers at time of order). The Swing Height Restrictor is available ragged or flanged and as an optional extra can be fitted with a knocking bar and/or a maximum height warning sign upon request.

Knock bars to suit the barrier can be supplied at an extra cost.

The standard clearance is 2.05m with a knock bar, 2.2m without a knock bar.

Features:

  • Easily installed.
  • Restricts access.
  • Strong construction.

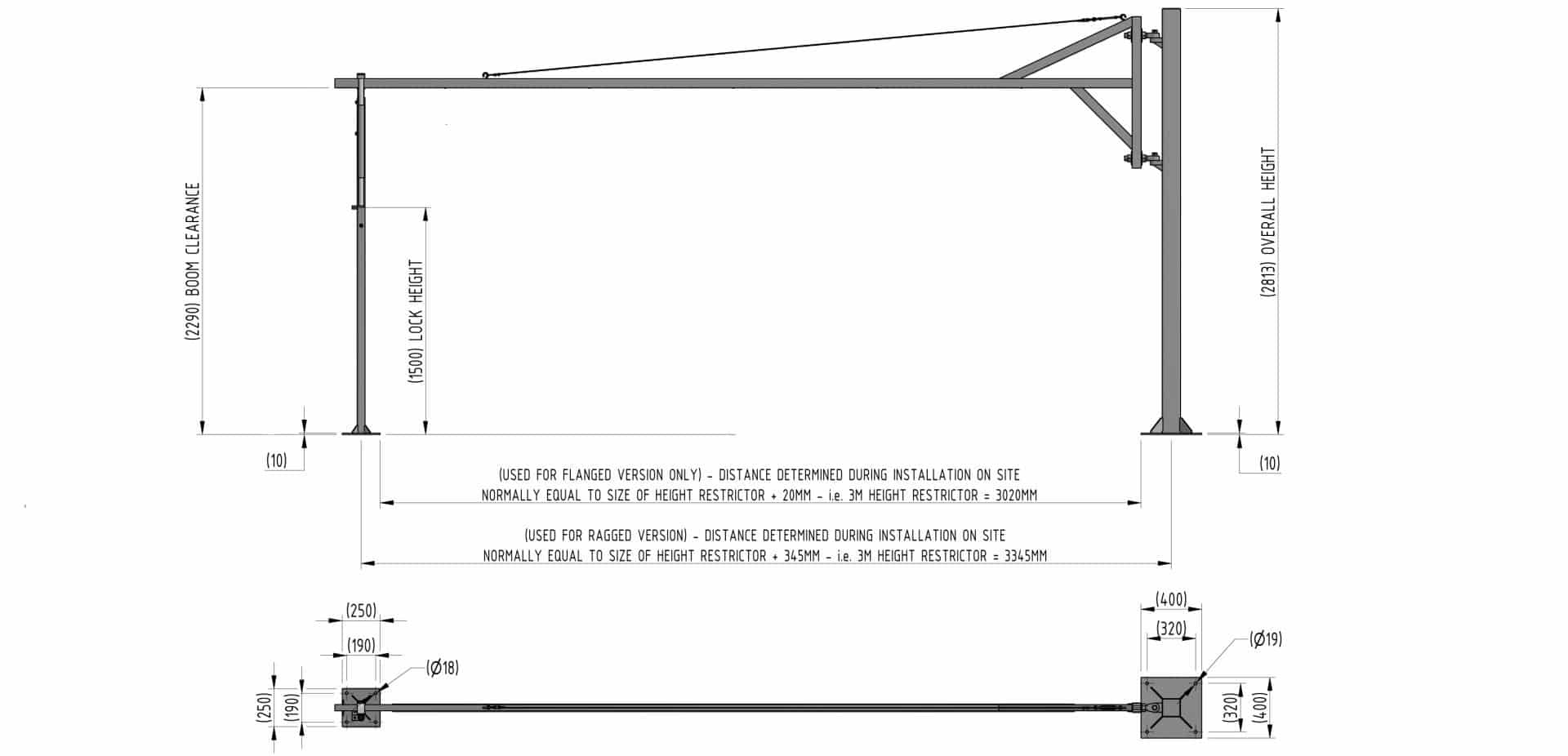

Product details:

  • Standard Clearance: 2.2m (without a knock bar)
  • Standard clearance: 2.05m (with a knock bar) - Optional Extra
  • Main body 90mm x 90mm square tube
  • Main Gate Arm: 60mm x 60mm square tube
  • 3mm wall thickness
  • Concrete in 600mm (below ground)

Surface car parks, retail car parks, multi-story car parks etc.

Note: We recommend that appropriate signage is used with this product.

SKU:82916001
