Outdoor PCAP Touch Screen Totem: Freestanding, IP65, 43" to 65"
An interactive, sunlight-readable freestanding touch screen poster built for the outdoors, with IP65 or IP56 weather protection, IK10 vandal resistance and a built-in Android media player.

*49", 55" and 65" models. **Terms and conditions apply.
This is the PCAP touch screen version. Every size on this page has a projected capacitive touch screen fitted as standard, so people can tap, swipe and zoom. All specifications and downloads on this page are for the touch screen models.
Interactive Outdoor Information, No Wall Needed

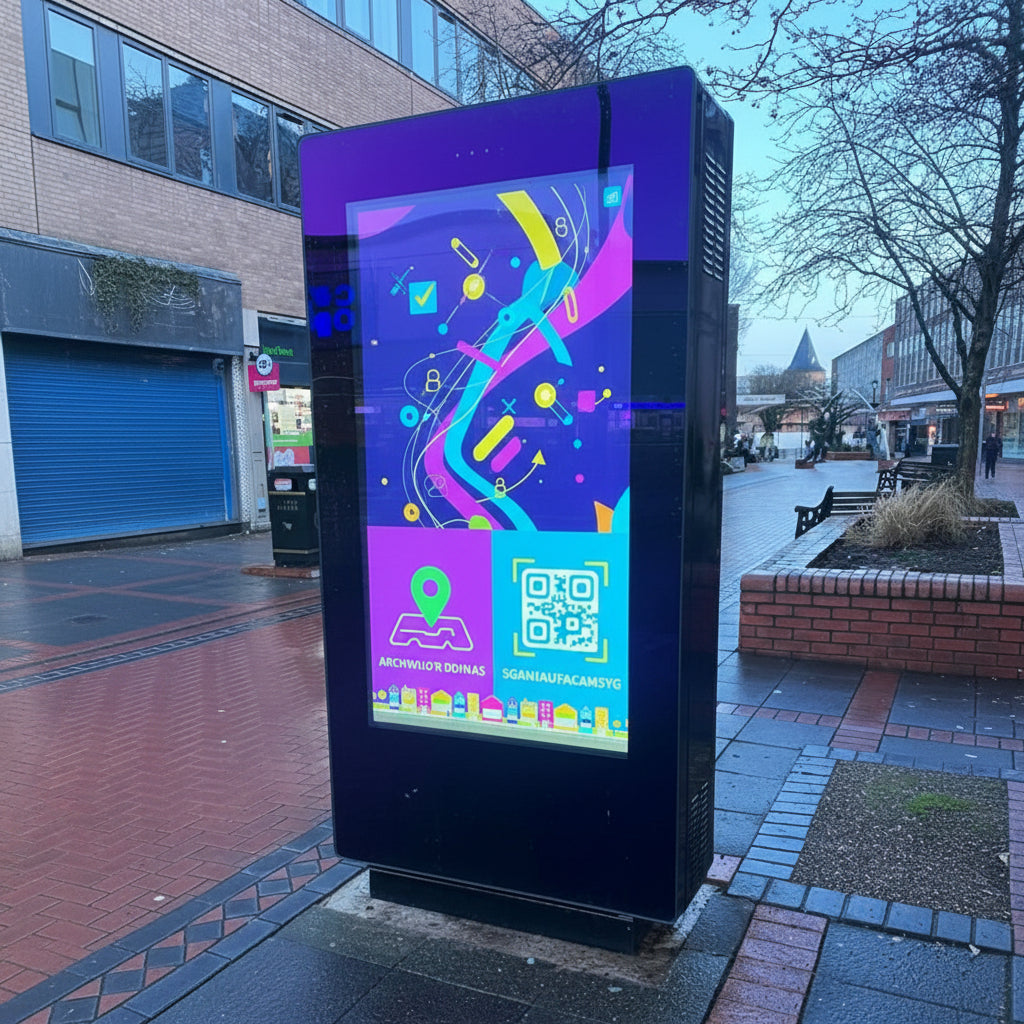

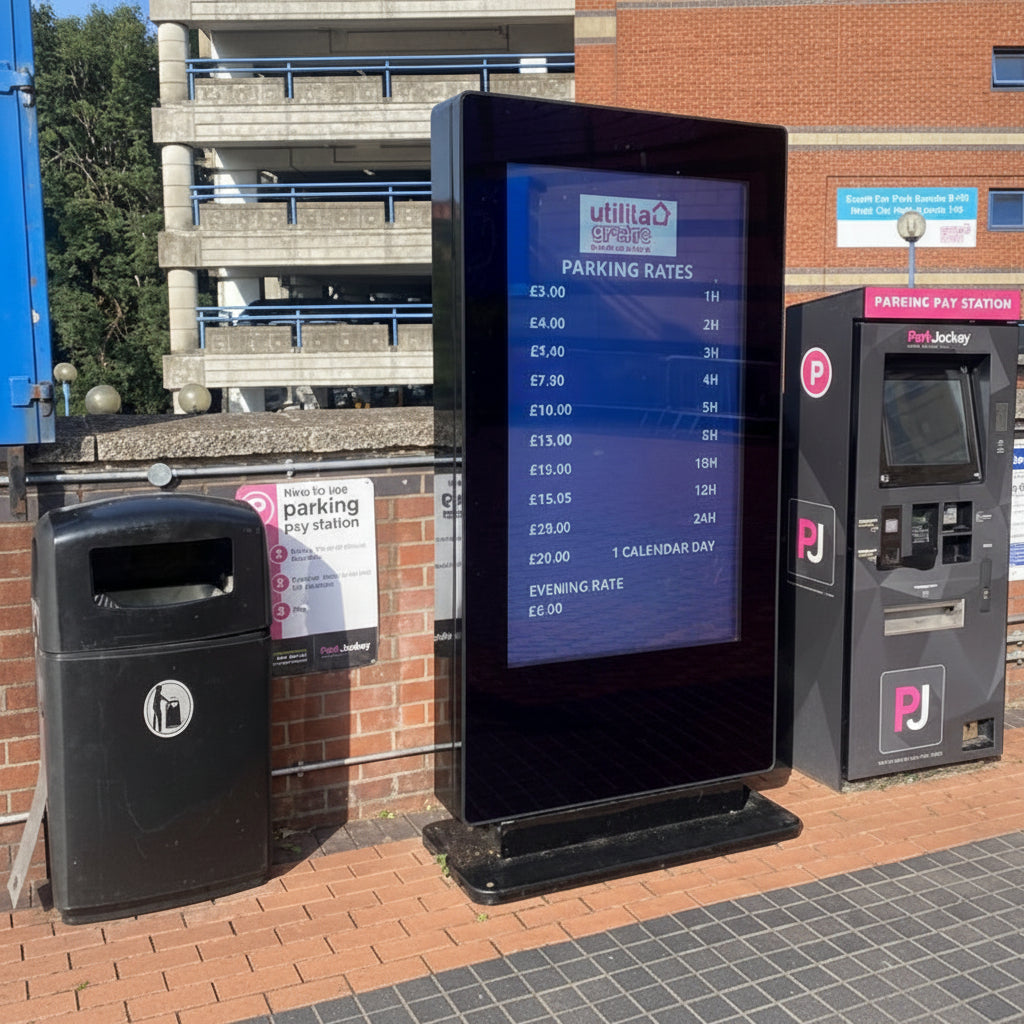

Ideal for town centre wayfinding and maps, shopping centre and retail park walkways, transport hubs, campuses, visitor attractions, events, drive-throughs and building entrances. Let people find what they need, browse offers or check in without queuing, day or night.
Which size? The 43" suits entrances and tighter walkways; the 49" to 65" give larger 4K touch areas for maps, menus and directories. For advice, call us on 0116 318 4182.
Projected Capacitive (PCAP) Touch
This is the interactive touch screen version. State-of-the-art projected capacitive technology gives the most responsive, sensitive touch experience available, with superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the screen surface, so it keeps working outdoors.


No Ghost Touch & 10 Touch Points
The touch electrodes are sandwiched between two layers of special protective glass to stop phantom touches, for accurate, reliable input in all weathers. Ten touch points support pinch, zoom and swipe, and the glass is rated 7H minimum hardness.
Readable in Direct Sunlight
Commercial grade ultra-high brightness panels (2,500cd/m², or 3,500cd/m² on the 55" 4K Elite) are up to 10 times brighter than a domestic TV (13 times on the 55"), so maps, menus and information stay easy to read in direct sunlight. An ambient light sensor adjusts brightness to suit conditions.


IP65 Weatherproof
A robust IP65 enclosure (IP56 on the 55" 4K Elite) protects against rain from any direction and airborne dust. Internal circuit boards have a waterproof coating and the AV connectors are waterproof over-moulded, so the totem is built for year-round British weather.
IK10 Vandal Proof
A mild steel enclosure and thermally toughened glass front give IK10 impact protection for busy public spaces. Controls and inputs are hidden so passers-by cannot tamper with them.


Full Array Local Dimming*
Local dimming adjusts brightness across zones of the screen for stronger contrast, deeper blacks and vibrant highlights, while cutting power use and heat output for a longer panel life. *49", 55" and 65" models; the 55" 4K Elite has 576 zones.

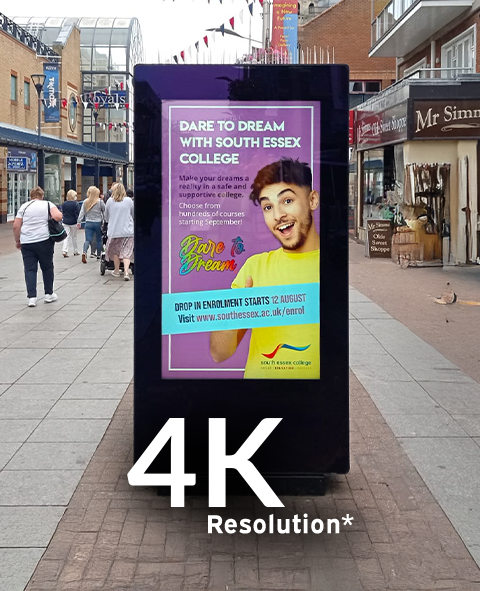

4K Resolution on 49" and Larger
The 49", 55" and 65" models use 4K panels with a 4K Android media player (Android 10 on the 49" and 65", Android 14 on the 55" 4K Elite) for a sharp, detailed picture and crisp touch content. The 43" is Full HD in portrait.

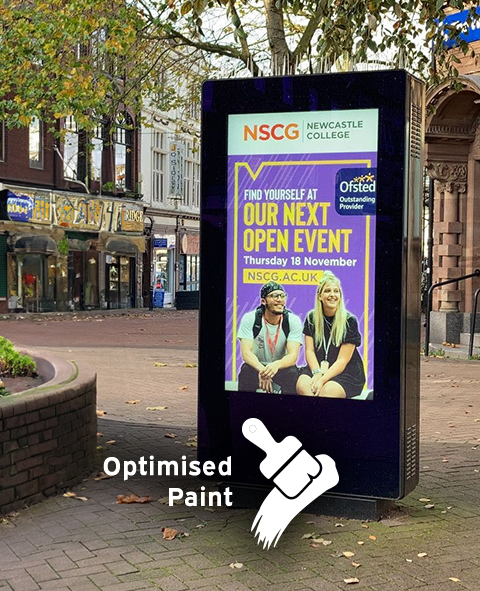

Anti-Reflective Glass & Enhanced Paint
The specially treated front glass diffuses direct sunlight for clear viewing in bright weather, and an improved industrial-grade paint finish keeps the totem looking professional in harsh outdoor conditions.
Advanced Temperature Control
An internal airflow system keeps the screen at its optimal temperature whatever the weather, maximising its lifespan. Built-in air conditioning can be tailored to suit any climate, with operation from -20°C to 50°C (-30°C to 50°C on the 55" 4K Elite).


Easy Maintenance & Internal Locker
The screen opens up for straightforward servicing, and a secure lockable compartment fits a small PC or media player connected through HDMI. The base is removable for easier installation.
Android Media Player & Network Upgrade
A built-in Android media player runs your touch content and supports USB plug and play. An optional network upgrade lets you update screens remotely over Wi-Fi, LAN or 4G.

Sizes & Key Specifications
| Specification | 43" | 49" | 55" | 65" |
|---|---|---|---|---|
| Model | OT43E4-T2 | OT49F-T2 | OTT55UHD10 | OT65F-T2 |
| Resolution | 1080 × 1920 (Full HD) | 3840 × 2160 (4K) | 3840 × 2160 (4K) | 3840 × 2160 (4K) |
| Brightness | 2,500cd/m² | 2,500cd/m² | 3,500cd/m² | 2,500cd/m² |
| Contrast | 8,000:1 | 1,200:1 | 1,100:1 | 1,400:1 |
| Touch | PCAP, 10 points | PCAP, 10 points | PCAP, 10 points | PCAP, 10 points |
| Local dimming | No | Yes | Yes, 576 zones | Yes |
| Enclosure | IP65, IK10 | IP65, IK10 | IP56, IK10 | IP65, IK10 |
| Display area | 942 × 529.7mm | 1072 × 603mm | 1209.6 × 680.4mm | 1428.5 × 803.5mm |
| Size, mm (H × W × D) | 1920 × 790 × 204 | 1940 × 870 × 180 | 2016 × 898.4 × 200 | 2235.3 × 1086 × 245 |
| Footprint, mm (W × D) | 809 × 500 | 890 × 500 | 903.4 × 483.4 | 1116 × 550 |
| Net weight | 150kg | 170kg | 178kg | 260kg |
| Power | TBC | 380W average | 606W maximum | 550W average |
| Video inputs | HDMI, VGA | 2 × HDMI | 1 × HDMI 2.0 | 2 × HDMI |
| Android player | 5.1.1, Full HD | 10, 4K | 14, 4K | 10, 4K |
See the Specifications tab for full technical details and the Downloads tab for the touch screen spec sheet for each size and the installation guide. Network upgrade, 4G module, camera and custom vinyl wraps available: call 0116 318 4182 for advice.
Warranty & Support

Every size comes with our 3 Year UK On-Site Warranty: repaired or replaced with minimal downtime (terms and conditions apply), plus lifetime technical support. Supplied with a remote control and power cable.
